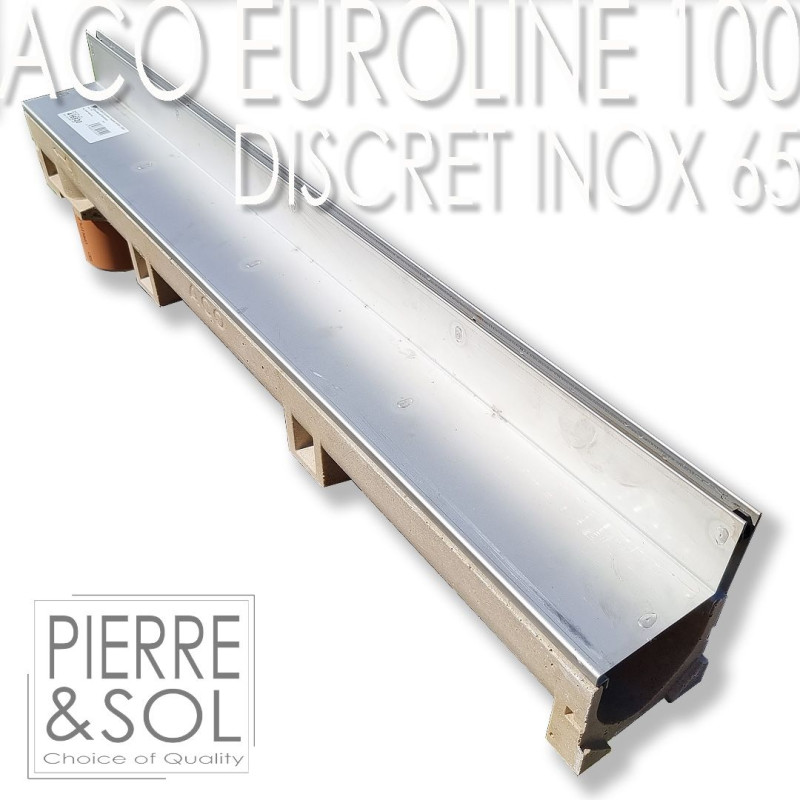

Slotted channel - Euroline Discret Inox - ACO

Slotted channel - Euroline Discret Inox - ACO

In modern garden designs , linear, fine-slotted drainage is increasingly being opted for instead of the classic grid. ACO launched this trend in the world and optimizes its offer for ease of installation and use.

The Euroline Discreet quickly became the best-selling slotted drainage system , thanks to the following features :

• Quality .
• Advantageous price .
• Simplicity thanks to the compact offer of parts and accessories.

4 grid models allow you to create discreet linear drainage :

• A riser (100 cm) in galvanized steel with a side slot.
• An extension (85 cm) with side slot and an access element (15 cm) in galvanized steel.
• A riser (85 cm) with a side slot and an interior corner (15 cm).
• A riser (85 cm) with a side slot and an outside corner (15 cm).

The riser and the access element are two separate elements . The access element can be placed either on the left or on the right of the gutter to then integrate the assembly on the left or on the right of the line of the gutter, often above the connection to the evacuation pipe . It is also possible to integrate a channel with access element at both ends of the channel line to simplify maintenance.

The cover of the access element additionally takes into account your aesthetic choices . You can opt for the solid cover or turn it over to tile it with the coating of your choice.

Benefits :

• Finely slotted riser for discreet linear drainage; slot with an internal width of 15 mm and an external width of 21 mm.
• Easy to maintain thanks to the access element.
• Resistance to vandalism thanks to total integration.
• Applicable anywhere in the garden: from the terrace to the driveway, in front of the garage… Can be used as a border.
• Perfect integration with all types of flooring thanks to three possible slot heights.
• The folded edges of the slot give it an additional aesthetic and robust character. And it shows!
• Resistance class A 15 kN (Places accessible to pedestrians and cyclists).

Material :

Polyester concrete is a conglomerate of quartz aggregates (grain from 0 to 8 mm) bound by polyester resin.
Polyester concrete is resistant to mineral acids, road salts, mineral oils, heating oil, gasoline and most acids and bases.

Raising in AISI 304 stainless steel, with longitudinal and lateral slot, placed on the channel.

The slot is equipped with 5 bars guaranteeing its stability. The top of these bars is 1.1 cm lower than the top of the riser. The extension is suitable for resistance class A 15 kN (Places accessible to pedestrians and cyclists).

Technical data :

Euroline 60 model:

• Height without grid: 55 mm
• Height with grid: 10.8 cm, 13.5 cm or 17.5 cm

Euroline 100 model:

• Height without grid: 95 mm
• Height with grid: 15 cm, 17.5 cm or 21.5 cm

Gate :

• Length: 100cm
• Free height of the slot: 4 cm, 6.5 cm or 10.5 cm
• Entrance section: 93cm²/m
• Resistance class: A 15 kN (Places accessible to pedestrians and cyclists).

Choose your model based on the desired flow rate.

The desired flow rate depends on the rainfall, the area of the area to be drained and the drainage capacity of the soil. Depending on the desired flow, the outlet placed at the end or below the gutter must be sized accordingly. The Euroline 100 having a higher volume of water retention.

• Interior width: 9.8 cm
• Exterior width: 11.8 cm

Attention :

• The body of these channels being made of polymer concrete, they are quite fragile. We therefore authorize ourselves to decline any order that is too small or the risk of breakage is too high.
• Any order with complicated logistics or too small a quantity can be picked up directly by the customer.
• If however, a breakage occurs during the transport of the gutters, when it is a simple breakage, it is possible to glue the gutter.
