The 10 cm square aluminum infiltration channel - AquaDrain - LINE ECO is a robust, elegant and stylish drainage and infiltration solution - Width 100 mm and Height 100 mm or 50 mm.

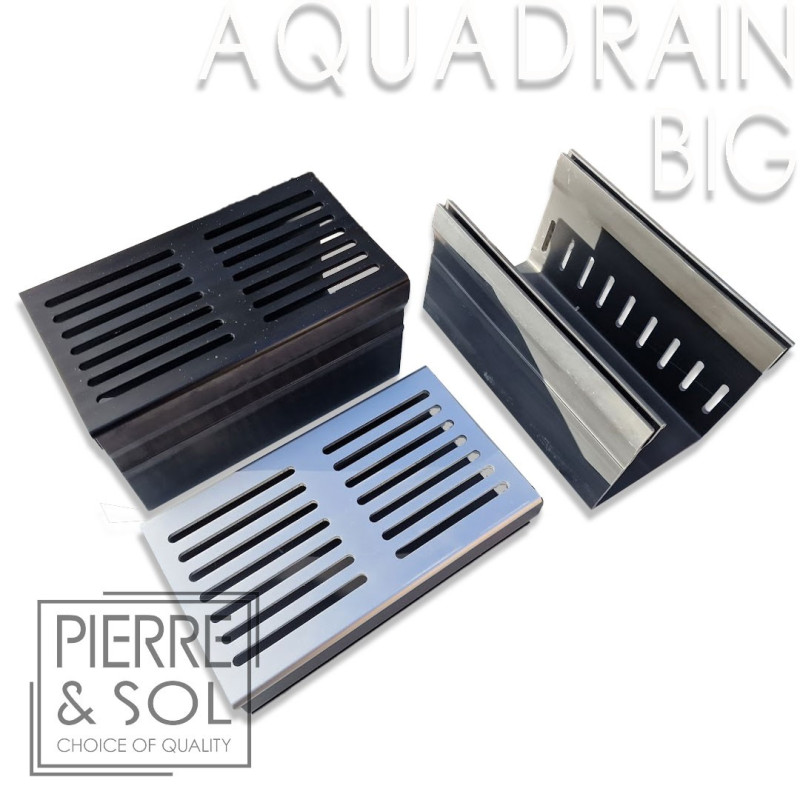

The sample includes:

• 1 BIG channel - Height 100 mm.
• 1 BIG channel with side slot on one side - Height 100 mm.
• 1 flat channel - Height 50 mm
• 2 channel grates: Aluminum and black aluminum .

The 10 cm square aluminum infiltration channel - AquaDrain - 100/100 - LINE ECO is a robust channel made up of a synthetic material channel (PVC) and a designer aluminum grid.

This gutter is installed around the home, where there is no car traffic.

Capacity of 10 liters per linear meter.

It exists in a simple version, PLUS 1, PLUS 2 or PLUS 3. The PLUS versions are pierced with slots on 1, 2 or 3 sides to facilitate and accelerate drainage and infiltration.
In the sample there is the PLUS 1 version with the slots on one side only.

This gutter is installed around the home, where there is no car traffic. You can evacuate water from the gutter, for example, to the sewer or an infiltration system, using a side or bottom drain port. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. Pierre et Sol offers Gully infiltration sumps or others.

This channel has the option of a side and bottom outlet in addition to the pre-existing slots on the PVC channel (on PLUS 1, PLUS 2 and PLUS 3 models). The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.

For the lower outlet, drill a Ø 75 mm hole in the bottom of the gutter using a hole saw.

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Lightweight channel element made of synthetic material.
• Easy to install.
• Easily removable grill.
• Available in two colors.
• Only 10 cm exterior width.
• Resistance class A 15 (pedestrian only)

Advice :

• If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire
• If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
• If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.

Attention :

Avoid odors by installing a siphon at the sewer connection.

Accessories available separately, see this page for BIG gutters - Height 100 mm and this page for flat gutters - Height 50 mm.

Sample request and delivery:

• PIERRE & SOL is organized to offer you a complete service and sound advice, so we are aware that it is not easy to choose based on photos and images.
• To help you in your choices, we receive sample requests every day and drop them off every week in the mail.
• We can therefore send you samples of our products, subject to a contribution to the costs, in fact, the packaging, movement and postal costs of heavy materials must be financed in order to avoid abuse.
• These costs are deducted when purchasing our products, even if they are not the same products as the sample sent, within the limit of one refund per product purchased with a maximum of 2% of the amount excluding tax. of the order.
  With a minimum reimbursement of €5.
  Below this amount, reimbursement will be made to a Paypal account or in a voucher for a period of 1 year.
• Professionals and businesses will understand that we must apply the same procedure for their respective requests.
