Flat channel H 5 cm Aluminum grid - AquaDrain - FLAT - LINE ECO
The 5 cm flat channel AquaDrain FLAT LINE ECO is an elegant and design solution with very low drainage height - Height 50 mm .
Capacity of 5 liters per linear meter.
Other color available:
Complete range of channels including: 1 M sections, angle, T-piece,.... (2M on order)
See the finishing or branching accessories to see here .
Volume discounts
| Quantity | You Save | Unit price |
|---|---|---|
| 5 | 3 % | €60.46 |
| 15 | 6 % | €58.59 |
| 30 | 10 % | €56.10 |
| 50 | 13 % | €54.23 |
| 100 | 17.5 % | €51.42 |
MKD 200-2020
9145385999929

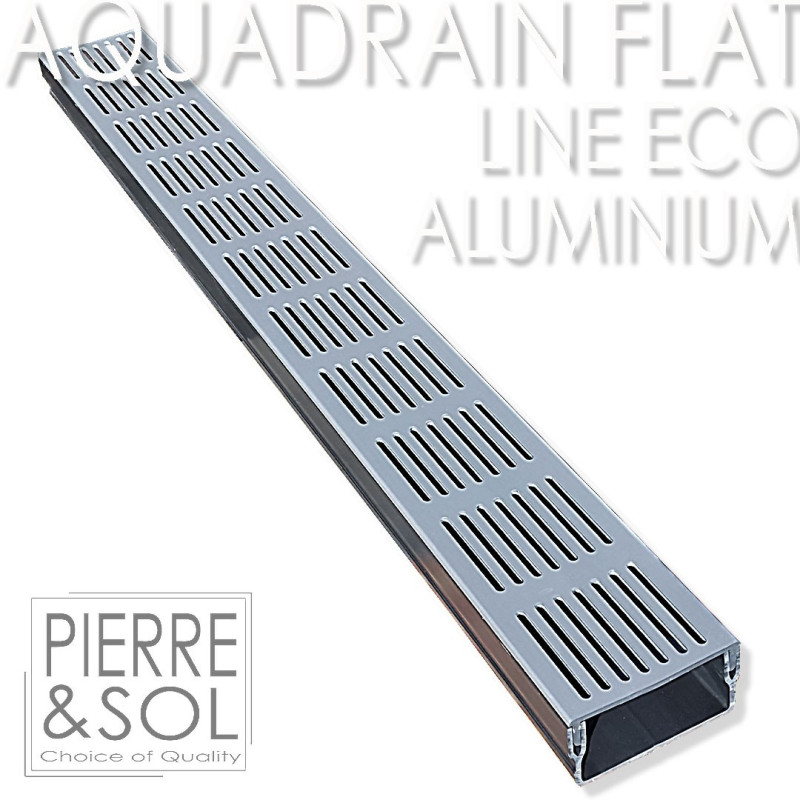

Flat channel H 5 cm with aluminum grid - AquaDrain - FLAT - LINE ECO
The AquaDrain FLAT ECO LINE is a very low height drain (5cm) made up of a synthetic material channel (PVC) and a 10 cm wide designer aluminum grid.
This gutter is installed around the home, where there is no car traffic.
Capacity of 5 liters per linear meter.
You can evacuate water from the gutter, for example, to the sewer or an infiltration system, using a side or bottom drain port. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. Pierre et Sol offers Gully infiltration sumps or others.
This gutter has the option of a side and bottom outlet. The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.
For the lower outlet, drill a Ø75 mm hole in the bottom of the gutter using a hole saw.
Benefits :
- A discreet and elegant drainage solution for the terrace.
- Lightweight channel element made of synthetic material.
- Easy to install.
- Easily removable grill.
- Available in three colors.
- 10 cm exterior width.
- Only 5 cm in height.
- Resistance class A 15 (pedestrian only).
Dimensions:
Gutter:
- Lengths: 1 m (2 m to order)
- Exterior width: 10.5 cm
- Height: 5.2cm
Corner element:
- Length: 19.7 cm
- Exterior width: 10.5 cm
- Height: 5.2cm
T-piece:
- Length: cm / cm
- Exterior width: 10 cm
- Height: 5.2cm
Available colors:
- Aluminum.
- Black Aluminum .
Advice :
- If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire
- If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
- If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.
Attention :
Avoid odors by installing a siphon at the sewer connection.
Accessories available separately, see on this page .
MKD 200-2020
119 Items
Data sheet
- Signal word
- As of Q1 2023, no signal word is listed for this item when last checked. Please check the latest update of the technical data sheet issued by the manufacturer.
- Hazard statements
- As of Q1 2023, no hazard statements are listed for this item when last checked. Please check the latest update of the technical data sheet issued by the manufacturer.
- Hazard pictogram
Specific References
- EAN13
- 9145385999929
