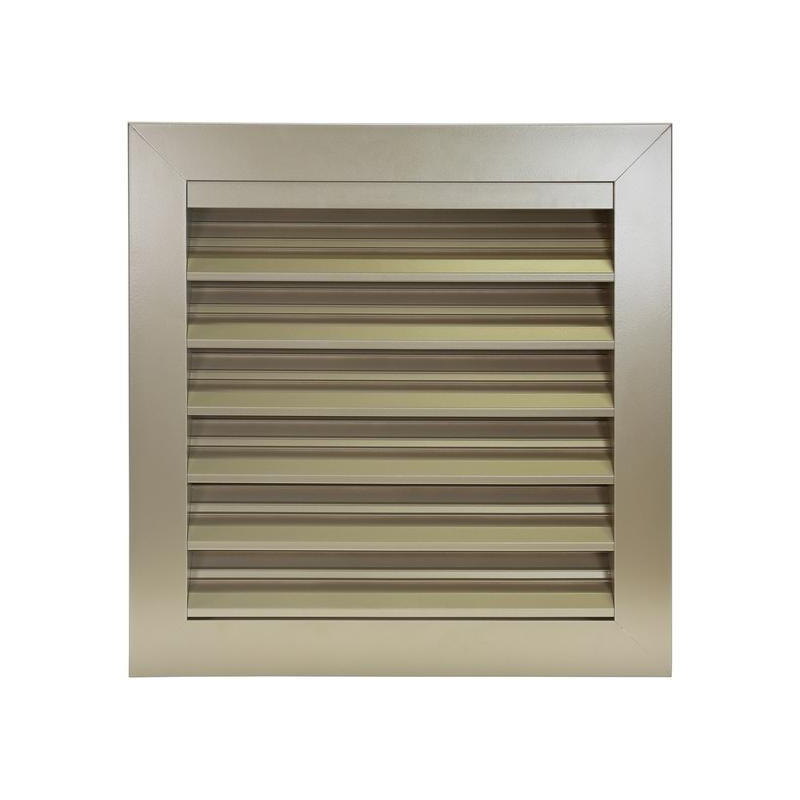

Renson 475 GL - Frame grille with water resistance CUSTOM - Renson

Renson 475 GL - Frame grille with water resistance CUSTOM - Renson

CUSTOM-MADE wall ventilation grille ideal for extraction applications with excellent water resistance.
Grille to be placed in the frame.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mosquito net - 2.3 x 2.3 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
• Equipped as standard with a water recovery profile

Dimensions:

• Blade pitch: 75 mm
• Frame thickness: 24 mm (thicknesses from 8 to 50 mm on request)
• Minimum dimensions:
  – 475GL/24: 330 x 380 mm
  – 475GL/8-50: 330 x 395 mm
• Maximum dimensions: 4000 mm (L or H) with Smax = 3.5 m²
• Preferential height:
  – 475GL/24: (380 + multiple of 75) mm
  – 475GL/8-50: (395 + multiple of 75) mm
