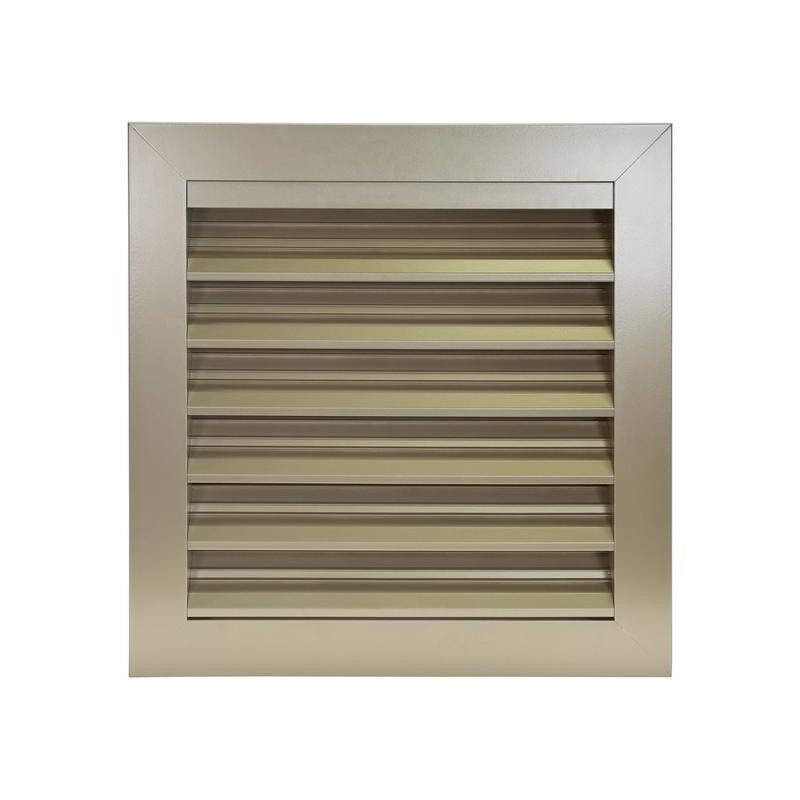

Renson 475 - CUSTOM wall grille with water resistance - Renson

Renson 475 - CUSTOM wall grille with water resistance - Renson

CUSTOMIZED type 475 recessed wall grille for industrial extraction applications which require excellent water resistance .

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mosquito net - 2.3 x 2.3 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
• Equipped as standard with a water recovery profile

Special applications:

1. Industrial applications for extraction that require excellent water resistance

Dimensions:

• Blade pitch: 75 mm
• Recessed depth: 82 mm
• Frame overlap: 50 mm
• Minimum dimensions: 230 x 295 mm
• Maximum dimensions: 4000 mm (L or H) with Smax = 3.5 m²
• Preferential height: (multiple of 75) + 295 mm
