Narrow channel 6 cm Aluminum grid - SLIMLINE - ACO
(4,8/5) out of 12 total ratings
The ACO Slimline is a DESIGN aluminum drainage solution used around the house.
Other colors:
There are also other very useful accessories for installing gutters or daily use :
If you want to order just the grid, go HERE !
Volume discounts
| Quantity | You Save | Unit price |
|---|---|---|
| 10 | 5 % | €35.45 |
| 36 | 8 % | €34.33 |
| 72 | 12 % | €32.84 |
ACO 19000
8718347910396

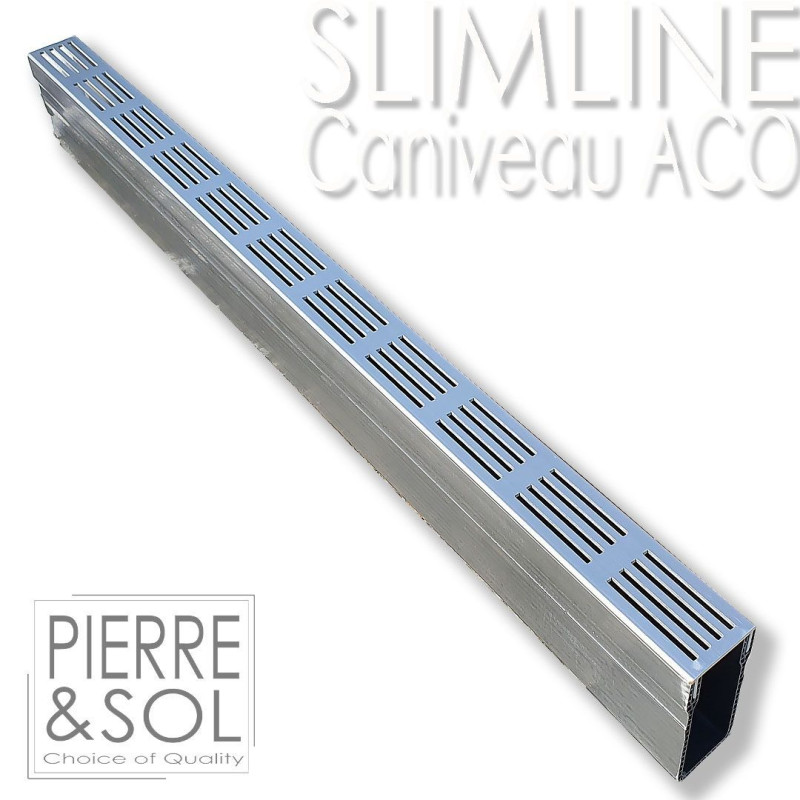

6 cm narrow aluminum channel - Slimline - ACO
The ACO Slimline is a drainage solution made up of plastic channel elements with an aluminum design grid.
The ACO Slimline is used around the house where there is no car traffic.
The first thing to do is to determine where the water needs to be drained. The possibilities are the sewer, the infiltration system, the green space (it's better), a ditch,...
The ACO Slimline has options for a 50mm diam side outlet or an 80mm diam bottom outlet.
The application of the ACO infiltration system can have the advantage of requiring only limited piping. In addition, in this way, rainwater is disconnected and infiltrated directly into the ground. The water balance of the soil will also improve.
Benefits :
- A discreet and elegant drainage solution for the terrace.
- Lightweight plastic channel element.
- Easy to install.
- Easily removable grid.
- Only 6 cm outside width.
- Resistance class A 15 (pedestrian only).
Dimensions:
Channel:
- Length: 1m
- Interior width: 4.6 cm
- Exterior width: 6 cm
- Height: 10cm
Corner element:
- Length: 15.9cm
- Interior width: 4.6 cm
- Exterior width: 6 cm
- Height: 10cm
Gate :
- Aluminum.
- Black aluminum .
- Corten steel .
Accessories available separately, to see on this page.
ACO 19000
921 Items
Specific References
- EAN13
- 8718347910396
Bon produit
Super produit, conforme à l'image. Arrivé en bon etat et rapidement.
By DUCHEMIN C. the 03/29/2023
Caniveau Etroit excellent produit
correspond à nos attentes, produit extrêmement bien emballé aucun risque de détérioration.
By françoise s. the 03/14/2023
Produit top et service idem
Juste incroyable: je lance une commande, je me trompe, je rappelle le lendemain, la modification est faite dans la foulée (avec le sourire) et le lendemain j'ai le produit chez moi. Emballage nickel, aucun risque d'avoir un produit abîmé. Et produit de très bonne qualité, fidèle au descriptif. Je recommande les yeux fermés !
By Louis M. the 12/01/2022
CANNIVEAU
Dommage qu'il n'y a pas de pente dans le caniveau obligeant a le monter avec une légère inclinaison ce qui rend la pose plus délicate et moins esthétique chris
By Christophe j. the 09/14/2022
Caniveau piscine
Conforme à la commande, solide, design, je recommande ce produit
By Jean L. the 05/02/2022
