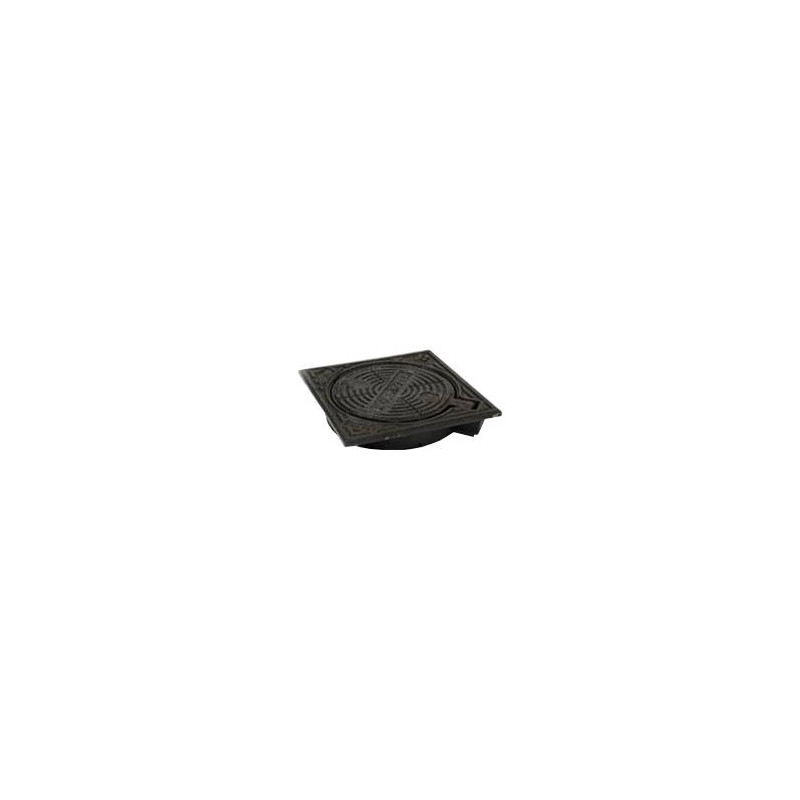

Regard de visite chambre de connexion maison B125 COPRO
      • Regard de visite chambre de connexion maison B125 COPRO

      Visit home connection room B125 COPRO

      Visit home connection room B125 COPRO. Available in 2 Dimensions

      Model:
      Dimensions:
      €217.28Tax Included
      DES STORA250DWA

      Visit home connection room B125 COPRO

      Cast iron look to easily access your drainage system. The cast iron look is available in two dimensions so that it can connect to a PVC pipe of 250mm or 315mm. A concrete base is available as an option for an easy pose of your cast iron visit look

      Benefits
      • Easy access for control and cleaning
      • Available in 2 Dimensions
      • 100% recyclable building material
      • Strength class B125 and COPRO standards
      • Available for stormwater or wastewater
      • Hinge-mounted lid

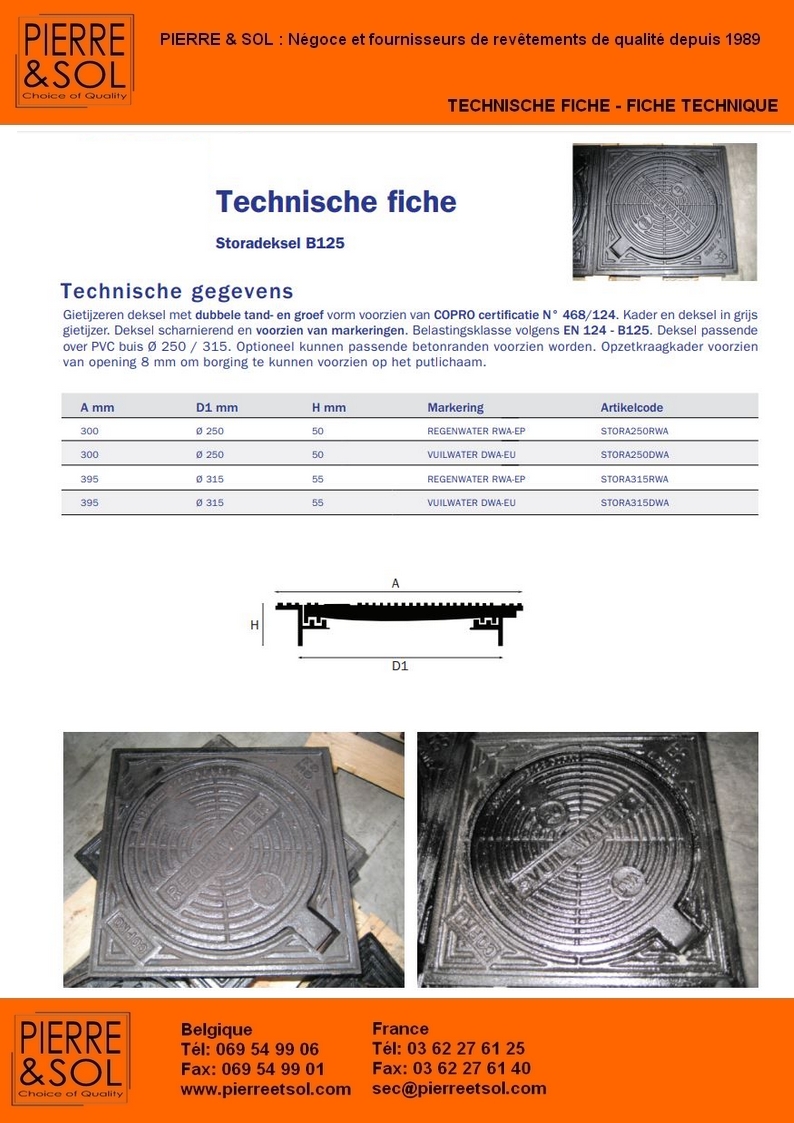

      Table of external dimensions visit look

      Ref. Article

       Outdoor Dimensions

       Connection

       Heights

       loaded down
      STORA250 300x300mm Ø250mm 50mm B125
      STORA315 395x395mm Ø315mm 55mm B125
      Table of exterior dimensions concrete base

      Ref. Article

       Outdoor Dimensions

          Compatibility

       Heights

       loaded down
      PBR250B 354x354mm STORA250 look 100mm B125
      PBR315B 448x448mm STORA315 look 100mm B125
      Defining load resistance classes
      Classe résistance A15

      Places only accessible to pedestrians and cyclists.

      Break load: 15 kN/m2 or 1.5 Tonnes/m2
      Résistance charge B125

      Sidewalks, pedestrian areas, private parking lots and multi-storey car parking. V max: 20 km/h

      Break load: 125 kN/m2 or 12.5 Tonnes/m2
      Résistance charge C250

      Pedestrian streets and car parks. Places for cars and vans travelling at moderate speeds.

      Break load: 250 kN/m2 or 25 tonnes/m2
      Résistance charge D400

      Traffic lanes and parking areas for all types of road vehicles. V max: 50 km/h

      Break load: 400 kN/m2 or 40 Tonnes/m2
      Résistance charge E600

      Areas subject to high aasole loads such as ports and industrial areas. V max - 50 km/h

      Break load: 600 kN/m2 or 60 tonnes/m2
      Résistance charge F900

      Areas subject to particularly high aaisle loads such as aircraft runways or industrial intensive passing areas.

      Break load: 900 kN/m2 or 90 Tonnes/m2
      DES STORA250DWA
