      Cast iron hydraulic cover - RecTop D 400 kN - ACO
      • Cast iron hydraulic cover - RecTop D 400 kN - ACO

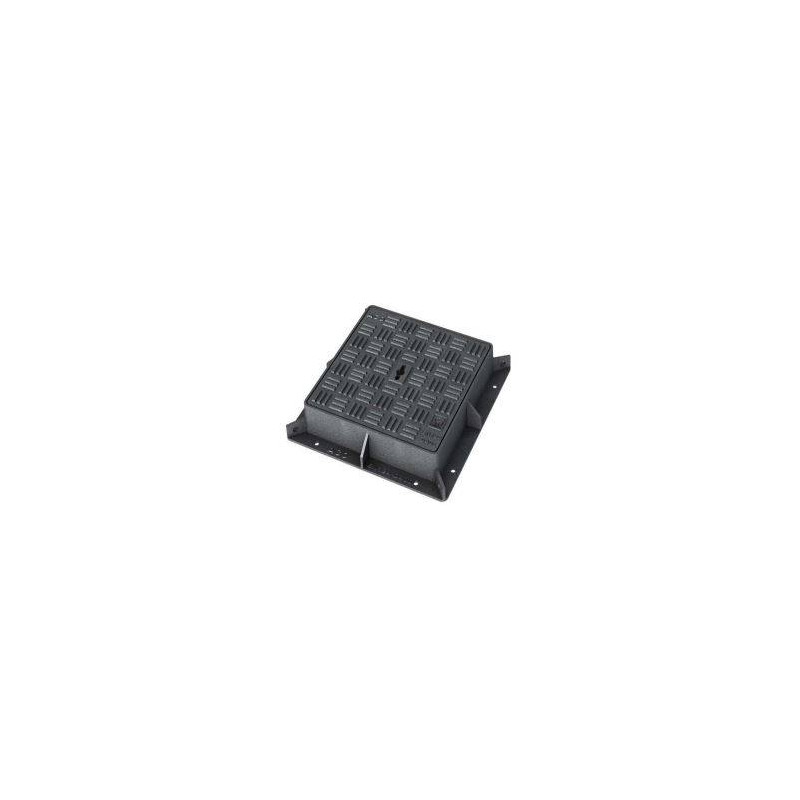

      Cast iron hydraulic cover - RecTop D 400 kN - ACO

      RecTop type cast iron cover with hydraulic closure ; frame and cover in GGG 50 ductile iron , embossed, non-slip finish; with black water-based protective layer.

      Working load class D 400 according to EN 124, certified by the approved inspection body MPA (University of Kaiserslautern).

      Outside dimensions:
      €147.12Tax Included
      ACO 1201639
      9145385950036

      Cast iron hydraulic cover - RecTop D 400 kN - ACO

      RecTop type cast iron cover with hydraulic closure ; frame and cover in GGG 50 ductile iron , embossed, non-slip finish; with black water-based protective layer.

      Working load class D 400 according to EN 124, certified by the approved inspection body MPA (University of Kaiserslautern).

      • Cast iron covers of the RecTop type are considered entry-level models.
      • They are used for paved or asphalted surfaces of a more public and industrial nature, such as market squares, parking lots, docks, etc.
      • The frame and cover of this lid are made of ductile iron, provided with a black water-based protective coating.
      • The covers are therefore easy to handle during installation and user-friendly when opening and closing.
      Reference Frame dimension (mm) Free opening (mm) Frame height (mm) Weight (kg) Resistance class
      1201639 500x500 400x400 75 29.0 D400
      1201640 600x600 500x500 75 29.0 D400
      1201641 700x700 600x600 75 58.0 D400
      1201642 800x800 700x700 75 77.0 D400
      1201643 900x900 800x800 75 98.0 D400
      1201644 1000x1000 900x900 75 133.0 D400
      1201645 1100x1100 1000x1000 100 160.0 D400
      1201646 1200x1200 1100x1100 100 198.0 D400
      ACO
      ACO 1201639

      Specific References

      EAN13
      9145385950036

      Download

      ACO RecTop D 400

      Technical datasheet

      Download (156.66KB)

      You might also like

      Cast iron hydraulic cover - RecTop B 125 kN - ACO
          Cast iron hydraulic cover - RecTop B 125 kN - ACO
          €36.00

          Quelles sont les déclinaisons et prix pour Cast iron hydraulic cover - RecTop D 400 kN - ACO ?

          Cast iron hydraulic cover - RecTop D 400 kN - ACO - Déclinaisons, dimensions, prix, références
          Variante Outside dimensions Prix HT Prix TTC Réference EAN-13
          Cast iron hydraulic cover - RecTop D 400 kN 50 x 50 cm €122.60 €147.12 ACO 1201639 9145385950036
          Cast iron hydraulic cover - RecTop D 400 kN 60 x 60 cm €173.70 €208.44 ACO 1201640 9145385950043
          Cast iron hydraulic cover - RecTop D 400 kN 70 x 70 cm €233.00 €279.60 ACO 1201641 9145385950050
          Cast iron hydraulic cover - RecTop D 400 kN 80 x 80 cm €306.60 €367.92 ACO 1201642 9145385950067
          Cast iron hydraulic cover - RecTop D 400 kN 90 x 90 cm €396.50 €475.80 ACO 1201643 9145385950074
          Cast iron hydraulic cover - RecTop D 400 kN 100 x 100 cm €568.20 €681.84 ACO 1201644 9145385950081
          Cast iron hydraulic cover - RecTop D 400 kN 110 x 110 cm €695.00 €834.00 ACO 1201645 9145385950098
