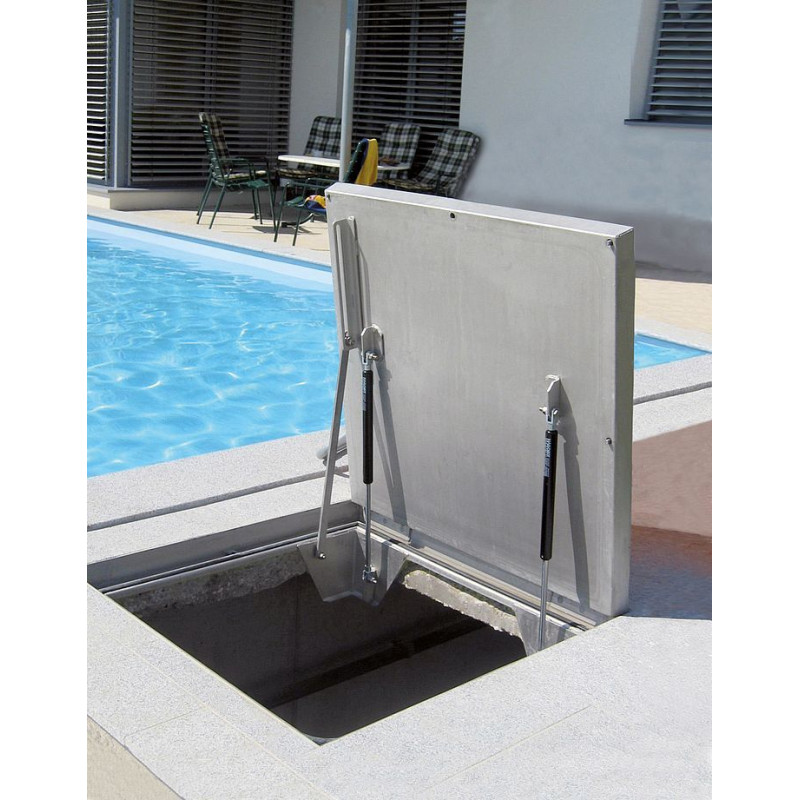

Hot-dip galvanized steel tile cover with assisted opening thanks to a hinge and a gas cylinder. It is almost waterproof and odor-proof.

Characteristics:

• The edge of the manhole and lid are made of cold-formed steel sheet 2 mm thick.
• The lid is made of hot-dip galvanized steel.
• Resistance class: 125 kN according to EN 124.
• Flush-mounted height 75 mm.
• Inner height of the lid: 50 mm.
• Interior provided with a welded frame in cross in twisted steel wire with a diameter of 8 resp. 12mm.
• Almost waterproof and odorproof.
• Equipped with a high quality chemical resistant seal.
• Effortless opening with one hand through the use of a stainless steel hinge and gas cylinder.
• With fallback protection.
• The hinge side of the hatch is equipped with 2 additional fixed U-anchors with mounting hole on the outside.

Installation:

One once the frame has been installed and the concrete has completely hardened in the hatch, the hatch can be opened carefully (max. 85° opening angle) and the gas cylinders must then be mounted.

Size:

Number of cylinders per lid:

• BV-GD 66 - 735 x 751.5 mm: 1 gas cylinder.
• BV-GD 86 - 935 x 751.5 mm: 2 gas cylinders.
• BV-GD 88 - 935 x 951.5 mm: 2 gas cylinders.
• BV-GD 106 - 1135 x 751.5 mm: 2 gas cylinders.
• BV-GD 110 - 1135 x 1151.5 mm: 2 gas cylinders.
