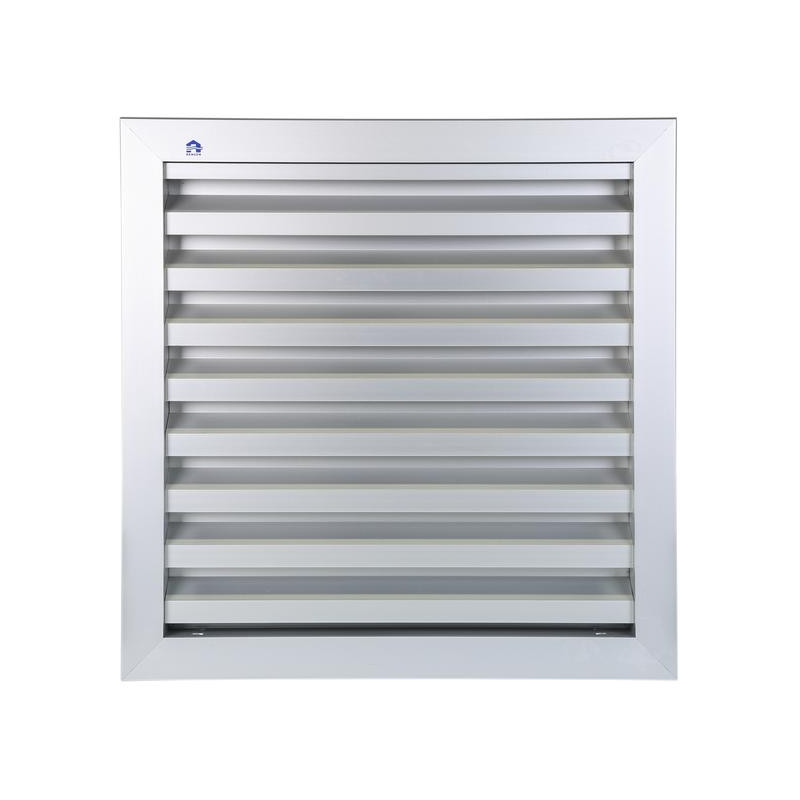

      Renson 411 - Wall grille normal version - Renson

      Aluminium ventilation grille for installation with 50% free area and watertightness class A.

      Color:
      format:
      €55.49Tax Included
      REN 00041197
      5413470255811

      Renson 411 - Wall grille normal version - Renson

      Recessed aluminum ventilation grille with 50% free surface and class A watertightness .

      Material :

      • Made of Alu AlMgSi 0.5 profiles (according to EN 12020-2)
      • Standard: 304 stainless steel screen - 2.3 x 2.3 mm
      • Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

      Dimensions:

      • Blade pitch: 33 mm
      • Recessed depth: 29 mm
      • Frame overlap: 21 mm
      • Minimum dimensions: 100 x 100 mm

      Fixation :

      • Doguets are included.
      • For grilles larger than 3 m², a reinforcement structure must be provided behind the grille.

      Special applications:

      • Any application without specific requirements.
      Dimensions (mm) Flow rate under 2 Pa (m³/h)
      142x142 23
      200x200 50
      300x200 77
      300x300 118
      400x200 103
      400x300 159
      400x400 215
      500x300 201
      500x400 271
      500x500 342
      600x300 242
      600x400 327
      600x600 four hundred ninety seven
      700x700 682
      1000x500 694
      1000x1000 1409
      Renson
      REN 00041197
      0 Items

      Specific References

      EAN13
      5413470255811

      Customers who bought this product also bought:

      Quelles sont les déclinaisons et prix pour Renson 411 - Wall grille normal version - Renson ?

      Renson 411 - Wall grille normal version - Renson - Déclinaisons, dimensions, prix, références
      Variante format Color Prix HT Prix TTC Réference EAN-13
      Renson 411 - Wall grille normal version 200 x 200 mm RAL 9005 - Deep black €67.90 €81.48 REN 00411229 5413470295978
      Renson 411 - Wall grille normal version 200 x 200 mm RAL 7016 - Anthracite €67.90 €81.48 REN 00411223 5413470299358
      Renson 411 - Wall grille normal version 200 x 200 mm White €67.90 €81.48 REN 00411226 5413470255750
      Renson 411 - Wall grille normal version 400 x 200 mm White €81.73 €98.08 REN 00411426 5413470255323
      Renson 411 - Wall grille normal version 400 x 400 mm White €119.84 €143.81 REN 00411446 5413470255361
      Renson 411 - Wall grille normal version 400 x 300 mm White €101.00 €121.20 REN 00411436 5413470255347
      Renson 411 - Wall grille normal version 142 x 142 mm Natural €46.24 €55.49 REN 00041197 5413470255811
      Renson 411 - Wall grille normal version 200 x 200 mm Natural €56.43 €67.72 REN 00041122 5413470255712
      Renson 411 - Wall grille normal version 300 x 200 mm Natural €62.02 €74.42 REN 00041132 5413470254982
      Renson 411 - Wall grille normal version 300 x 300 mm Natural €74.55 €89.46 REN 00041133 5413470254999
      Renson 411 - Wall grille normal version 400 x 200 mm Natural €68.08 €81.70 REN 00041142 5413470255002
      Renson 411 - Wall grille normal version 400 x 300 mm Natural €84.02 €100.82 REN 00041143 5413470255019
      Renson 411 - Wall grille normal version 400 x 400 mm Natural €99.68 €119.62 REN 00041144 5413470255026
      Renson 411 - Wall grille normal version 500 x 300 mm Natural €93.34 €112.01 REN 00041153 5413470255033
      Renson 411 - Wall grille normal version 500 x 400 mm Natural €111.52 €133.82 REN 00041154 5413470255040
      Renson 411 - Wall grille normal version 500 x 500 mm Natural €130.02 €156.02 REN 00041155 5413470255057
      Renson 411 - Wall grille normal version 600 x 300 mm Natural €102.42 €122.90 REN 00041163 5413470255064
      Renson 411 - Wall grille normal version 600 x 400 mm Natural €123.47 €148.16 REN 00041164 5413470255071
      Renson 411 - Wall grille normal version 600 x 600 mm Natural €165.04 €198.05 REN 00041166 5413470255088
      Renson 411 - Wall grille normal version 700 x 700 mm Natural €205.01 €246.01 REN 00041177 5413470255125
      Renson 411 - Wall grille normal version 1000 x 500 mm Natural €272.35 €326.82 REN 00411105 5413470255224
      Renson 411 - Wall grille normal version 1000 x 1000 mm Natural €474.47 €569.36 REN 00041111 5413470254968
