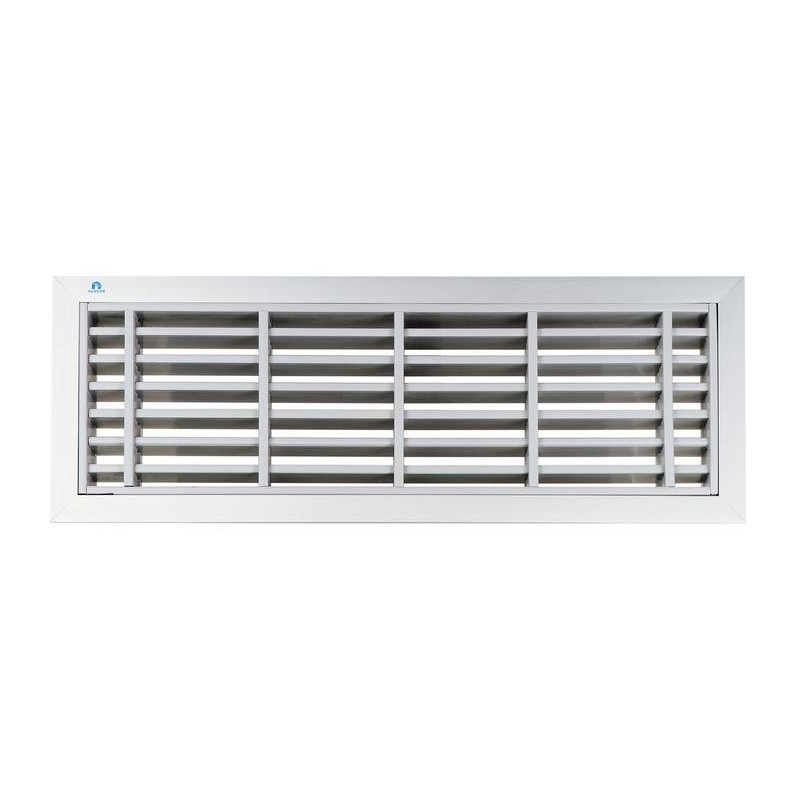

Renson 466 - Firestop grille with horizontal blades CUSTOM DESIGN - Renson

Renson 466 - Firestop grille with horizontal blades CUSTOM DESIGN - Renson

The 466 TAILORED fire grille is made up of Palusol slats which swell at temperatures above 120°C.

• As a result, ventilation between rooms is interrupted.
• The grille acts as a static fire damper for 60 minutes.
• Visibility is possible.
• Suitable for indoor use only.
• Blade color: gray

Material :

Blades made of synthetic sheaths, filled with intumescent material (PALUSOL) with aluminum outer frame and finish: natural anodized (20 microns)

Features :

Closing is done by inflating the blades at a temperature of 120°C.
The grille operates as a static fire damper for 60 minutes.

Dimensions:

• Maximum dimensions: 600 x 400 mm
• Round grilles available on request
• 466/2: min. door thickness. 45mm – max. 55mm
• Minimum distance between 2 grids: 20 cm
• Counter-frame for a thickness of 55 to 80 mm
