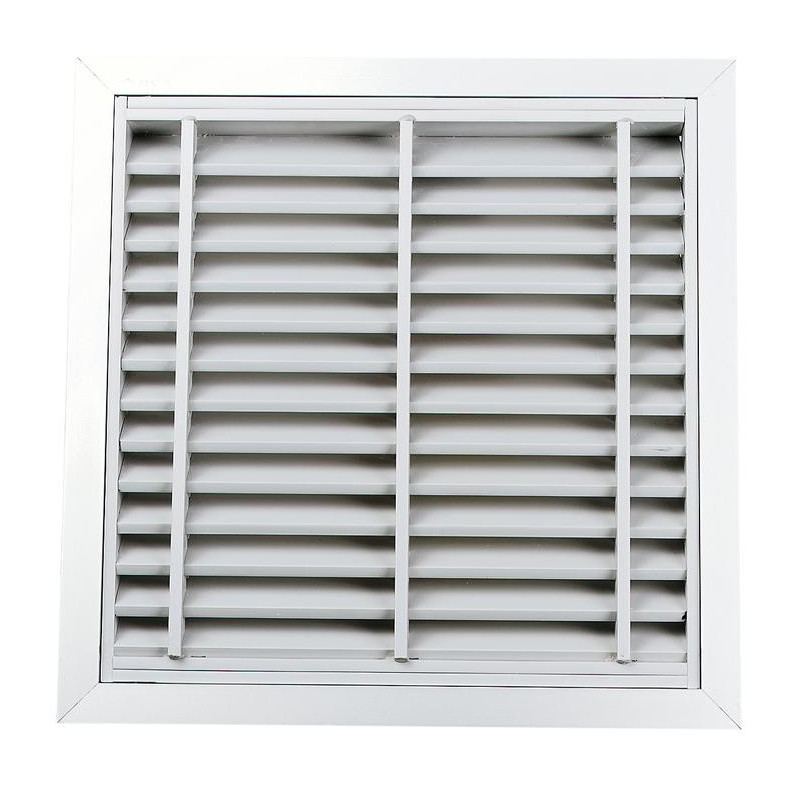

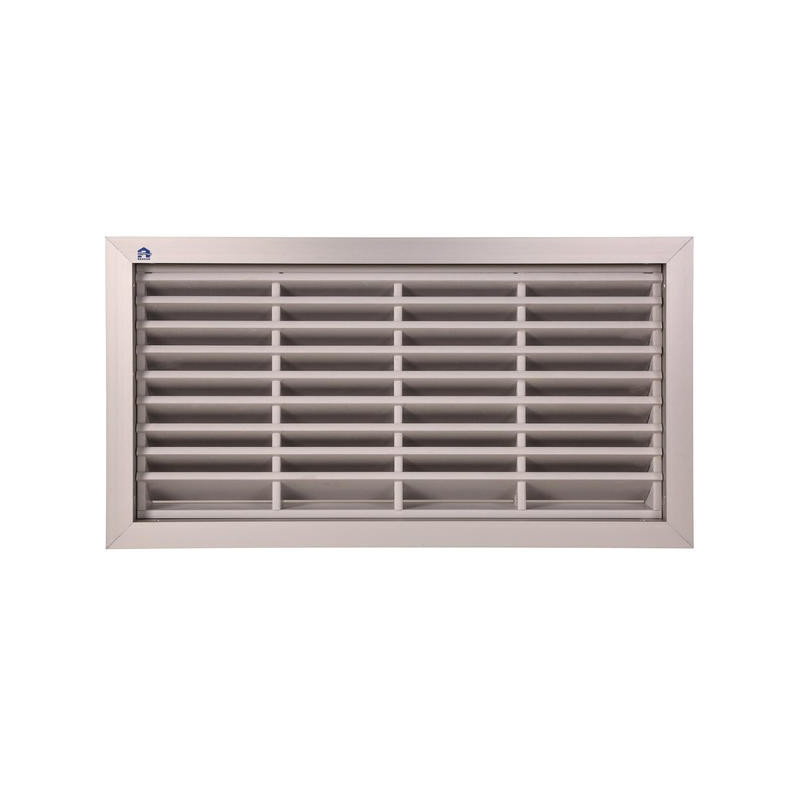

      Renson 465 - Fire resistant grille with inclined blades - Renson
      • Renson 465 - Fire resistant grille with inclined blades - Renson
      • Renson 465 - Fire resistant grille with inclined blades - Renson

      Renson 465 - Fire resistant grille with inclined blades - Renson

      The 465 fire protection grille consists of Palusol blades that swell at temperatures above 120°C.

      format:
      REN 00465122
      5413470251929

      Renson 465 - Fire resistant grille with inclined blades - Renson

      The 465 fire grille is made up of Palusol slats which swell in the event of temperatures above 120°C .

      • Due to this, the ventilation between the rooms is interrupted.
      • The grid acts as a static fire damper for 60 minutes.
      • Angled blades prevent visibility.
      • Only suitable for indoor use.

      Material :

      • Blades made of synthetic sheaths, filled with intumescent material (PALUSOL)
      • Aluminum outer frame
      • Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
      • Blade color: gray

      Features :

      Closing is done by inflating the blades at a temperature of 120°C.
      The grate operates as a static fire damper for 60 minutes.

      Dimensions:

      • Maximum dimensions: 500 x 200 mm
      • Grille 465/2 (with counter frame for 55 to 80 mm thickness): door thickness min. 45 mm - max. 55 mm
      • Minimum distance between 2 grilles: 20 cm
      Dimensions (mm) Flow rate under 2 Pa (m³/h)
      200x200 82
      300x300 185
      400x200 164
      500x200 205/td>
      Renson
      REN 00465122

      Specific References

      EAN13
      5413470251929

      Quelles sont les déclinaisons et prix pour Renson 465 - Fire resistant grille with inclined blades - Renson ?

      Renson 465 - Fire resistant grille with inclined blades - Renson - Déclinaisons, dimensions, prix, références
      Variante format Prix HT Prix TTC Réference EAN-13 Stock* disponible
      Renson 465 - Fire resistant grille with inclined blades 200 x 200 mm €340.31 €408.37 REN 00465122 5413470251929 Arrivage
      Renson 465 - Fire resistant grille with inclined blades 300 x 300 mm €472.05 €566.46 REN 00465133 5413470251936 Arrivage
      Renson 465 - Fire resistant grille with inclined blades 400 x 200 mm €446.48 €535.78 REN 00465142 5413470251943 Arrivage
      Renson 465 - Fire resistant grille with inclined blades 500 x 200 mm €499.55 €599.46 REN 00465152 5413470251950 Arrivage
      Renson 465 - Fire resistant grille with inclined blades 465/2 - With frame and counter frame - 400 x 200 mm €573.97 €688.77 REN 00465242 5413470251967 Arrivage
      *Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
