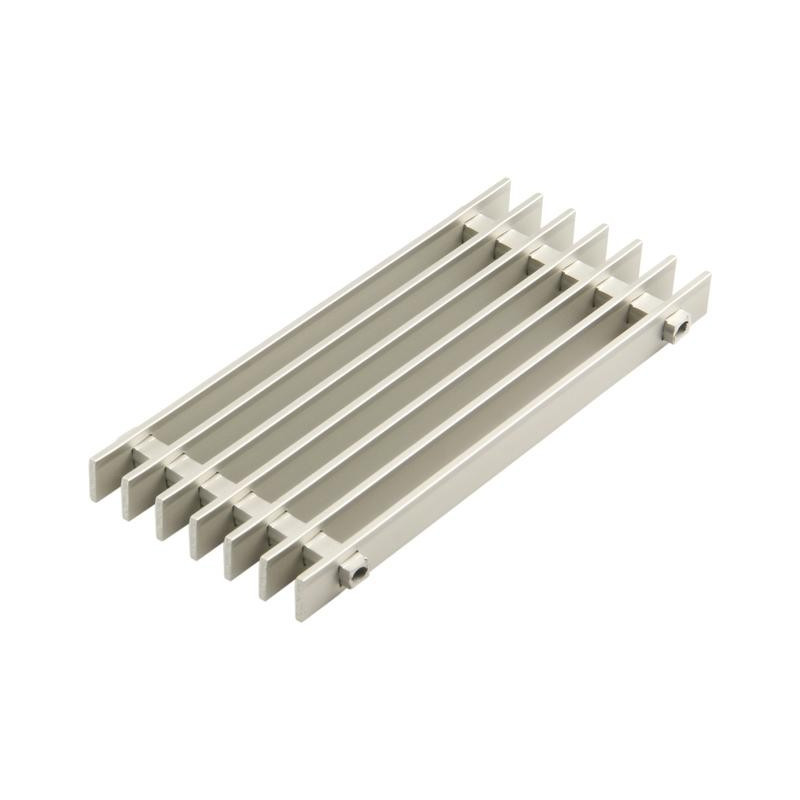

Renson 392 - Lightweight CUSTOM radiator grille - Renson

Renson 392 - Lightweight CUSTOM radiator grille - Renson

CUSTOM-MADE ventilation radiator cover grille , lightweight, does not support pedestrian traffic and is used for radiator casings .

Material :

• Made of Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
  Note: does not support pedestrian crossing

Attachment and options:

1. Without fixing
2. Frame without cover

Special application:

Radiator casing

Dimensions:

• Space between blades: 10 mm
• Grid profiles: 16 x 3 mm
• 392/2 without frame:
  Radiator cover length: min. 130 mm - max. 3500 mm (from 1600 mm more grid parts)
  Radiator cover width: min. 55mm - max. 311mm
• 392/3:
  Length per grid part: min. 120mm - max. 1600mm
  Width per grid part: min. 45mm - max. 300mm
• Useful opening = length and width – 50 mm
• Tilt: 15°
• Blades in longitudinal direction
