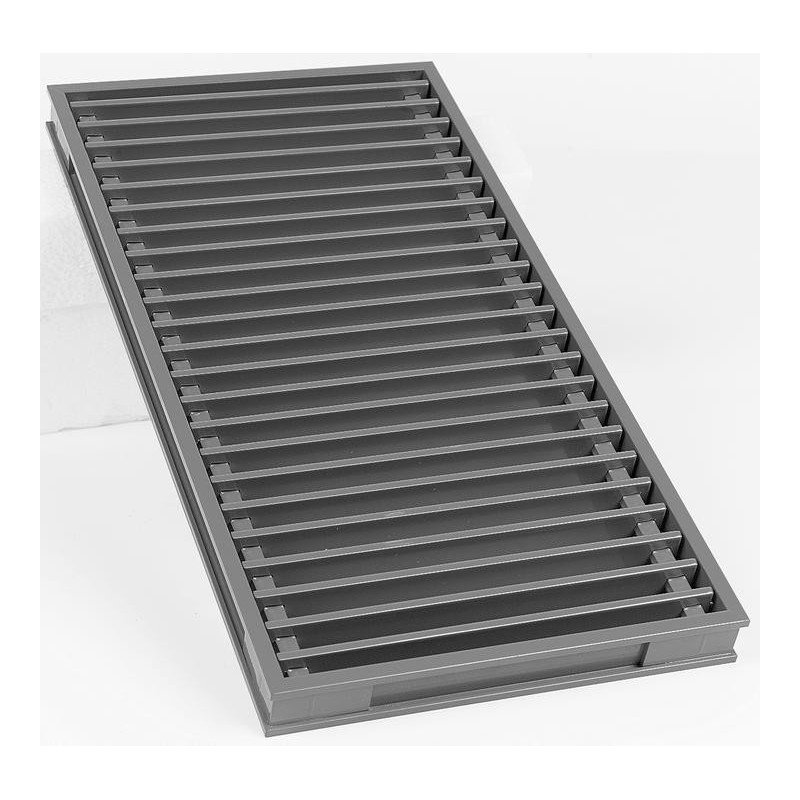

Aesthetic aluminum floor grille with or without frame and with slats in transverse direction.

Material :

• Made of Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• The edge of the frame is provided with a synthetic rubber band providing soundproofing.
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Models:

1. 311/1: L-shaped frame without cover equipped with a rubber band for soundproofing.
   Dowels for fixing to the ground are supplied.
2. 311/2: Z frame with cover equipped with a rubber band for soundproofing.
   Dowels for fixing to the ground are supplied.
3. 311/3: Floor grid in frame.

Special application:

Floor heating

Dimensions:

• Space between blades: 12.5 mm (Attention! Safety standard less than 8 mm)
• Grid profiles: 20 x 4 mm
• 311/1 - 311/2
  Floor grid length: min. 100mm – max. 3500 mm (from 1300 mm, grid in several parts)
  Floor grid width: min. 100mm – max. 1215mm
• 311/3:
  Length per grid part: min. 85mm - max. 1300mm
  Width per grid part: min. 85mm - max. 1200mm
  Note: for a width > 650 mm, an underlying load-bearing structure must be provided.
• Useful opening = length and width - 50 mm
• Blades in transverse direction
