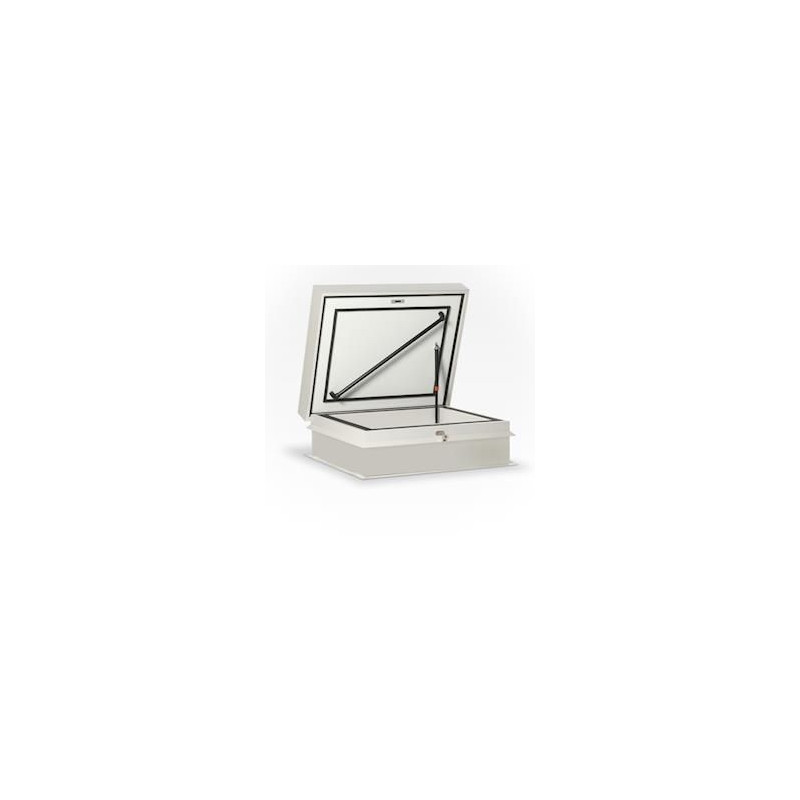

      Access hatch for roofs - RC 5.0 - LINE ECO

      Visit hatch for roofs equipped with a cylinder lock for use from inside to outside.

      The standard color of the hatch is Grey TV 4 RAL 7047.

      CUSTOM dimensions and CUSTOM colors on request.

      Outside dimensions:
      €2,765.70Tax Included
      LE-STO 70/90
      9145385984161

      Access hatch for roofs - RC 5.0 - LINE ECO

      Visit hatch for roofs equipped with a cylinder lock for use from inside to outside.

      The standard color of the hatch is Grey TV 4 RAL 7047.

      Characteristics:

      • Hatch and costière with PIR insulation 100 mm.
      • RC value of 5.0 m2 K/W.
      • Insulation value calculated by Peutz.
      • Available in all desired RAL colors.
      • Available with storm channels.
      • The roof hatches are delivered fully mounted and equipped with gas cylinders.
      • The door leaf is locked when it is fully opened.
      • Very easy to open and close.
      • Stainless steel hinges and locks.
      • The diagonal handle inside the lid can be used as a handrail for safe entry and exit.
      • Frame with anti-slip.
      • Cylinder lock with cylinder with European profile (55+55) SKG with 3 keys for control from inside and outside.
      • Load 300 kg/m2.

      Remark:

      Due to the spring-loaded mechanism, the net aperture is smaller than the indicated free aperture size.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      STO 70/90 700 x 900 mm 960 x 1160 mm
      STO 90/90 900 x 900 mm 1160 x 1160 mm
      STO 70/140 700 x 1400 mm 960 x 1660mm
      STO 100/100 1000 x 1000 mm 1260 x 1260 mm
      STO 100/150 1000 x 1500 mm 1260 x 1760 mm

      CUSTOM dimensions and CUSTOM colors on request.

      LINE ECO
      LE-STO 70/90

      Specific References

      EAN13
      9145385984161

      Quelles sont les déclinaisons et prix pour Access hatch for roofs - RC 5.0 - LINE ECO ?

      Access hatch for roofs - RC 5.0 - LINE ECO - Déclinaisons, dimensions, prix, références
      Variante Outside dimensions Prix HT Prix TTC Réference EAN-13 Stock* disponible
      Access hatch for roofs - RC 5.0 96 x 116 cm €2,304.75 €2,765.70 LE-STO 70/90 9145385984161 Arrivage
      Access hatch for roofs - RC 5.0 116 x 116 cm €2,441.25 €2,929.50 LE-STO 90/90 9145385984185 Arrivage
      Access hatch for roofs - RC 5.0 96 x 166 cm €2,651.25 €3,181.50 LE-STO 70/140 9145385984178 Arrivage
      Access hatch for roofs - RC 5.0 126 x 126 cm €2,887.50 €3,465.00 LE-STO 100/100 9145385984192 Arrivage
      Access hatch for roofs - RC 5.0 126 x 176 cm €3,144.75 €3,773.70 LE-STO 100/150 9145385984208 Arrivage
      *Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
