Sample Narrow channels Premium black aluminium grating and Luxury stainless steel style grating - StarDrain - LINE ECO

Sample Narrow channels Premium black aluminium grating and Luxury stainless steel style grating - StarDrain - LINE ECO

StarDrain LINE ECO narrow 6.5 cm gutters are an elegant and stylish drainage solution.

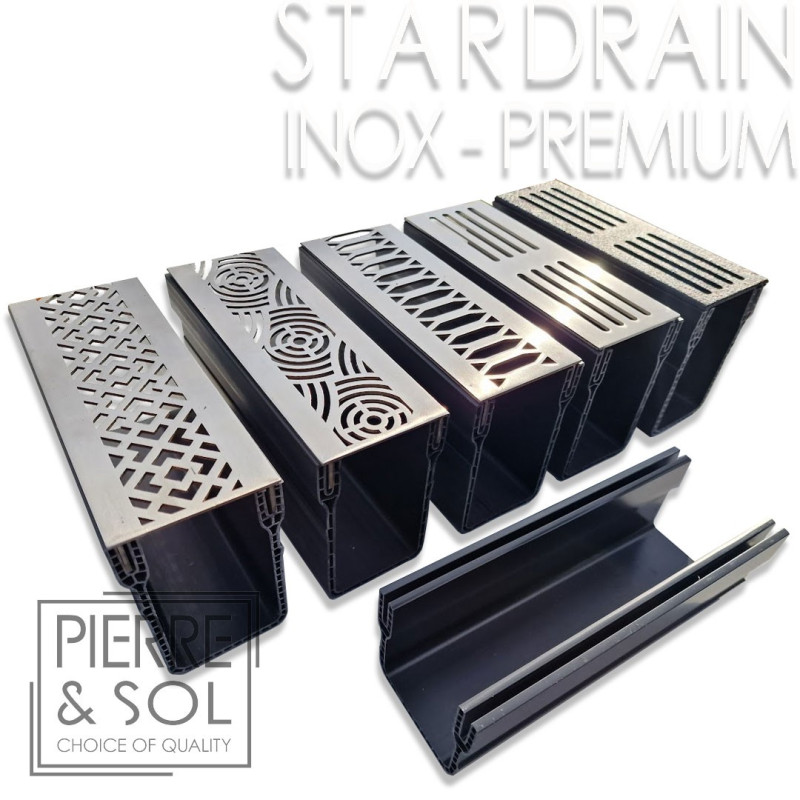

The sample includes:

• 5 narrow channels 6.5 cm - Height 103 mm.
• 1 channel XXS MINI L 6.5 cm - Height 63 mm.
• 5 channel grates: Inox Falcon , Inox Line , Inox Diamond , Inox Viking and Premium Black Aluminum .

The StarDrain LINE ECO and the StarDrain LINE ECO XXS MINI are gutters made of a synthetic material channel (PVC) and a designer grille in marine quality aluminum.

These gutters are installed around the home, where there is no car traffic, category A15. Uses of Stardrain concreted at the edge of garages have been noted, but the product does not have category B125.

You can evacuate water from the gutter, for example, to the sewer or an infiltration system, using a side or bottom drain port. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. Pierre et Sol offers Gully infiltration sumps or others.

These gutters have the option of a side and bottom outlet. The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.

For the lower outlet, drill a Ø45 mm hole in the bottom of the gutter using a hole saw. See here

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Lightweight channel element made of synthetic material.
• Easy to install.
• Easily removable grill.
• Available in three colors.
• Only 6.5 cm exterior width.
• Only 6.3 cm in height for the XSS MINI.
• Only 4 inches tall for the narrow gutter.
• Resistance class A 15 (pedestrian only) for the XSS MINI.
• Flow rate 65/100 - 360l/m for the narrow gutter.

Colors:

• Stainless Steel Falcon
• Inox Line
• Stainless Steel Diamond
• Viking stainless steel
• Premium Black Aluminum

Advice :

• If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire.
• If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
• If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.
• Bonding with PVC glue between elements can be considered to facilitate installation while ensuring expansion.
• PVC and aluminum elements can be easily cut with the appropriate material.

Attention :

Avoid odors by installing a siphon at the sewer connection.

Accessories available separately, see on this page for narrow gutters Height 103 mm and XXS MINI gutters Height 63 mm .

Sample request and delivery:

• PIERRE & SOL is organized to offer you a complete service and sound advice, so we are aware that it is not easy to choose based on photos and images.
• To help you in your choices, we receive sample requests every day and drop them off every week in the mail.
• We can therefore send you samples of our products, subject to a contribution to the costs, in fact, the packaging, movement and postal costs of heavy materials must be financed in order to avoid abuse.
• These costs are deducted when purchasing our products, even if they are not the same products as the sample sent, within the limit of one refund per product purchased with a maximum of 2% of the amount excluding tax. of the order.
  With a minimum reimbursement of €5.
  Below this amount, reimbursement will be made to a Paypal account or in a voucher for a period of 1 year.
• Professionals and businesses will understand that we must apply the same procedure for their respective requests.
