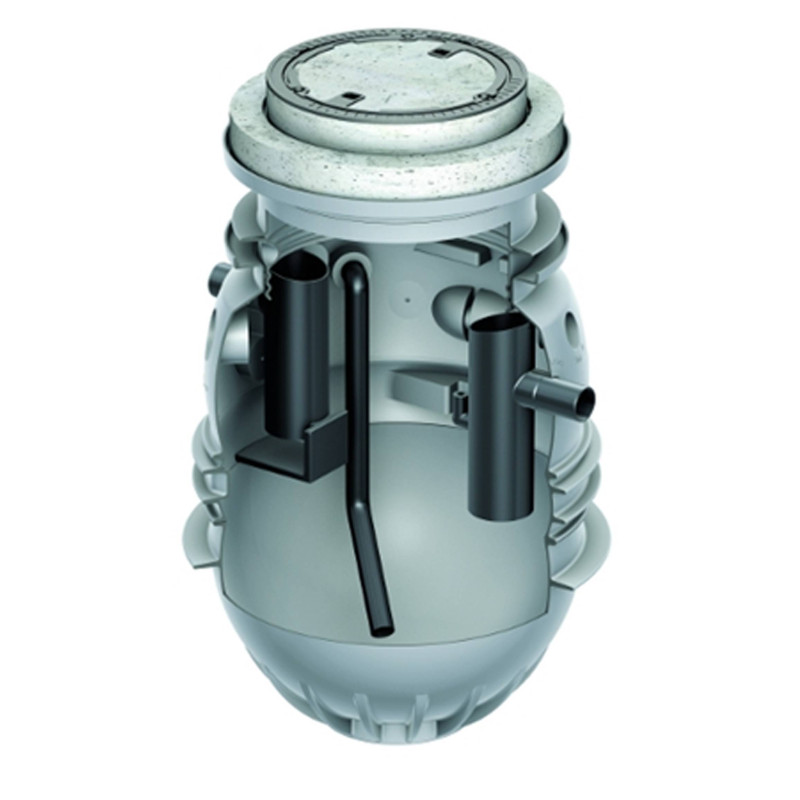

Grease separator with drain - Lipumax-P-D - ACO

Grease separator with draining via direct suction connection, cleaning via lid . The Lipumax-PD grease separator with direct suction connection is ideal for installation in areas where draining via the cover is impossible for practical and hygienic reasons.

- Delivery time: 3 weeks

Height:
format:
€1,740.92Tax Included
ACO 3202.81.00
9145342744517

Grease separator with drain - Lipumax-P-D - ACO

LIPUMAX-PD grease separator to be installed in the ground with pre-assembled drain line for applications where when draining , the cover is difficult to access by the drain truck;

  • built in accordance with EN 1825/DIN 4040-100;
  • with CE certificate and LGA certificate;
  • with a guarantee of structural stability of the tank for 50 years;
  • assembly protected against the groundwater pushing up to the cover without having to take additional measures;
  • round execution in rotomolded PE-HD;
  • wall thickness of minimum 10 mm;
  • equipped with a pre-assembled DN 65 PN 10 drain pipe and fitted with a STORZ-75B type firefighter coupling;
  • with connection for possible sample taking;

With upper section class A15, B125 or D400 kN according to EN 124

GN

Capacity [liters]

Connection

Height
total
[mm]

Weight
[kg]

Article number

Sludge

Fats

Total

DN

Ø [mm]

2

245

270

720

100

110

1377

66

3202.81.00

2

460

270

930

100

110

1594

81

3202.81.10

4

460

270

930

100

110

1594

81

3204.81.00

4

980

270

1465

100

110

2129

92

3204.81.10

5.5

570

230

1465

150

160

2129

95

3205.81.00

5.5

1065

230

1960

150

160

2611

111

3205.81.10

7

730

285

1675

150

160

2346

111

3207.81.00

8.5

860

360

1900

150

160

2558

115

3208.81.00

10

1010

415

2170

150

160

2828

125

3210.81.10

  • nominal size GN …;
  • with integrated sludge trap: … liters;
  • fat retention capacity: … liters;
  • total wastewater capacity: … liters;
  • external diameter of the tank: Ø 1320 mm;
  • total height without extension: … mm;
  • inlet and outlet DN … (ext. Ø … mm);
  • total weight of the set approx. …kg.
