Accessories - Sinkamat-K - ACO

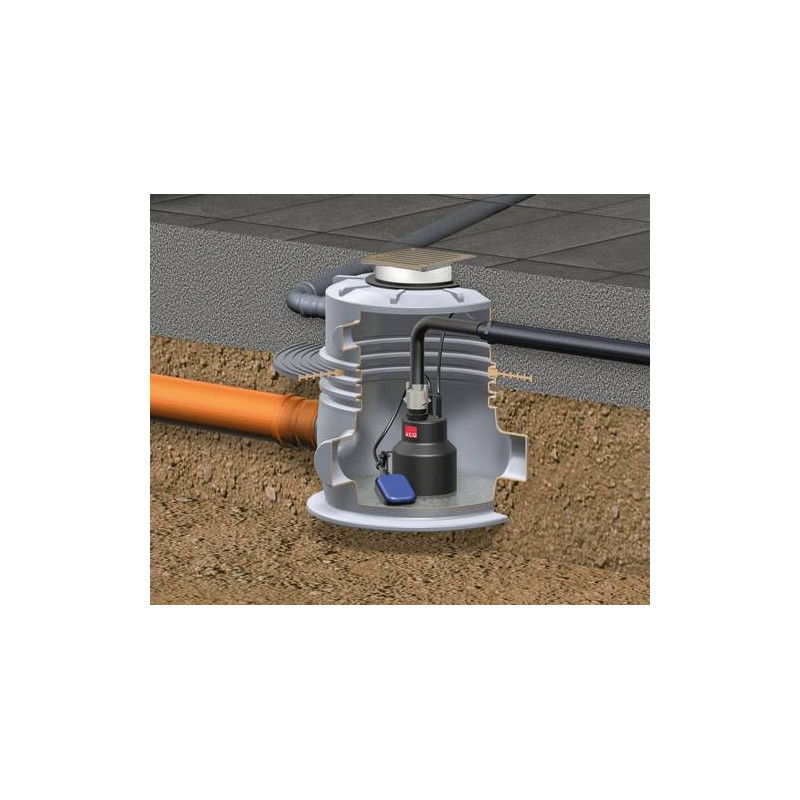

Accessories for the Sinkamat-k cellar pump from ACO, several references are available.

  • Rubber sealing plate Ø 676 mm.
  • Extension in synthetic material, height 116 mm.
  • Hose set, length 4.5 m.

Delivery time: 3 weeks

Model:
€88.70Tax Included
ACO 620381
9145342744203

Accessories - Sinkamat-K - ACO

Accessories for the Sinkamat-k cellar pump from ACO, several references are available.

Rubber sealing plate

  • Ø676mm
  • To be poured into a waterproof concrete slab to prevent infiltration of the water table up to a pressure of 0.2 bar (2 mWk)
  • Maximum water table level: 2 m

Synthetic material reinforcement

  • Height 116 mm for execution with large inspection window
  • With lamellar sealing ring
  • Gradual increase every 116 mm

Pressure hose set

  • Length 4.5 m
  • 5m pressure line hose DN50 (ID 43) with 1 ¼" PVC reducing sleeve
  • Max. working pressure: 6bar
ACO
ACO 620381

Specific References

EAN13
9145342744203
