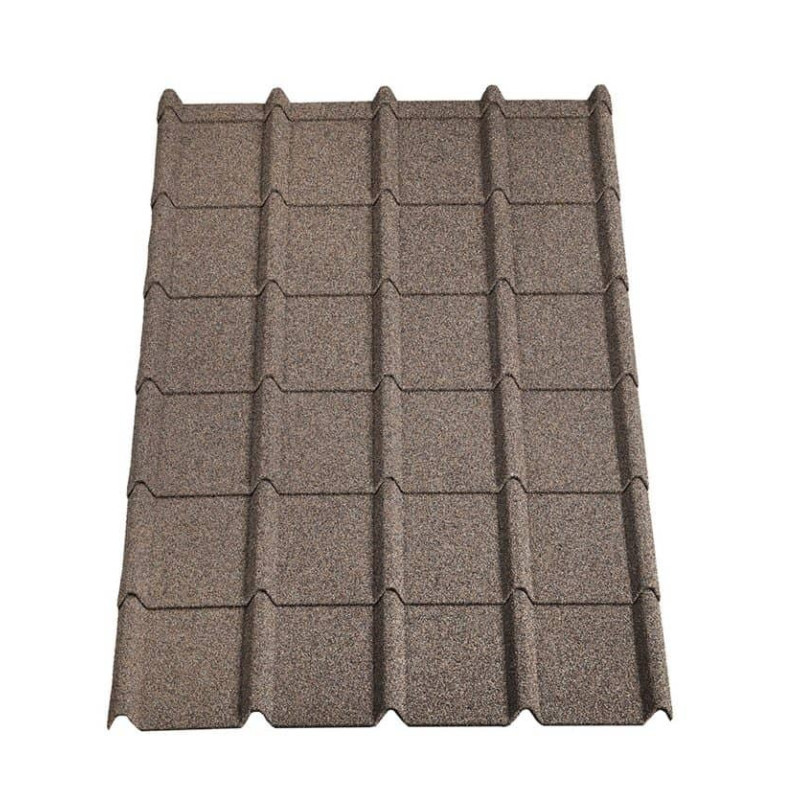

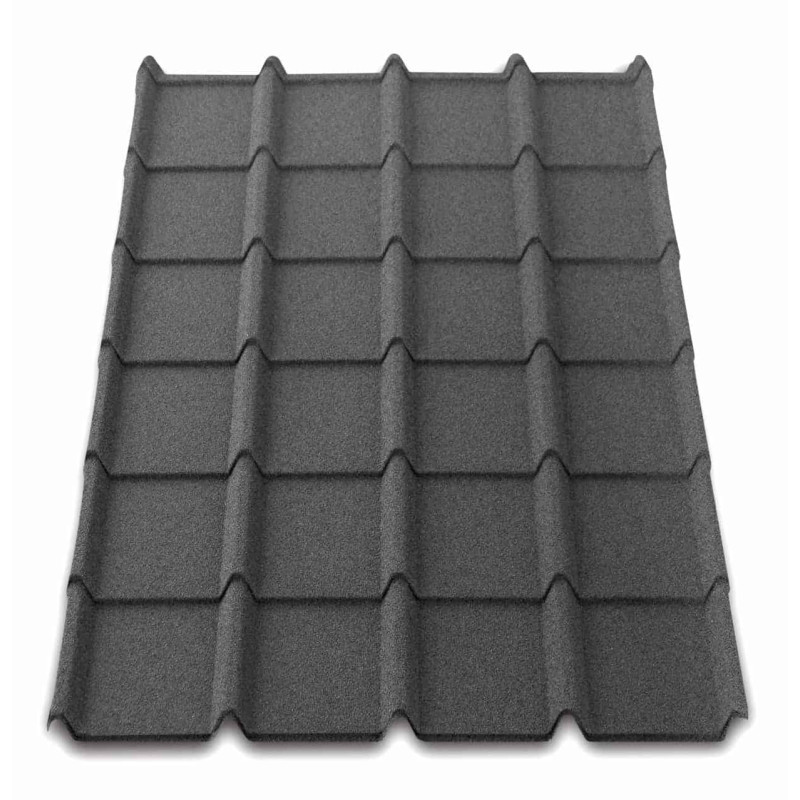

A universal modular tile concept suitable for all pitched roofs with a minimum pitch of 10°.

This unique concept consists of flat tile panels with a modern look in the colors "Pepper", "Black Cherry" or "Anthracite" of the corresponding accessories (i.e. ridges, edges, closure pieces and screws), which which allows you to place 24 tiles in one move.
Good to know: thanks to its unique concept, Aqua-Tuile Ebena adapts to each roof , without shearing or cutting.

Benefits :

• Fast, lay 24 tiles at once
• Always fits, without cutting
• Easy installation
• Light, strong & durable
• 20 year life expectancy

Application :

For roofs with a minimum slope of 10° such as garden sheds, holiday chalets, garages, carports, gazebos, niches, etc.

Manual :

1. Draw a chalk line about 5cm from the top of the ridge.
   This corresponds to the top face of the top row of plates.
2. Place the gable fascia boards on either side of the roof.
   Distribute them evenly to the chalk line and screw them.
3. Always work in full rows, left to right and bottom to top.
4. Evenly distribute the bottom row of plates between the fascia boards and screw them to the bottom with 2 screws.
   Always screw into the hollow of the plate, approx. 2 cm below the nose.
5. Screw each plate with the material developed for this purpose.
   Use 6 screws per plate.
   Always screw into the hollow of the plate, approx. 2 cm below the nose.
6. Ensure that the top row of plates is placed up to approximately the chalk line.
7. Then seal the ends of the ridge with the ridge cap.
8. Distribute the ridges evenly over the entire length and screw them to the overlaps, as well as the first and last to the fascia boards.

Conditioning :

1 plate: 117 x 88 cm = +/- 1 m².
