DESIGN M Doormat - 20 mm Thick - CUSTOM MADE - Cleanmid - Verimpex

DESIGN M Doormat - 20 mm Thick - CUSTOM MADE - Cleanmid - Verimpex

With or Without Doormat Frame.

16 colors to choose from for a quality welcome - Cleanmid Light DRY

Please provide the external dimensions of the doormat OR the frame. We will calculate the rest.

CAUTION: The profiles must be installed perpendicular to the direction of travel.

If necessary, depending on the ordered depth and the width of the aluminum profiles plus the gaps (approximately 36 mm), we adjust the gap width (3, 5, or 6 mm) to achieve the desired depth.

PRESENTATION

The durable nylon fabric dries quickly, creating a versatile and acoustically pleasing entrance mat. Its modular design combines attractive looks with high-quality performance, thanks to the unique composition of technical textiles, high-quality aluminum, and a multitude of possibilities.

This doormat is suitable for any interior, home, shop, office, school, or other space, thanks to its high resistance to heavy foot traffic, up to 2,500 times per day. 5-year guarantee.

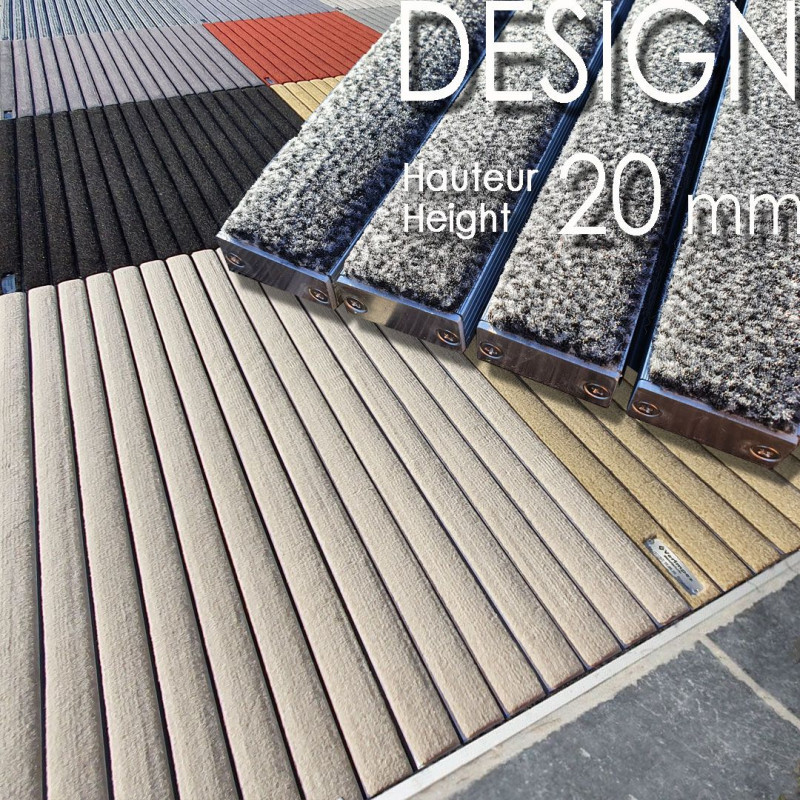

Flexible roll-up doormat, composed of aluminium support profiles with a polyamide strip surface.

The aluminum profiles are connected by 4 mm black PVC links with holes that allow dirt to escape and a rubber strip that provides sound insulation and an anti-slip function.

An ingenious aluminum structure houses an acoustic anti-slip layer and ensures better absorption of moisture and dirt which is easily vacuumed up after rolling up the doormat.

Technical details and tests are specified below at the bottom of the page.

KEY POINTS: We offer a wide choice of colors for your projects, ramps, doormat frames, as well as integrated scrapers or brushes, a harder surface, custom stainless steel marking, a design choice for outdoor use,... Available on request or see our other pages.

DESIGN & COLOR CHOICES

2940: CREAM

2970: BEIGE

2990: CHAMPAGNE

9150: SAND

9002: BLACK NIGHT

8250: SILVER GRAY - SILVERSSHINE

9210: MOUSE GREY

9012: BLUE GREY

6021: BROWN

8000: GOLD YELLOW - GOLDSHINE

4200: RUBY RED

8500: ROSE - ROSESHINE

8840: DOTTED BLACK

9008: MORAY BROWN - DEEP BROWN

8820: DOTTED RED

15363: GREEN LAWN - GRASS

CHOICE OF DOORMAT FRAME

When ordering a custom-made frame, you must specify the frame's external dimensions . Our technical department will then calculate the usable dimensions of the doormat.

To compensate for the thickness of the doormat frame, it may be necessary to level the bottom of the doormat (using a leveling compound such as Egaline) or add a rubber underlay of a few millimeters; see "RUB - Rubber underlay for entrance doormats" on this page.

VER-ALU - Aluminum - Natural - Height 16 mm or 21 mm

Frames for entrance mats in aluminium colour, natural colour.

Profiles of 21 x 16 mm, 3 mm thick. Visible edge of 6 mm.

Profile height: 16 or 21 - Doormat recess height: 10 or 15.

PROMA-AN - Aluminum - Natural - Height 26 mm

Frames for entrance mats in anodized aluminum color, natural color.

Profiles of 30 x 26 mm, 3 mm thick. Visible edge of 7 mm.

Profile height: 26 mm - Doormat recess height: 22 mm.

PROMA-AR - Aluminum - Stainless steel color - Height 26 mm

Frames for entrance doormats made of aluminum in stainless steel color.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm and fixings.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-ALU - Aluminum - Natural - Height 26 mm or 31 mm

Frames for entrance mats in aluminium colour, natural colour.

Profiles of 31 x 26 mm, 3 mm thick. Visible edge of 6 mm.

Profile height: 26 or 31 mm - Doormat recess height: 20 or 25 mm.

PROMA-AZ - Aluminum - Anthracite Grey - Height 26 mm

Frames for entrance doormats in aluminum, in anthracite grey.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm and fixings.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-BLACK - Black lacquered aluminum - Height 26 or 31 mm

Frames for entrance doormats in black lacquered aluminum.

Profiles of 31/26 or 26/31 mm, with a visible upper edge of 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the frame thickness is 6 mm, you may need to use an underlay to compensate for the thickness.

PROMA-MS - Brass - Natural - Height 26 mm

Natural brass entrance mat frames.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-LAI - Brass - Height 26 or 31 mm

Aluminum entry doormat frames in brass color.

Profiles of 31/26 or 26/31 mm, with a visible upper edge of 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the frame thickness is 6 mm, you may need to use an underlay to compensate for the thickness.

TECHNICAL DETAILS

TEXTILE

Textile height: 5 mm

Textile width: 30 mm. Textile base width: 29.5 mm

Drying insert material: DRY 100% polyamide multifilament Ø 50. 450,000 multifilaments per m². 80% recycled textile

Colors: anthracite, black, brown, red, grey, green,.... See the color palette.

ALUMINUM PROFILES

Profiles: Height 17 mm. Width 32 mm. Aluminum (min. 78% recycled). Spaced at ±4 mm. Tolerance

Connecting parts: Black rigid PVC - Crack resistant black GST66901 PE LD

Accessories: DIN916A2 M4x8 stainless steel bolts. Aluminum trim plates. DIN7982 A2 C2 stainless steel screws, 9x13 H

TESTS

In collaboration with Ghent University

Fire test: The doormat corresponds to category Bfl in the direction of travel, in accordance with EN ISO 11925-2 and EN ISO 9239-1.

Smoke test: The doormat meets category S1

Lightfastness: Resistance to photodegradation. Produced according to ISO 105 B02(1994) with a result in category 6-7, where category 8 is the best result (2002).

Wronz Test: Heavy wear test. The doormat achieves a value of 25,000, i.e., the equivalent of 500,000 to 1,200,000 uses. We can provide test reports 02-796C, 02-797C, and 02-798C.

Static load test: The doormat withstands a pressure of 600 kg per cm². We can provide test reports 03-601 and 03-601 bis. There are no restrictions on load caused by normal foot traffic, trolleys, and wheelchairs. For heavy traffic, rotating movements should be avoided; otherwise, the manufacturer always recommends using a protective panel.

Moisture absorption test: The doormat has a moisture absorption capacity exceeding 1000 ml/m². We can provide test reports 02-796B, 02-797B, and 02-798B.


Fire and smoke tests were carried out according to the EN 13501-1 (2007+A1:2009) classification. The products were not impregnated or treated with a coating; these are simply inherent characteristics of the materials used.

ECOLOGICAL FOOTPRINT

The manufacturer is committed to reducing the environmental footprint of its product production.

For this reason, the products are manufactured using 100% reusable energy and local materials.

DESIGN CleanMid doormats are produced using Econyl® yarns, at least 80% of which come from recycled material.

FAQ - Frequently Asked Questions

1. Is this doormat really custom-made?
   Yes, the DESIGN M Cleanmid doormat is made exactly to the dimensions you provide, which guarantees a perfect fit.
2. Can it be built-in?
   Yes, with a thickness of 20 mm, it is perfectly suited to the standard recesses provided for inset doormats.
3. Is it suitable for outdoor use?
   No, this model is designed exclusively for indoor use. For outdoor use, it is advisable to opt for a scraper or aluminum doormat.
4. Is it suitable for areas with frequent traffic?
   Yes, it is suitable for medium to high traffic, typical of shops and professional buildings.
5. How to care for the doormat?
   Regular vacuuming is sufficient in most cases. Occasional cleaning with water can be done.
6. Is the product non-slip?
   Yes, its design ensures good stability on the ground, especially when it is embedded.
