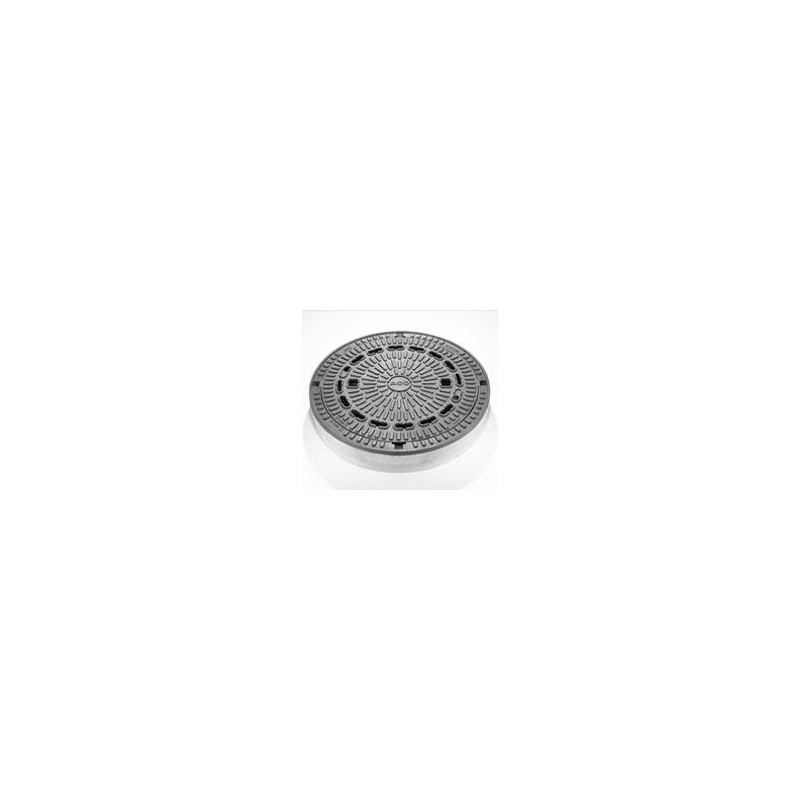

      WRAPSTOP 800 - ACO road cover

      Landfill class D 400 kN according to EN 124 cover, frame in grey cast iron (EN-GJL).

      Product temporarily unavailable. Contact us, we may have an estimated restock time, or an equivalent or complementary solution.
      Model:
      €764.61Tax Included
      ACO 603846
      9145342743817

      WRAPSTOP 800 - CLASS HIGHWAYS COVER D 400KN ACCORDING TO EN 124, FRAME GREY CAST IRON-ACO

      ACO Wrapstop 800 road cover;

      frame in grey cast iron (EN-GJL) and lid ductile iron (GJS);

      the lid is equipped with 2 robust synthetic auto-verrouillages requiring no maintenance;

      without hinge for an optimal road safety and maintenance reduced;

      equipped with a shock absorber seal renewable peripheral Pewepren in the framework;

      frame dimensions: Ø 916 mm free aperture: 810 mm, frame height: 125 mm;

      weight of the single cover: 75 kg, total weight: 125 kg;
      operating load class D 400 according to NBN EN 124.



      The lid ACO Wrapstop 800 or highways is also available with a bolt in stainless steel
      making it waterproof odours and runoff waters (ref. see table).



      Available with or without protective layer black water-based, environmentally friendly.



      Execution of the cover

      Dimension of the frame (mm)

      Free opening (mm)

      Height of frame (mm)

      Resistance class

      Weight
      (kg)

      Item No.
      non-treaty

      Item No.
      Treaty

      automatic keyguard

      O 916

      O 810

      125

      D 400

      125

      602509

      603846

      bolting

      O 916

      O 810

      125

      D 400

      125

      607178

      1015300
      ACO
      ACO 603846

      Specific References

      EAN13
      9145342743817

      Quelles sont les déclinaisons et prix pour WRAPSTOP 800 - ACO road cover ?

      WRAPSTOP 800 - ACO road cover - Déclinaisons, dimensions, prix, références
      Variante Model Prix HT Prix TTC Réference EAN-13 Stock* disponible
      WRAPSTOP 800 self-locking €637.17 €764.61 ACO 603846 9145342743817 Arrivage
      WRAPSTOP 800 Bolting €767.35 €920.82 ACO 1015300 9145342743824 Arrivage
      *Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
