Grass reinforcement grid in HDPE - ECCOdal - ECCO

Grass reinforcement grid in HDPE - ECCOdal - ECCO

Please note: Price and quantity expressed in m².

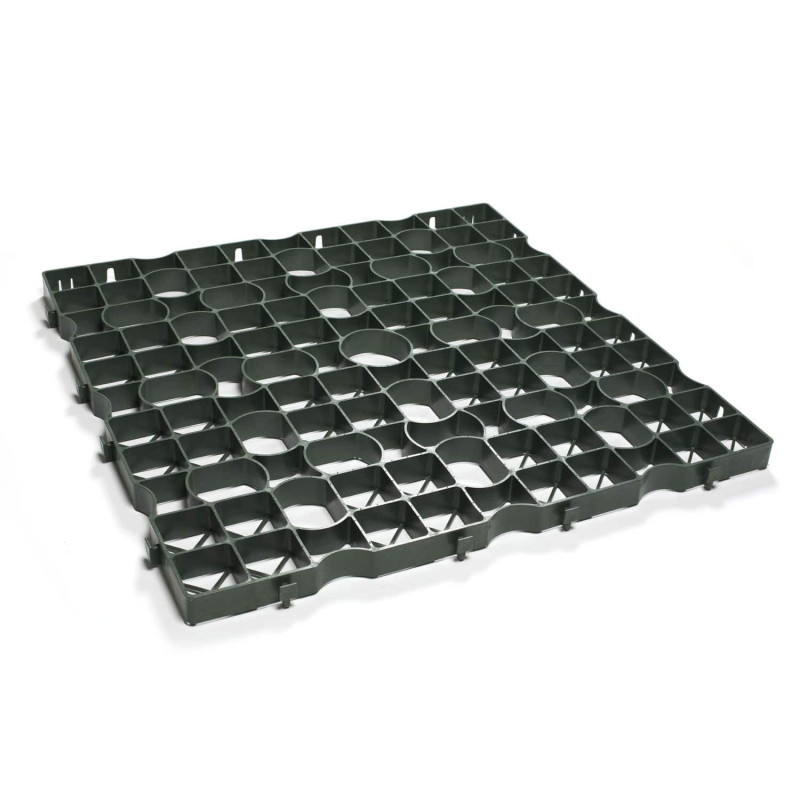

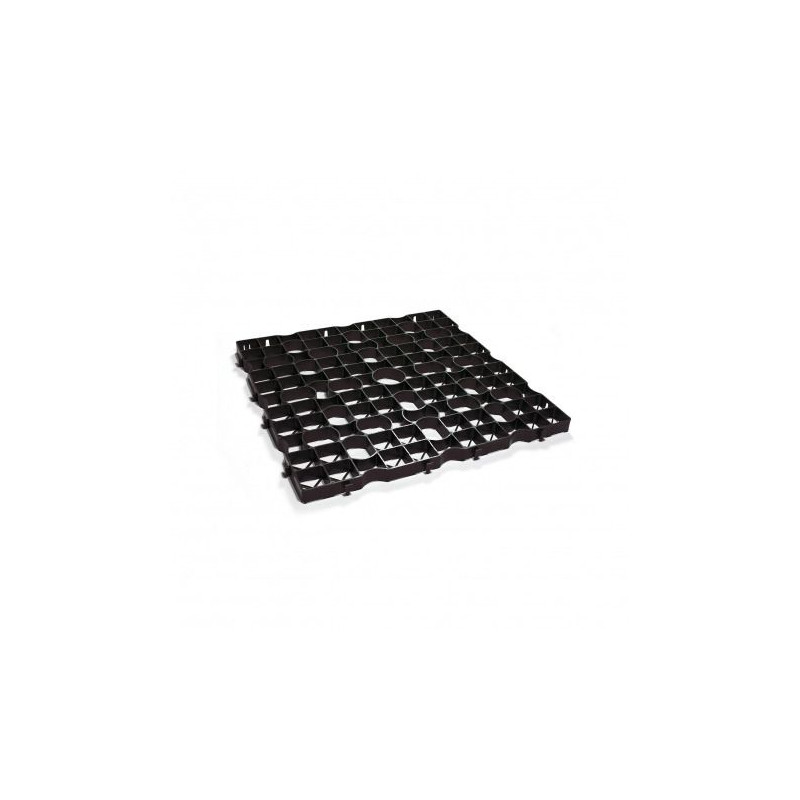

ECCOdal is a grass tile made from recycled HDPE . The grass slab is provided with expansion joints to absorb thermal and mechanical stress.

With a sufficient foundation, ECCOdal can support heavy traffic sporadically. ECCOdal grass tiles are therefore perfectly suited for parking spaces , firefighter access routes, garage driveways , etc.

Features :

• Belgian quality product
• Frost-resistant HDPE grass tiles
• Practical size
• Different colours
• Different heights

Why choose grass tiles?

Increasingly, we are faced with a shortage of groundwater on the one hand and flooding on the other, because water penetrates less and less easily into the ground due to the proliferation of coverings (concrete , paving, paving stones, etc.) This is why Flanders has adopted, since January 1, 2014, stricter legislation regarding rainwater: rainwater must be either collected in a rainwater collection well , or penetrate into the ground.

Grass tiles and gravel stabilizing tiles provide a water-permeable covering, which facilitates the penetration of water into the ground. This way you avoid groundwater shortages and flooding without having to invest in an expensive drainage system. It is also a way of reducing our ecological footprint and protecting the natural biotope.

Why choose ECCOdal slabs?

ECCOdal grass tiles are made of HDPE (high density polyethylene), so they remain flexible even in the event of frost and are not likely to break. In addition, ECCOdal grass tiles are equipped with expansion joints to compensate for temperature fluctuations, so the grass tiles remain in place. ECCOdal grass tiles are also suitable for cars, therefore perfect for an (additional) parking space or for a driveway.

Finally, ECCOdal grass tiles have been specifically designed with the characteristics of a grass tile, unlike other tiles which are used both as a gravel stabilizing tile and as a grass tile. Due to their technical characteristics, ECCOdal grass tiles are exclusively intended to be filled with grass, while ECCOgravel gravel stabilizing tiles are specifically designed to accommodate gravel. Finally, ECCOdal is a 100% Belgian quality product.

Result :

Your coating is water permeable, passable on foot or by car, with an ecological touch.

ECCOdal grass tiles have several applications, they are in fact perfectly suited for walking or garden paths, but also for your driveway or parking lot. ECCOdal grass tiles are also perfectly suited for roof terraces, fire brigade access routes, sports fields, etc.

Technical characteristics:

ECCOdal 40:

• Composition: High density polyethylene
• Weight per tile: 3.2 kg
• Dimensions: 80 x 80 x 4 cm
• Color: green or black
• Pressure resistance: 110 kN

ECCOdal 50:

• Composition: High density polyethylene
• Weight per tile: 3.9 kg
• Dimensions: 80 x 80 x 5 cm
• Color: green or black
• Pressure resistance: 110 kN
