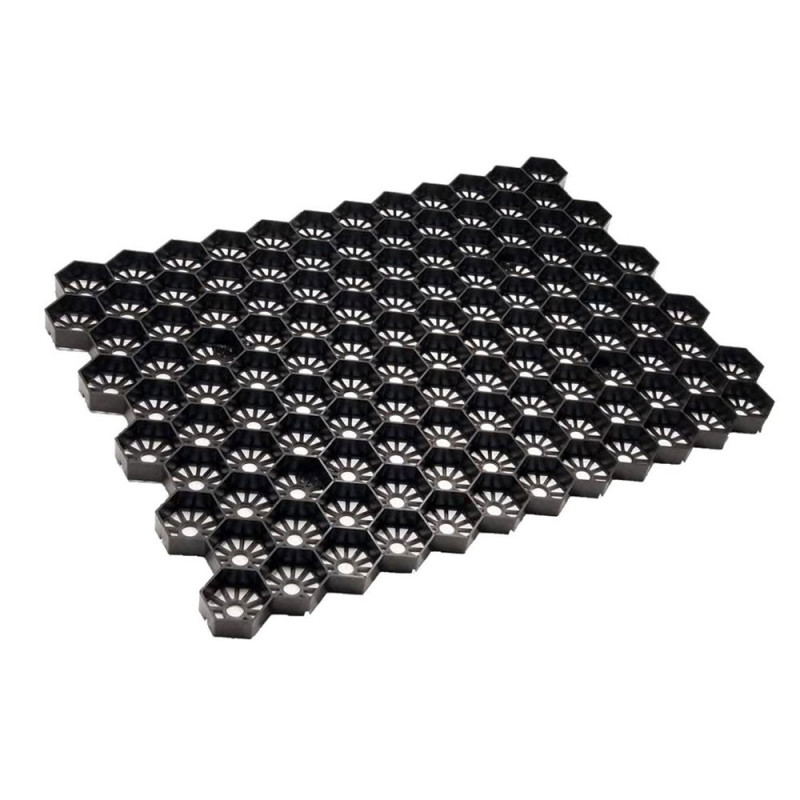

GridaGravel 34 is a semi-closed bottom honeycomb slab used to stabilize gravel on car parks , driveways , driveways , paths etc.

Its hexagonal structure with its 3 mm thick walls is very robust and will withstand loads up to 600 t/m² once filled.

The low weight of the GridaGravel 34, its ergonomic format and its interlocking system allow it to be very easy , quick and therefore economical to install .

At only 3.4 cm in height, it requires less raw material to produce and less gravel when filling than thicker slabs.

An ecological solution

Thanks to the GridaGravel, rainwater can penetrate the ground and evaporate naturally on site. This is a positive step for the environment and it relieves the sewers .

Aesthetic and discreet

Thanks to its white or black color, the GridaGravel slab is suitable for stabilizing both light and dark gravel . Its very discreet interlocking system makes it possible to create harmonious surfaces.

Strong and durable

GridaGravel is made of virgin (white) or recycled (black) PP/PE granules. Empty it supports a load that can go up to 148 t/m² . When filled with gravel, it withstands pressures of over 600 t/m² !

Marking studs

White or gray studs are available to delimit parking spaces or access paths . They should be placed before filling.

Applications:

• Parkings.
• Sloping walkways.
• Garage entrances.
• Trails.
• Cycle paths.
• Access routes for firefighters.
• Various access.

Benefits :

1. Very solid.
2. Aesthetic and discreet.
3. Resistant interlocking system.
4. Invisible staggered installation.
5. Quick to install thanks to its large size.
6. 3.4 cm thick = saving gravel.
7. Economic solution.
8. 100% recyclable.

Features :

• Dimensions: ± 91.2 x 65 x 3.4 cm.
• Weight: ± 2.2 kg/plate – ± 3.7 kg/m².
• Material: PP/PE.
• Compressive strength Fmax: 71.5 kN*.
• Empty slab resistance: 148 t/m².
• Solid slab resistance: ≥ 600 t/m².
• Tensile strength of connections: 2.1 kN/m*.
• Color: white or black.
• Sheets per m²: ± 1.79 pc.
• Useful area: ± 0.56 m².
