INFILTRA channel with BLACK aluminum grid - AquaDrain - 100/100 PLUS - LINE ECO

INFILTRA channel with BLACK aluminum grid - AquaDrain - 100/100 PLUS - LINE ECO

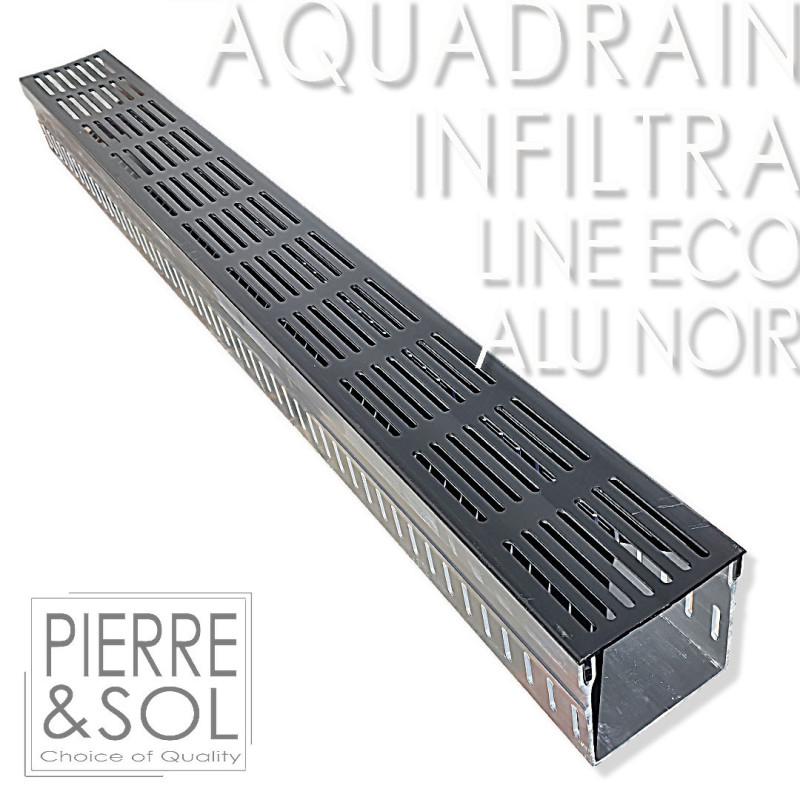

The 10 cm square aluminum infiltration channel - AquaDrain INFILTRA - 100/100 PLUS - LINE ECO is an extra draining , robust channel made up of a channel pierced on 1, 2 or 3 sides in synthetic material (PVC) and 'a designer aluminum grille.

This gutter is installed around the home, where there is no car traffic.

Capacity of 10L per linear meter.

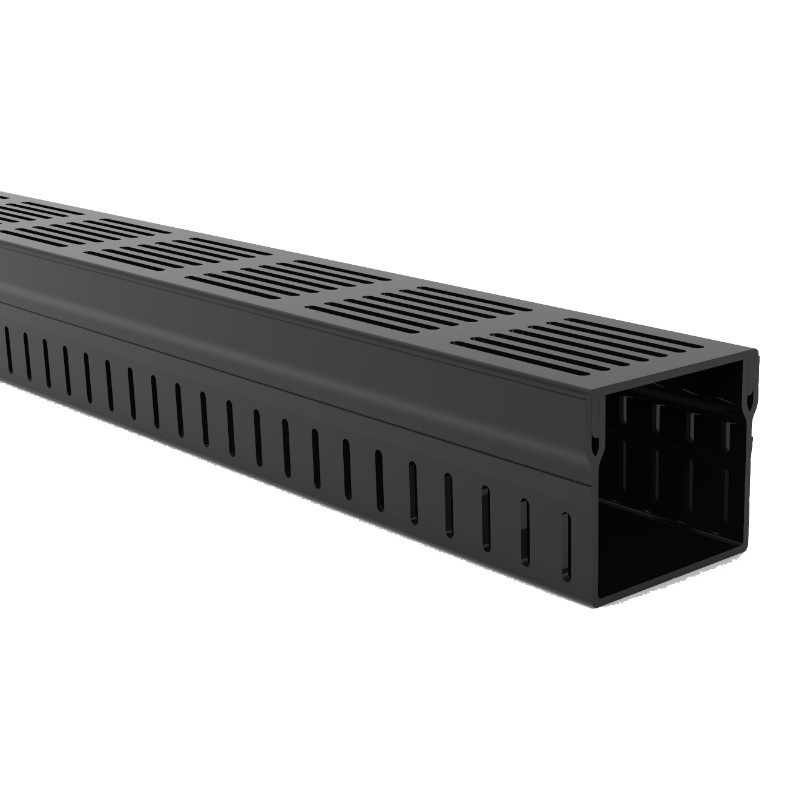

It is available in PLUS 1, PLUS 2 or PLUS 3 versions. The PLUS versions are pierced with slots on 1, 2 or 3 sides to facilitate and accelerate drainage and infiltration.

This gutter is installed around the home, where there is no car traffic.

You can evacuate water from the gutter, for example, to the sewer or an infiltration system, using a side or bottom drain port. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. Pierre et Sol offers Gully infiltration sumps or others.

This channel has the option of a side and bottom outlet in addition to the pre-existing slots on the PVC channel (on PLUS 1, PLUS 2 and PLUS 3 models). The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.

For the lower outlet, drill a Ø 75 mm hole in the bottom of the gutter using a hole saw.

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Lightweight channel element made of synthetic material.
• Easy to install.
• Easily removable grill.
• Available in two colors.
• Only 10 cm exterior width.
• Resistance class A 15 (pedestrian only).

Dimensions:

Gutter:

• Length: 1M
• Exterior width: 10 cm
• Height: 10 cm

Corner element:

• Exterior width: 10 cm
• Height: 10 cm

T-piece:

• Exterior width: 10 cm
• Height: 10 cm

Available colors:

• Aluminum .
• Black Aluminum.

Advice :

• If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire
• If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
• If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.

Attention :

Avoid odors by installing a siphon at the sewer connection.

Accessories available separately, see on this page .
