Stainless steel channel Height 3.5 cm - 3XSDRAIN EASY Stainless steel grid Style - LINE ECO

Stainless steel channel Height 3.5 cm - 3XSDRAIN EASY Stainless steel grid Style - LINE ECO

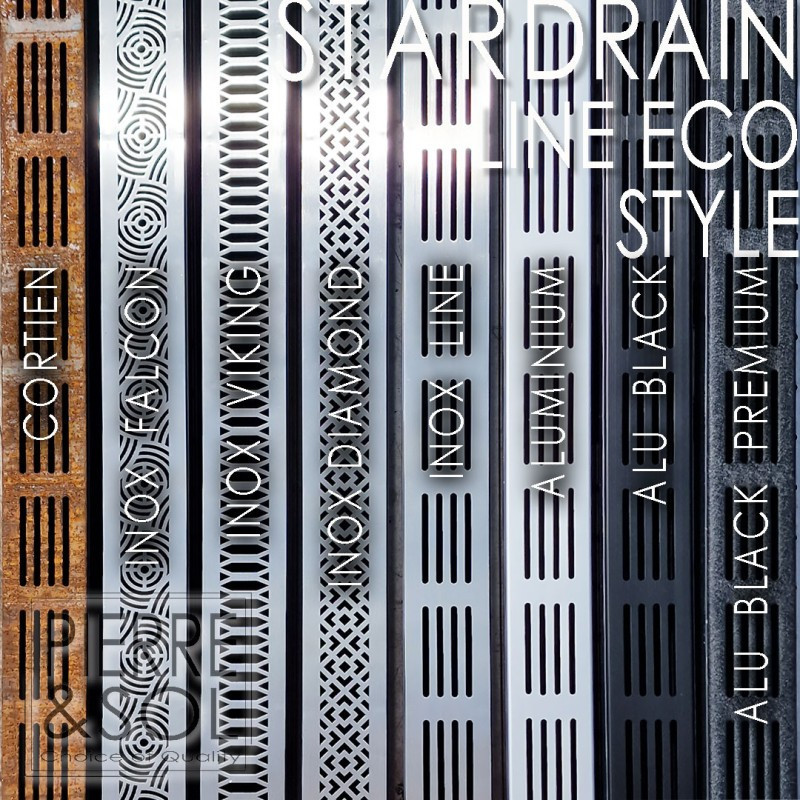

The 3XSDRAIN INOX Style ECO is a very low height channel consisting of a stainless steel channel and various designer stainless steel grates (to choose from).

Quality: INOX 316 - A4 ideal for outdoor use, marine environment, swimming pools, etc.

EXTRA MINI HEIGHT 3XS: 35 mm

This gutter is installed around the house, where there is no car traffic.

You can drain water from the gutter, for example, into the sewer or an infiltration system, using a lower drainage opening. By draining water into an infiltration system, you're also taking lasting action and improving the soil's water balance. PIERRE & SOL offers Gully infiltration sumps and other types.

This channel has the option of a bottom outlet. The bottom outlet must be connected to the network. For the bottom outlet, drill a Ø45 mm hole in the bottom of the channel using a stainless steel hole saw. See HERE .

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Durable stainless steel channel and grate element.
• Easy to install.
• Easily removable grid.
• Only 6.5 cm outside width.
• Only 3.5 cm in height.
• Resistance class A 15 (pedestrian only).

Dimensions:

Gutter:

• Length: 1 m
• External width: 6.5 cm
• Height: 3.5 cm

2-piece corner element: (On order)

• Length: 15.9 cm
• External width: 6.5 cm
• Height: 3.5 cm

2-piece T-piece: (Made to order)

• Length: 18.2 cm / 15.7 cm
• External width: 6.5 cm
• Height: 3.5 cm

Advice :

• If the flooring is new, we recommend stretching a wire to determine the level. In this case, always place the grid 3 mm below the wire.
• If you are placing the gutter in an existing covering, we recommend making a wooden template of the desired height for flushing.
• If the gutter is laid along a vertical wall, the edge of the junction piece must be cut on that side.

Attention :

Connect a maximum of 6 meters of 3XS channels to a single lower opening.

Avoid odors by installing a trap at the sewer connection.

Accessories available separately, SEE ON THIS PAGE
