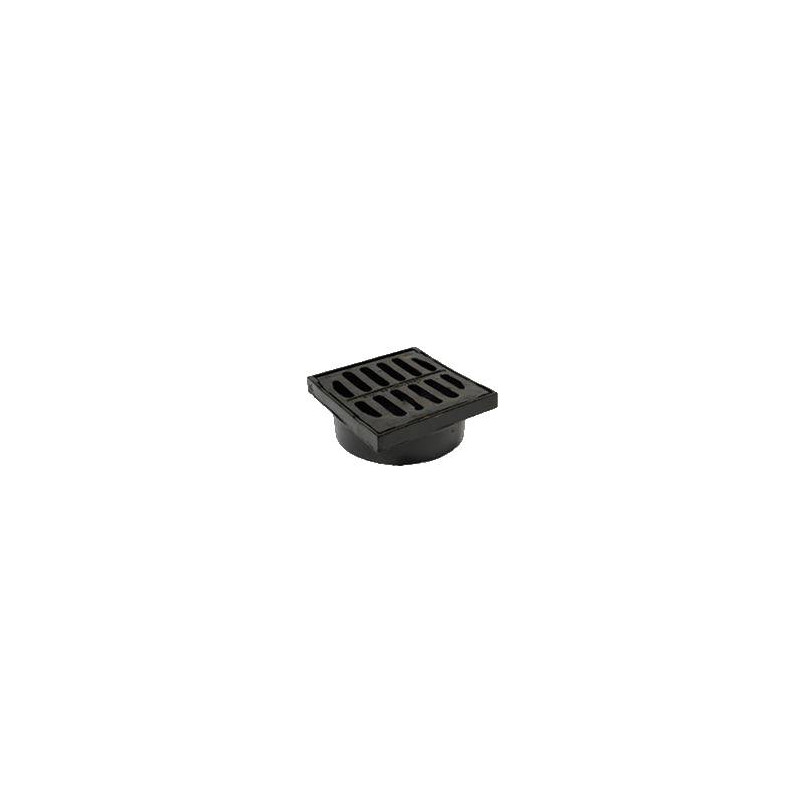

Cast iron avaloir for PVC Chamber

Cast iron avaloir with grille for PVC Chamber.

Reference:DES IJKA250

EAN13: 9145385970287

Cast iron avaloir with grille for PVC Chamber. The avaloir is equipped with a cast iron grille.

The avaloir is to be placed on the visiting Chamber (room and siphon not supplied with the avaloir):

-inspection Chamber of Ø 250 mm with siphon Ø 110 mm for model IJKA250

-inspection Chamber of Ø 315 mm with siphon Ø 125 mm for model IJKA315

Table of exterior and interior dimensions

Ref. Article \|	Frame dimensions \|	Size room visit \|	loaded down
IJKA250	300x300 mm	Ø 250 mm	A15
IJKC315	330x340 mm	Ø 315 mm	C250

Definition of load resistance classes

	Places only accessible to pedestrians and cyclists. Breaking load: 15 kN/m² or 1.5 tonnes/m²
	Sidewalks, pedestrian areas, private parking areas and parking lots for cars. Max V: 20 km/h Breaking load: 125 kN/m² or 12.5 tonnes/m²
	Pedestrian streets and car parks. Places for cars and vans with moderate speed. Breaking load: 250 kN/m² or 25 tonnes/m²
	Traffic lanes and parking areas for all types of road vehicles. Max V: 50 km/h Breaking load: 400 kN/m² or 40 tonnes/m²
	Areas subject to high axle loads such as ports and industrial areas. V max > 50 km/h Breaking load: 600 kN/m² or 60 tonnes/m²
	Areas subject to particularly high axle loads such as runways for airplanes or industrial areas with intensive passage. Breaking load: 900 kN/m² or 90 tonnes/m²

Reference:DES IJKA250

Stock :3 Items

Specific References

EAN13: 9145385970287

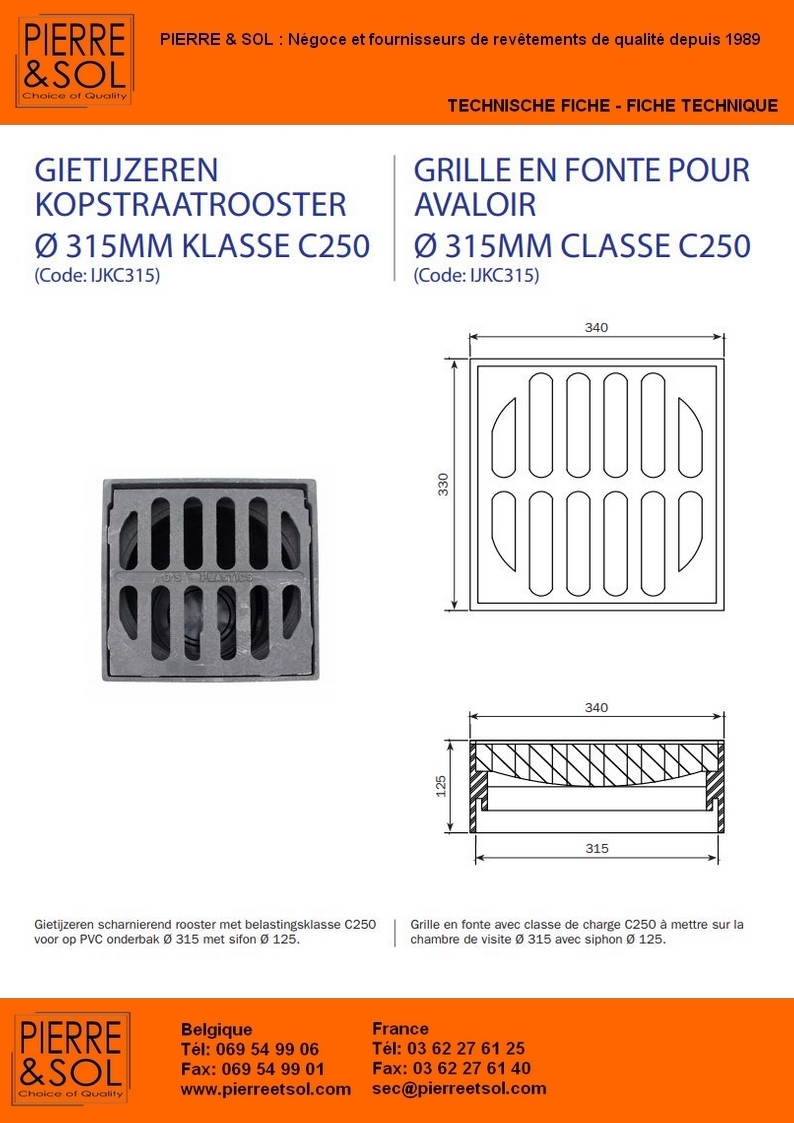

Download

Avaloir en fonte chambre PVC

Download (322.19KB)
