Sedum StockDrain 80 - Pre-cultivated green roof tile - MatGeco

Sedum StockDrain 80 - Pre-cultivated green roof tile - MatGeco

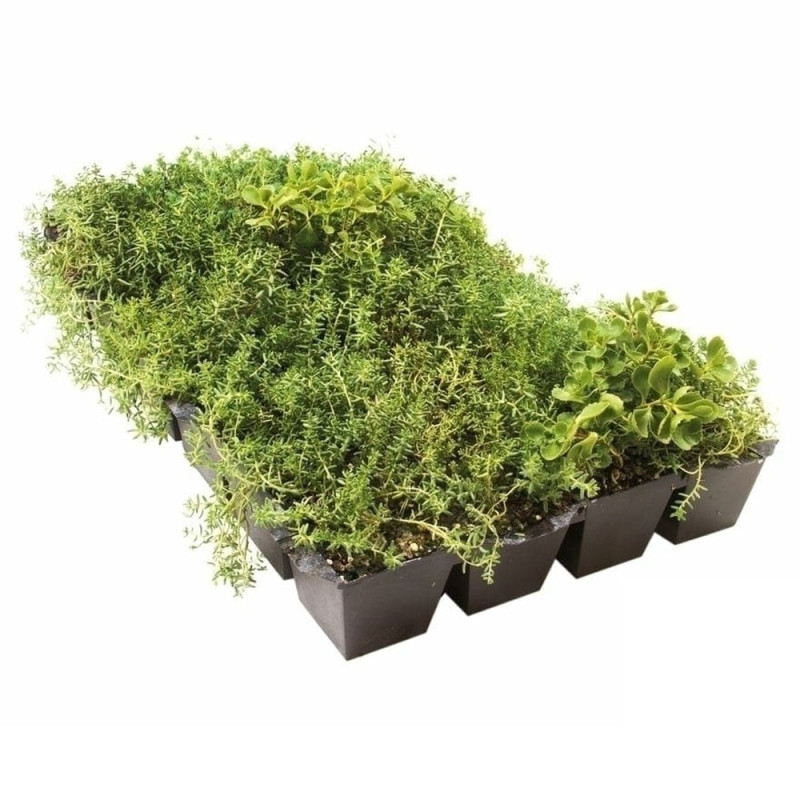

Sedum StockDrain 80 is a HDPE slab pre-cultivated with green roof sedum .

It allows you to create an extensive green roof quickly and easily .

Sedum StockDrain flat roof containers are delivered with mature plants .

All you have to do is apply them and the result is immediate.

Sedum tray for extensive roof greening:

Sedum StockDrain slabs for green roofs contain a mineral and organic substrate. In this substrate about ten different varieties of sedum were grown. The plates are equipped with reservoirs that ensure optimal plant development while evacuating excess water in a controlled manner.
Sedum StockDrain slabs are removable and repositionable, which facilitates any subsequent intervention on the waterproofing of the green roof.

The fast and efficient green roof:

• Direct result:

The plants grow in the nursery and arrive on your site already mature. No need to wait long months to benefit from a beautiful result.

• Simplified use:

Sedum StockDrain is the quick and easy solution to implement. The trays are placed directly on the waterproofing membrane or on a protective non-woven geotextile.

• Living roof:

Sedum StockDrain changes with the seasons. Depending on the temperature and the level of humidity present in the substrate, your roof will present colors ranging from green to rust.

• thermal and acoustic insulation:

The green roof will reduce temperature differences: it lowers the heat in summer and softens the cold in winter. In addition, this system attenuates external noise.

• The advantage of water tanks:

Sedum StockDrain 80 maintains a high water capacity, which is very important during summer periods. In addition, the system makes it possible to regulate the water during heavy rainfall to avoid overloading the evacuations towards the collectors.

• Recycled and recyclable PE-HD:

The StockDrain retention basin is environmentally neutral and promises a long service life. The retention tank is completely recyclable.

• Very open diffusion at the base of the plates:

Large roof water drainage capacity (2.8 l (sxm)) in all directions.

Applications:

1. Flat or slightly sloping roof.
2. miscellaneous building.
3. Desk.
4. Industrial building.
5. Garden shed.
6. Car port.

Features :

• Slab format: ± 57 x 38 cm
• Slab height: ± 8 cm
• Tiles/m²: ± 4.6 pc
• Material: recycled PE-HD
• Evacuation holes: 277/m²
• Number of cells per slab: 24
• Internal cell height: ± 5 cm
• Flow rate under the slab: 2.8 l (sxm)
• Maximum load: 204 kN/m²
