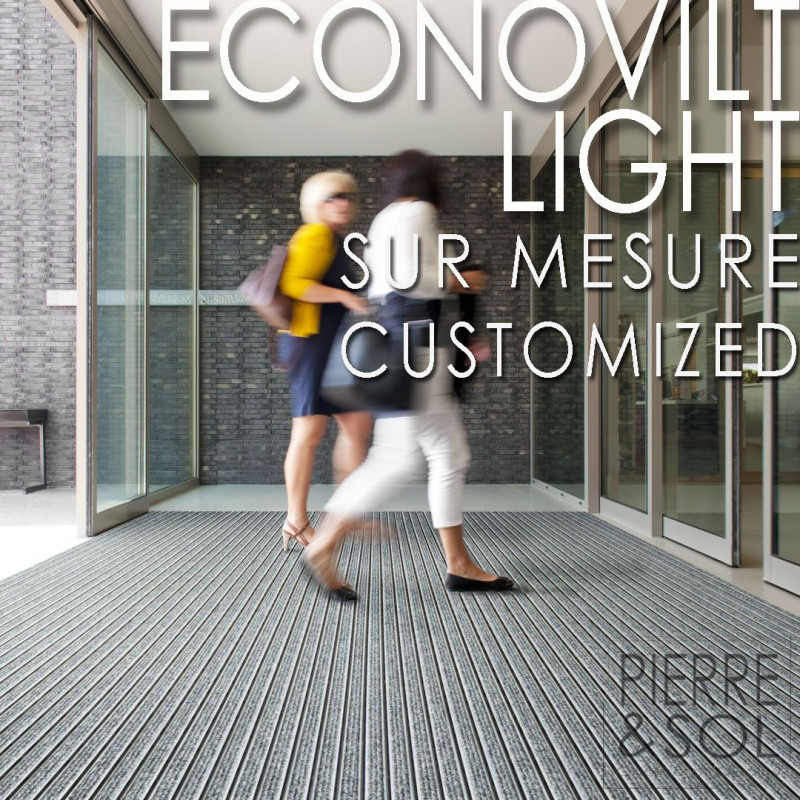

CUSTOM MADE EconoVilt Light Doormat

With or without doormat frame

Please indicate the external dimensions of the doormat OR the frame, we will calculate the correct measurements at all.

ATTENTION: The profiles are installed perpendicular to the direction of travel.

If necessary, depending on the depth ordered and the width of the aluminum profiles + intervals, i.e. +- 35 mm. We adapt the width of the intervals (3 or 4 or 5 or 6 mm) or add aluminum elements in order to obtain the desired depth.

Description and composition

Economical CUSTOM-MADE rollable entrance doormat to be fitted into a frame, made up of a supporting aluminum profile.

• The underside of the aluminum profile is entirely fitted with sound-absorbing cellular rubber intended to prevent the doormat from slamming on the floor.
• This roll-up doormat is made of aluminum profiles containing polypropylene felt inserts.
• Flexible 4mm black PVC strips connect the profiles. At regular intervals, the hard PVC strips are provided with perforations to remove dirt.
• The open structure ensures better absorption of moisture and dirt and allows dirt to be easily removed after rolling up the doormat.

This doormat is suitable for moderate or medium frequencies.

• Traffic: 1000 passages/day
• Locations: Office, store, home
• Warranties: 2 years

Production is made to measure and in one piece depending on the dimension in the direction of travel. Depending on the weight, the doormat can be divided without aesthetic consequences. If the width of the doormat exceeds 3 meters, the sections are placed next to each other, separated by an inverted connecting T.

The desired function and decor determine the design and division of the doormat.

The Economat Light has a height of 14, 19 or 23 mm and is placed in a smooth pit with a depth of 15, 20 or 25 mm respectively.

The corresponding built-in frames are made of anodized aluminum or brass.

If the doormat must be placed on the floor, an anodized aluminum bumper ramp is possible.

Given the materials used, we do not recommend installing underfloor heating below the pit.

CHOICE OF DOORMAT COLOR AND TEXTILE

Polypropylene Color Gray

Polypropylene Color Anthracite

Polypropylene Color Beige

CHOICE OF DOORMAT FRAME

When ordering the custom frame, it is necessary to indicate the external dimensions of the frame . Our technical services will calculate the useful dimensions of the doormat.

In order to compensate for the thickness of the doormat frame, it may be necessary to provide a re-surfacing (Egaline type) of the doormat bottom or a rubber underlay of a few mm, see on this page "RUB - Rubber underlay rubber for entrance doormats"

VER-ALU - Aluminum - Natural - Height 16 mm or 21 mm

Frames for entrance doormats in aluminum color, natural color.

Profiles of 21 x 16 mm 3 mm thick. Visible edge of 6 mm.

Profile height: 16 or 21 - Doormat recess height: 10 or 15.

PROMA-AN - Aluminum - Natural - Height 26 mm

Frames for entrance doormats in anodized aluminum color, natural color.

Profiles of 30 x 26 mm, 3 mm thick. Visible edge of 7 mm.

Profile height: 26 mm - Doormat installation height: 22 mm.

PROMA-AR - Aluminum - Stainless steel color - Height 26 mm

Frames for entrance doormats in INOX-colored aluminum.

30/26/3 mm profiles, the visible upper edge of which is 7 mm and fixings.

Profile height: 26 mm - Doormat installation height: 22 mm.

VER-ALU - Aluminum - Natural - Height 26 mm or 31 mm

Frames for entrance doormats in aluminum color, natural color.

Profiles of 31 x 26 mm, 3 mm thick. Visible edge of 6 mm.

Profile height: 26 or 31 mm - Doormat recess height: 20 or 25 mm.

PROMA-AZ - Aluminum - Anthracite Gray Color - Height 26 mm

Frames for entrance doormats in ANTHRACITE GRAY aluminum.

30/26/3 mm profiles, the visible upper edge of which is 7 mm and fixings.

Profile height: 26 mm - Doormat installation height: 22 mm.

VER-BLACK - Black lacquered aluminum - Height 26 or 31 mm

Frames for entrance doormats in black lacquered aluminum.

Profiles of 31/26 or 26/31 mm, the visible upper edge of which is 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the thickness of the frame is 6 mm, possibly provide an underlay to compensate for the thickness.

PROMA-MS - Brass - Natural - Height 26 mm

Frames for entrance doormats in natural brass .

30/26/3 mm profiles, the visible upper edge of which is 7mm.

Profile height: 26 mm - Doormat installation height: 22 mm.

VER-LAI - Brass - Height 26 or 31 mm

Frames for entrance doormats in brass-colored aluminum.

Profiles of 31/26 or 26/31 mm, the visible upper edge of which is 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the thickness of the frame is 6 mm, possibly provide an underlay to compensate for the thickness.

Technical details :

Textile :

• Textile height: 5 mm
• Textile width: 25 mm. Textile base width 27 mm
• Drying insert material: 100% polypropylene
• Textile structure: ribbed
• Colors: anthracite, gray and beige (light)

Aluminum profiles:

• Profiles: Height 10, 15 or 19 mm. Width 30 mm. Aluminum (at least 78% recycled). Spaced +- 4 mm.
• Connecting parts: Black hard PVC - Black crack resistant GST66901 PE LD
• Accessories: DIN916A2 M4x8 stainless steel bolts. PVC (10 mm) or aluminum finishing plates. Screw Stainless steel DIN7982 A2 C2, 9x13 H

The weight of the Economat Light is respectively 11, 14 or 15 kg/m2 for the three heights.

Testing:

In collaboration with Ghent University.

• Fire test: The doormat corresponds to category Dfl (impregnated version: Cfl) in the direction of travel, in accordance with EN ISO 11925-2 and EN ISO 9239-1.
• Smoke test: The doormat corresponds to category S2 (impregnated version: S1)
• Light resistance: Resistance to photodegradation. Performed according to ISO 105 B02(1994) with a result in category 6-7, where category 8 is the best result (2002).
• Wronz test: Heavy wear test. The doormat gets a value of 25,000, i.e. the equivalent of 500,000 to 1,200,000 passages. We can provide test reports 02-796C, 02-797C and 02-798C.
• Static load test: There is no restriction for the load caused by normal passages, trolleys and wheelchairs. For heavy traffic, turning movements must be avoided, otherwise the manufacturer always recommends the use of a protection panel.

The fire and smoke tests were carried out according to classification EN 13501-1 (2007+A1:2009). The products have not been impregnated or treated with a coating, these are always durable characteristics of the materials used.

Ecological footprint :

The manufacturer is committed to reducing the ecological footprint for the production of its products.

For this reason, the products are made from 100% reusable energy and with local materials. Most of the materials used for the production of this doormat are reusable and can get a new life.
