EconoVilt Light Doormat - Standard Format

WARNING: Profiles arise perpendicular to the direction of walking.

Description and composition

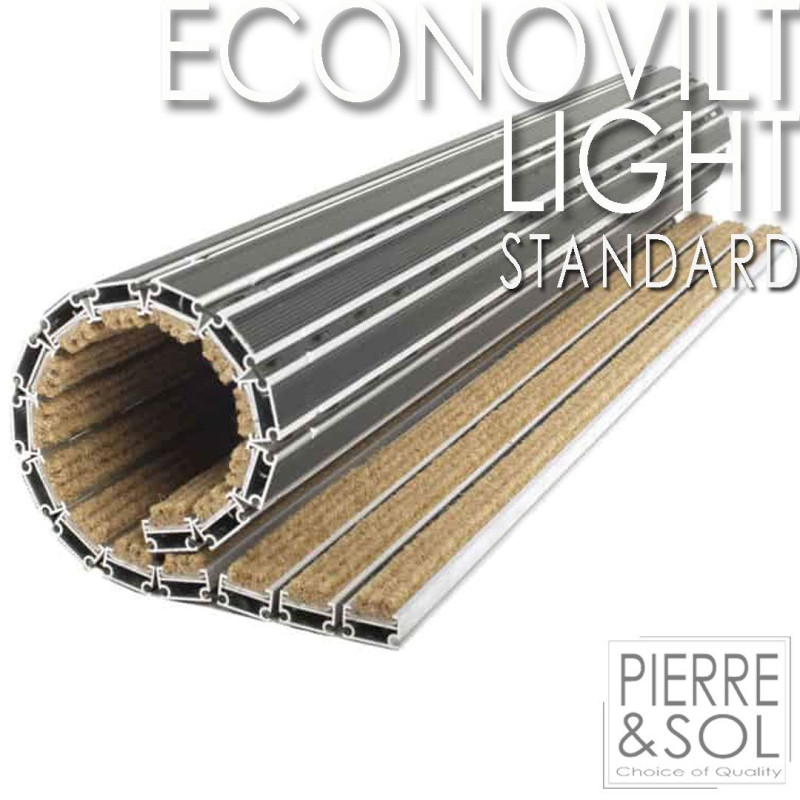

Economic entry doormat recessable to be embedded in a frame, consisting of an aluminum carrier profile.

• The underside of the aluminum profile is equipped entirely with cellular rubber to prevent the doormat from slamming to the ground.
• The aluminium profiles are separated by a 4 mm wide black pvc link.

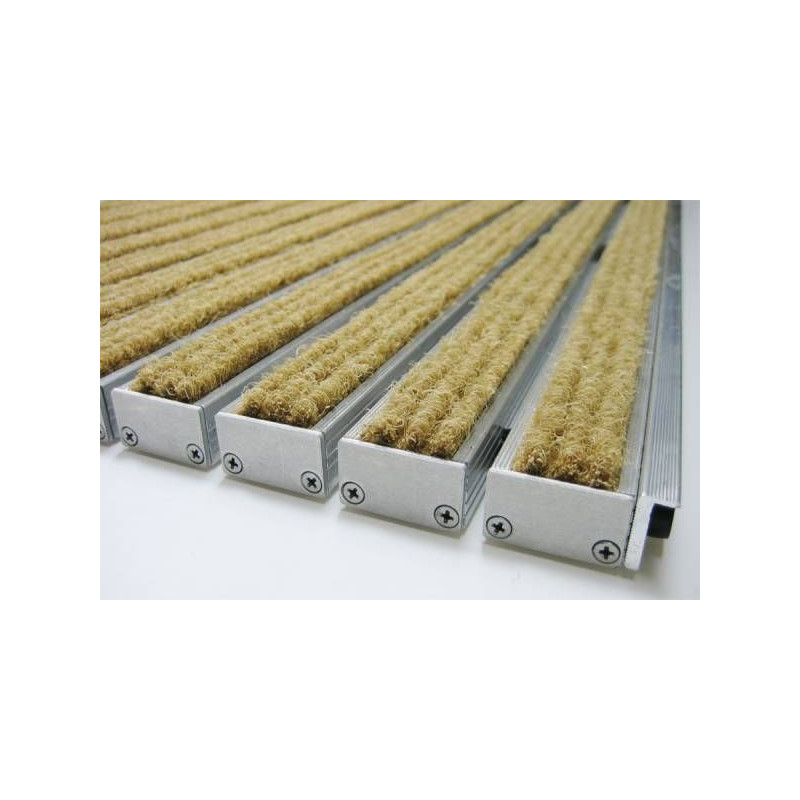

• This upwind doormat consists of aluminum profiles containing polypropylene felt inserts.
• Flexible PVC strips connect the profiles. At regular intervals, the hard PVC strips are perforated to remove dirt.
• The cellular rubber underside has a soundproofing effect.
• The open structure ensures better absorption of moisture and dirt and makes it easy to remove dirt after wrapping the doormat.

This doormat is suitable for moderate or medium frequencies.

• Traffic: 1000 passes per day
• Locations: Office, store, house
• Guarantees: 2 years

Production is done on demand and in a room depending on the size in the direction of the walk. Depending on the weight, the doormat can be divided without aesthetic consequences. If the width of the doormat exceeds 3 meters, the sections are placed next to each other, separated by an inverted connection T.

The desired function and décor determine the design and division of the doormat.

The Economat Light has a height of 12, 18 or 22 mm and is placed in a smooth pit with a depth of 15, 20 or 25 mm respectively.

The corresponding built-in frames are made of anodized aluminum or brass.

In case the doormat should be placed on the ground, an anodized aluminum anti-butt ramp is possible.

Given the materials used, we do not recommend installing ground heating below the pit.

CHOICE OF COLOUR AND TEXTILE OF THE DOORMAT

Polypropylene Color Grey

Polypropylene Color Anthracite

Polypropylene Color Beige

Technical details:

Textile:

• Textile height: 5 mm
• Textile width: 25 mm .  Textile base width 27 mm
• Drying insert material: 100% polypropylene
• Textile structure: ribbed
• Colors: anthracite, grey and beige (light)

Aluminium Profiles:

• Profiles: Height 10, 15 or 19 mm. Width 30 mm. Aluminium (min. 78% recycled). Spaced by 4 mm.
• Bonding Parts: Black Hard Pvc - Crack Resistant Black GST66901 PE LD
• Accessories: DIN916A2 M4x8 stainless steel bolts. PVC (10 mm) or aluminum finish plates. Stainless Steel Vis DIN7982 A2 C2, 9x13 H

The weight of the Economat Light is 11, 14 or 15 kg/m2 respectively for the three heights.

Tests:

In collaboration with the University of Ghent.

• Fire test: The doormat corresponds to the Dfl category (impregnated version: Cfl) in the direction of walking, in accordance with EN ISO 11925-2 and EN ISO 9239-1.
• Smoke test: The doormat corresponds to the category S2 (impregnated version: S1)
• Resistance to light: Resistance to photogradation. Made according to ISO 105 B02 (1994) with a result in category 6-7, where category 8 is the best result (2002).
• Wronz test: Big wear test. The doormat gets a value of 25,000, i.e. the equivalent of 500,000 to 1,200,000 passes. We can provide test reports 02-796C, 02-797C and 02-798C.
• Static load test: There are no restrictions on the load caused by normal passageways, trolleys and wheelchairs. For heavy traffic, it is necessary to avoid rotating movements, otherwise the manufacturer always advises the use of a protective panel.

The fire and smoke tests were carried out according to the EN 13501-1 (2007-A1:2009) classification. The products have not been impregnated or treated by a coating, they are still durable characteristics of the materials used.

Ecological footprint:

The manufacturer is committed to reducing the ecological footprint for the production of its products.

For this reason, the products are made from 100% reusable energy and with local materials. Most of the materials used to produce this doormat are reusable and can get a new life.
