The Variobox IT plus® is a new step forward in the development of highly invasive and retention systems
functional and efficient.
With its almost unbeatable value for money, this system dictates a new standard. Thanks to its flexibility in format, configuration and functionality, the Variobox IT plus system® adapts to any situation, either alone or in combination.
with the Controlbox IT plus®.

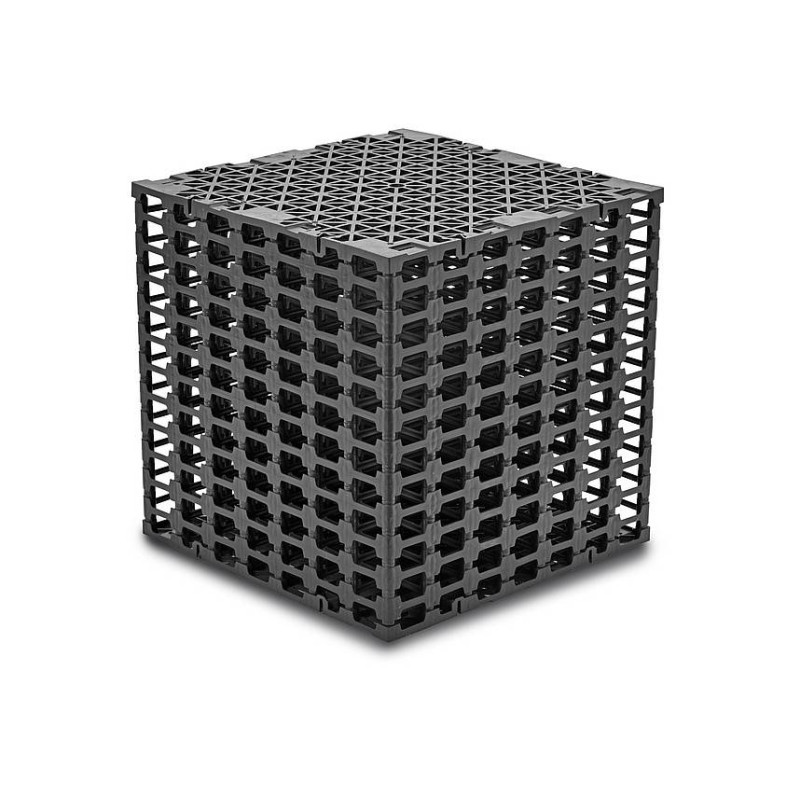

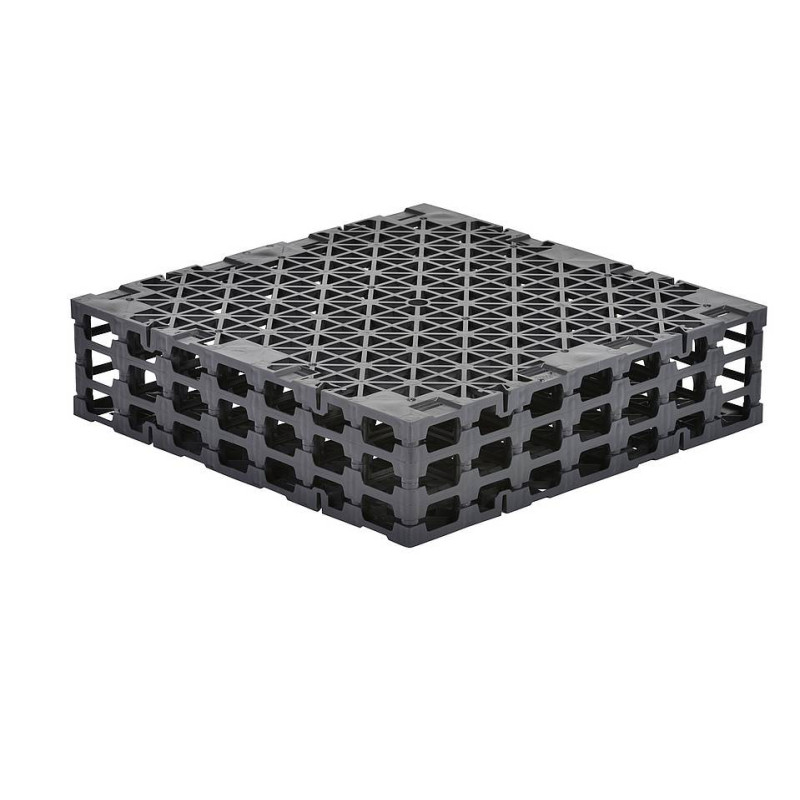

The Variobox IT-Plus is available in 4 heights of 200mm, 400mm and 600mm and each module is fully compatible to be able to modulate the desired height. Thanks to its very high load resistance, high retention capacity and innovative manufacturing system, the Variobox IT plussystem® can be applied not only to very large
depths, but also at shallow depths. This benefit translates into a reduction in the land to be excavated and thus a serious reduction in installation costs.

The system can of course also serve as a temporary retention pond. In this case, drainage needs to be regulated and the geotextile must be replaced by an EPDM film.

The Variobox IT plus® system differs from traditional drainage systems (gravel and drainage pipes) by its very advantageous purchase price, its superior quality, its longevity and above all its high capacity for capture and drainage.
Its other advantages are to be able to be assembled in height (up to DN 500) and in width, to have a very high resistance to loads at a shallow depth, a retention capacity of 95% and a 3D permeability.

In combination with controlboxe IT plus®, the Variobox IT plus® system is also easily inspected and maintained.

Benefits

• Resists very heavy loads
• Defying time
• Very high retention capacity (up 95%)
• Different assembly possibilities, three standard heights (20, 40 and 60 cm) and other heights on request
• Variobox IT plus® - Controlbox IT plus® - easy-to-inspect and maintain infiltration and retention system
• Easy installation
• Water can be injected to remove impurities and sediments into the waterand and evacuation areas
• Excellent value for money
• Connection: '110, '125, '160, '200, '315, '400, '500' (optional HDP plate)

Technical specifications

• Material - Recycled Polypropylene (PP)
• Weight per m3 - 50 kg
• Resistance - 600 kN/m2
• Storage capacity - 95%
• Transmission coefficient - 63%
• STANDARD BENOR prNBN T42-606
• Max stacking depending on the height of the element up to 4 units at most
• Maximum depth up to 5 m (deeper on request)
• Minimum temperature during installation: 5 degrees Celsius

Minimum load/depth resistance in guaranteed values (by the plant)

Maximum load/minimum installation depth (ground cover)
