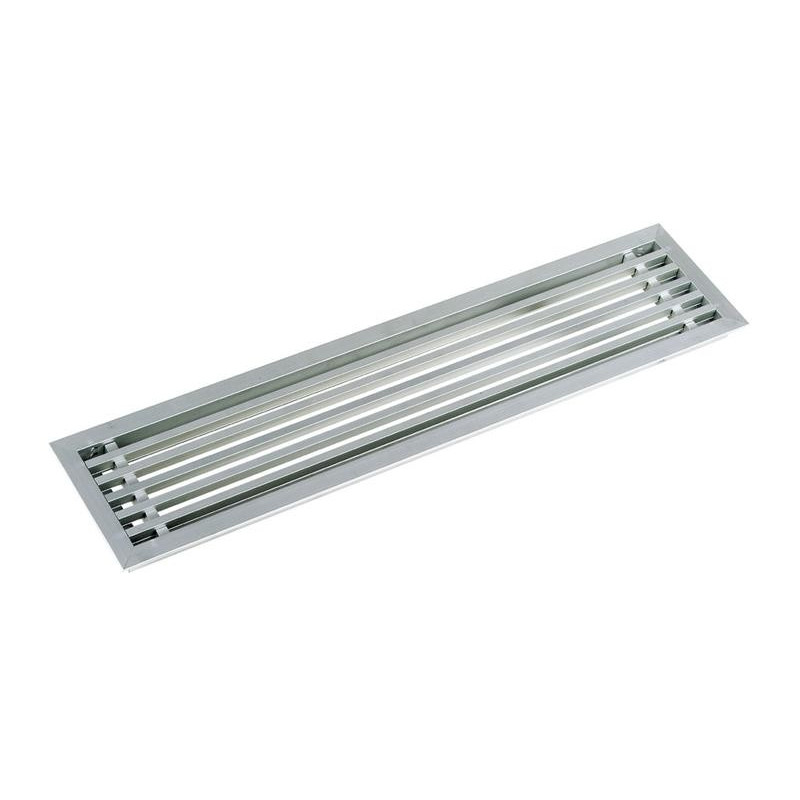

Renson 394 - CUSTOM-made radiator grille - Renson

Renson 394 - CUSTOM-made radiator grille - Renson

Do-it-yourself radiator cover CUSTOMIZED , easy to assemble using clips , does not support pedestrian traffic and is used for radiator or counter casings.

Material :

• Made of Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
  Note: does not support pedestrian crossing

Fixation :

Without fixing, simple assembly by clipping

Special application:

1. counters
2. Radiator casing

Dimensions:

• Space between blades: 9.5 mm
• Profile length: 3 or 6 meters
• 394/2
  Radiator cover length: min. 110mm - max. 3510mm
  Width of the radiator cover grille: Per grille part: min. 55mm - max. 220 mm / Coupled: max. 1055mm
• 394/3:
  Length of grid part: min. 100mm - max. 3500mm
  Grid part width: Per grid part: min. 45mm - max. 209 mm / Coupled: max. 1045mm
• Spacer length: 209 mm
• Blades in longitudinal direction
