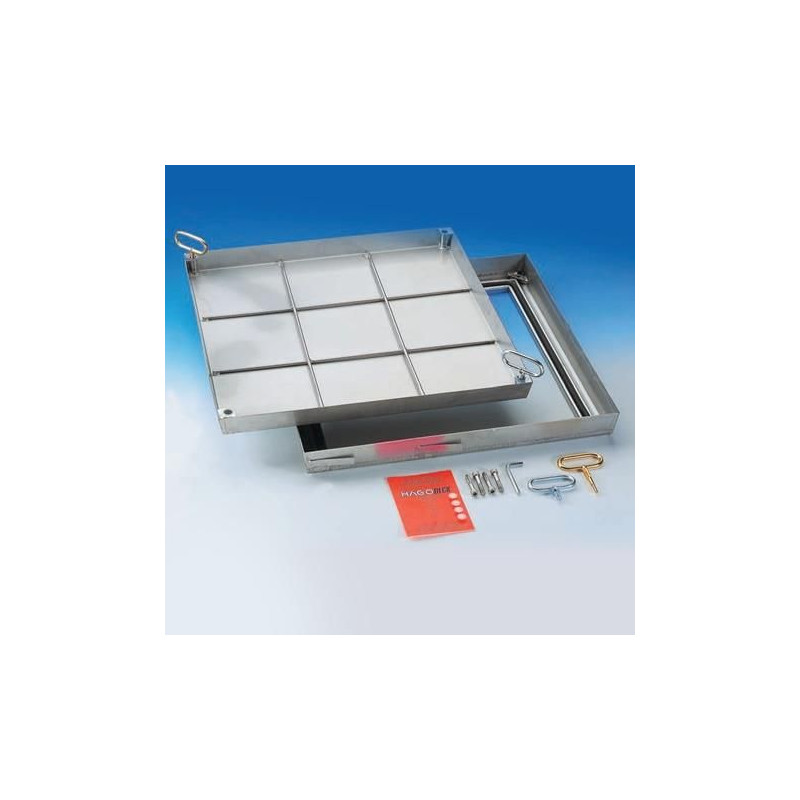

Stainless steel tileable cover - A 15 kN - HAGO
      • Stainless steel tileable cover - A 15 kN - HAGO

      Stainless steel tileable cover - A 15 kN - HAGO

      Tile cover made of 304 grade stainless steel formed cold, waterproof and odorproof.

      Outside dimensions:
      €672.00Tax Included
      HAGO BVE-FL 22
      9145385984673

      Stainless steel tileable cover - A 15 kN - HAGO

      Tile cover made of 304 grade stainless steel formed cold, waterproof and odorproof.

      Characteristics:

      • The edge and cover of the well are made of 304 grade 304 cold-formed stainless steel 2 mm thick.
      • Inner height of the lid: 27 mm.
      • The hatch is equipped with a twisted steel wire reinforcement inside.
      • The visible edge after filling is 4-5 mm.
      • Equipped with a high quality chemical resistant seal.
      • Flush-mounted height 50 mm.
      • Breaking load 15 kN according to EN 124.
      • Waterproof and odor resistant.
      • Very easy to open and close, frame and hatch connected by Allen screws.
      • Comes complete with all the necessary accessories and clear assembly instructions.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      BVE-FL 22 200 x 200 mm 330 x 330 mm
      BVE-FL 33 300 x 300 mm 430 x 430 mm
      BVE-FL 44 400 x 400 mm 530 x 530 mm
      BVE-FL 55 500 x 500 mm 630 x 630 mm
      BVE-FL 64 600 x 400 mm 730 x 530 mm
      BVE-FL 66 600 x 600 mm 730 x 730 mm
      BVE-FL 86 800 x 600 mm 930 x 730 mm
      BVE-FL 88 800 x 800 mm 930 x 930 mm
      BVE-FL 106 1000 x 600 mm 1130 x 730 mm

      Hago
      HAGO BVE-FL 22

      Specific References

      EAN13
      9145385984673
