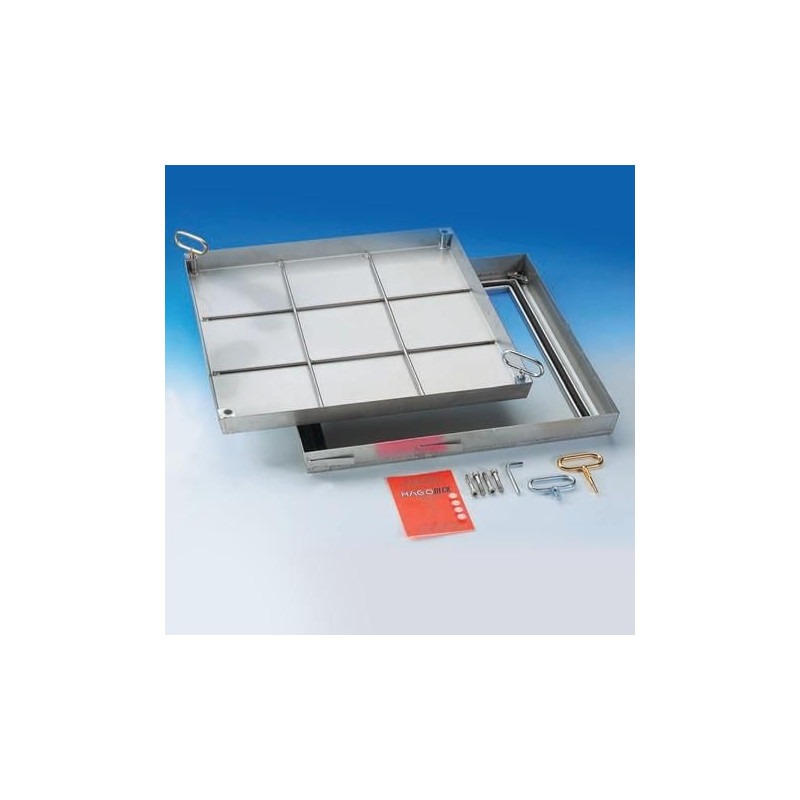

Stainless steel tileable cover - B 125 kN - HAGO
      • Stainless steel tileable cover - B 125 kN - HAGO

      Stainless steel tileable cover - B 125 kN - HAGO

      Tile cover made of 304 grade stainless steel formed cold, waterproof and odorproof.

      Outside dimensions:
      €672.00Tax Included
      HAGO BVE 22
      9145385984567

      Stainless steel tileable cover - B 125 kN - HAGO

      Tile cover made of 304 grade stainless steel formed cold, waterproof and odorproof.

      Characteristics:

      • The edge and cover of the well are made of 304 grade 304 cold-formed stainless steel 2 mm thick.
      • Inner height of the lid: 50 mm.
      • The hatch is equipped with a twisted steel wire reinforcement inside.
      • The visible edge after filling is 4-5 mm.
      • Equipped with a high quality chemical resistant seal.
      • Flush-mounted height: 75 mm.
      • Breaking load 125 kN according to EN 124.
      • Waterproof and odor resistant.
      • Very easy to open and close, frame and hatch connected by Allen screws.
      • Comes complete with all the necessary accessories and clear assembly instructions.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      BVE 22 200 x 200 mm 335 x 335 mm
      BVE 33 300 x 300 mm 435 x 435 mm
      BVE 44 400 x 400 mm 535 x 535 mm
      BVE 55 500 x 500 mm 635 x 635 mm
      BVE 64 600 x 400 mm 735 x 535 mm
      BVE 66 600 x 600 mm 735 x 735 mm
      BVE 86 800 x 600 mm 935 x 735 mm
      BVE 88 800 x 800 mm 935 x 935 mm
      BVE 106 1000 x 600 mm 1135 x 735 mm
      BVE 108 1000 x 800 mm 1135 x 935 mm
      BVE 110 1000 x 1000 mm 1135 x 1135 mm

      Hago
      HAGO BVE 22

      Specific References

      EAN13
      9145385984567
