Tileable cover in galvanized steel - A 15 kN - HAGO
Hot-dip galvanized steel tile lid, waterproof and odorproof.
HAGO BV-FL 22
9145385983805

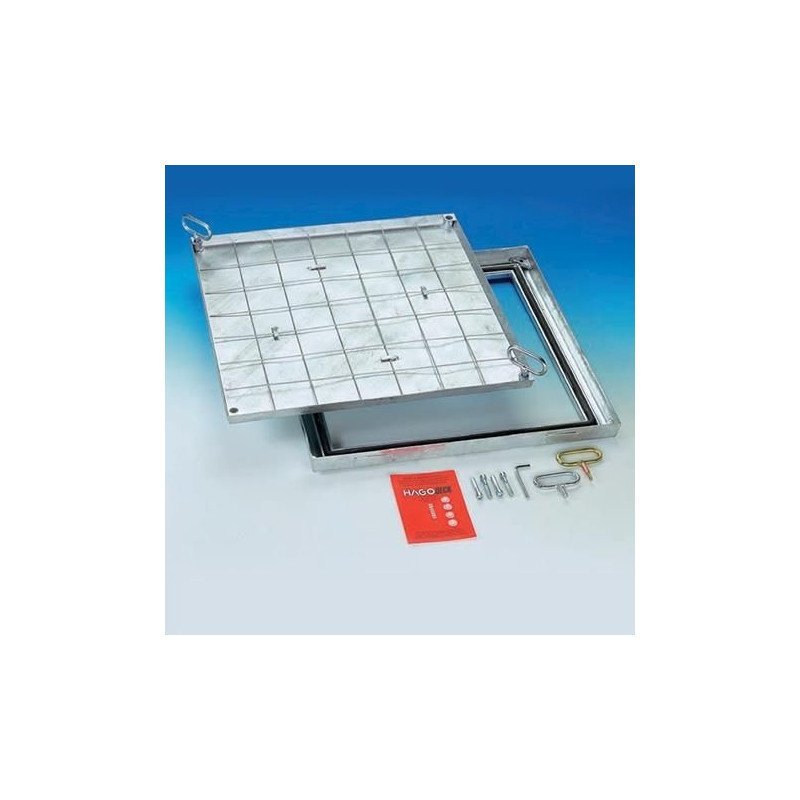

Tileable cover in galvanized steel - A 15 kN - HAGO
Hot-dip galvanized steel tile lid, waterproof and odorproof.
Characteristics:
- The lid made of cold-formed steel sheet 2 mm thick.
- Surface treatment: hot-dip galvanized.
- Equipped with twisted steel wire reinforcement inside.
- The visible edge after filling is 4-5 mm.
- Flush-mounted height 50 mm.
- Inner height of the lid: 27 mm.
- Breaking load 15 kN according to EN 124.
- Suitable for charging with passenger traffic (within walking distance).
- Waterproof and odor resistant.
- Equipped with a high quality chemical resistant seal.
- Very easy to open and close, frame and hatch connected by Allen screws.
- Comes complete with all the necessary accessories and clear assembly instructions.
Size:
| Reference | Interior dimensions | External dimensions |
|---|---|---|
| BV-FL 22 | 200 x 200 mm | 330 x 330 mm |
| BV-FL 33 | 300 x 300 mm | 430 x 430 mm |
| BV-FL 44 | 400 x 400 mm | 530 x 530 mm |
| BV-FL 55 | 500 x 500 mm | 630 x 630 mm |
| BV-FL 64 | 600 x 400 mm | 730 x 530 mm |
| BV-FL 66 | 600 x 600 mm | 730 x 730 mm |
| BV-FL 86 | 800 x 600 mm | 930 x 730 mm |
| BV-FL 88 | 800 x 800 mm | 930 x 930 mm |
| BV-FL 106 | 1000 x 600 mm | 1130 x 730 mm |
HAGO BV-FL 22
Specific References
- EAN13
- 9145385983805
Quelles sont les déclinaisons et prix pour Tileable cover in galvanized steel - A 15 kN - HAGO ?
| Variante | Outside dimensions | Prix HT | Prix TTC | Réference | EAN-13 | Stock* disponible |
|---|---|---|---|---|---|---|
| Tileable cover in galvanized steel - A 15 kN | 33 x 33 cm | £278.62 | £334.34 | HAGO BV-FL 22 | 9145385983805 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 53 x 53 cm | £339.56 | £407.47 | HAGO BV-FL 44 | 9145385983829 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 63 x 63 cm | £391.80 | £470.16 | HAGO BV-FL 55 | 9145385983836 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 73 x 53 cm | £365.68 | £438.82 | HAGO BV-FL 64 | 9145385983843 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 73 x 73 cm | £404.86 | £485.84 | HAGO BV-FL 66 | 9145385983850 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 93 x 73 cm | £483.22 | £579.87 | HAGO BV-FL 86 | 9145385983867 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 93 x 93 cm | £570.29 | £684.35 | HAGO BV-FL 88 | 9145385983874 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 113 x 73 cm | £592.06 | £710.47 | HAGO BV-FL 106 | 9145385983881 | Arrivage |
| Tileable cover in galvanized steel - A 15 kN | 43 x 43 cm | £287.32 | £344.79 | HAGO BV-FL 33 | 9145385983812 | Arrivage |
*Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
