      Galvanized steel tile lid - B 125 KN - HAGO

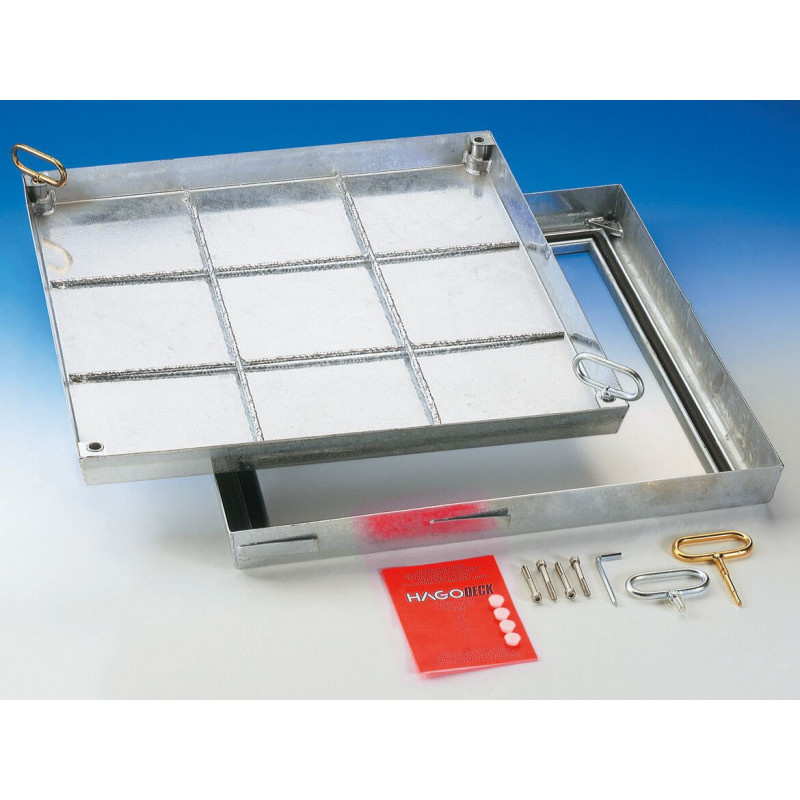

      Hot-dip galvanized steel tile lid, waterproof and odorproof.

      Outside dimensions:
      €384.00Tax Included
      HAGO BV 33
      9145385983492

      Galvanized steel tile lid - B 125 KN - HAGO

      Hot-dip galvanized steel tile lid, waterproof and odorproof.

      Characteristics:

      • The edge and lid of the pit are made of cold-formed steel sheet 2 mm thick.
      • Surface treatment: hot-dip galvanized.
      • Breaking load: 125 kN according to EN 124.
      • Flush-mounted height: 75 mm.
      • Inner height of the lid: 50 mm.
      • The hatch is equipped with a twisted steel wire reinforcement inside.
      • Guaranteed smell and impermeability.
      • The visible edge after filling is 4-5 mm.
      • Equipped with a high quality chemical resistant seal.
      • Very easy to open and close, frame and hatch connected by Allen screws.
      • Comes complete with all the necessary accessories and clear assembly instructions.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      BV 33 300 x 300 mm 435 x 435 mm
      BV 44 400 x 400 mm 535 x 535 mm
      BV 45 450 x 450 mm 585 x 585 mm
      BV 55 500 x 500 mm 635 x 635 mm
      BV 64 600 x 400 mm 735 x 535 mm
      BV 66 600 x 600 mm 735 x 735 mm
      BV 86 800 x 600 mm 935 x 735 mm
      BV 88 800 x 800 mm 935 x 935 mm
      BV 106 1000 x 600 mm 1135 x 735 mm
      BV 108 1000 x 800 mm 1135 x 935 mm
      BV 110 1000 x 1000 mm 1135 x 1135 mm

      Hago
      HAGO BV 33

      Specific References

      EAN13
      9145385983492
