Stainless steel tileable lid - Fire resistant - B 125 kN - HAGO
Stainless steel tile lid.
Fire resistant and waterproof and odor resistant.
HAGO BVE-F90 33
9145385983034

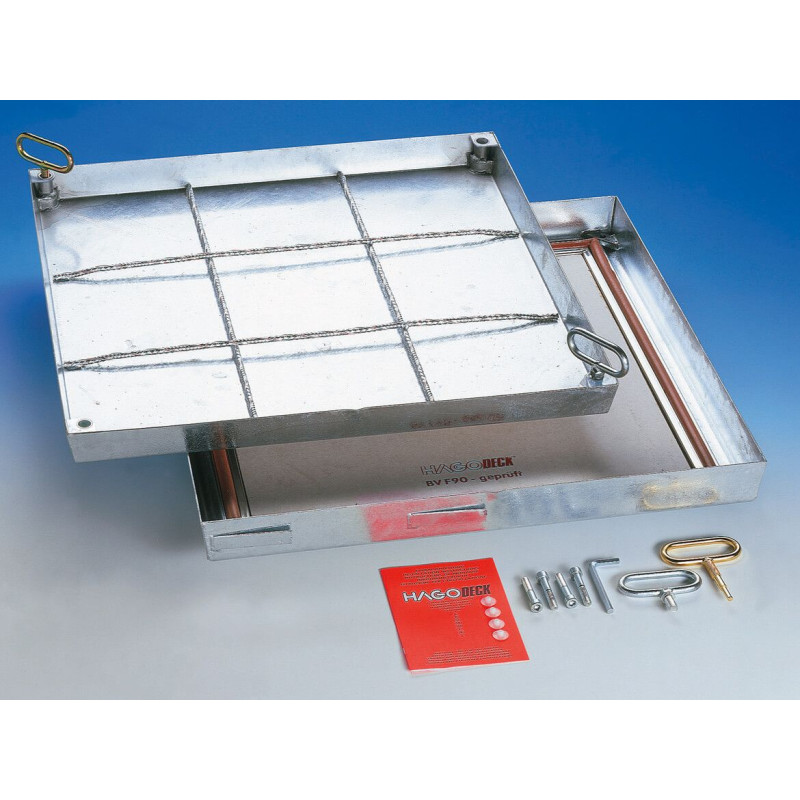

Stainless steel tileable lid - Fire resistant - B 125 kN - HAGO
Stainless steel tile lid. Fire resistant and waterproof and odor resistant.
Characteristics:
- The edge of the manhole and the tile cover are made of cold-formed steel sheet 2 mm thick.
- The hatch is equipped with a twisted steel wire reinforcement inside.
- The visible edge after filling is 4-5 mm.
- Equipped with high quality fire resistant seal.
- Equipped with a stainless steel Z profile containing a removable fire plate 90 minutes.
- Flush-mounted height 75 mm.
- Breaking load 125 kN according to EN 124.
- Guaranteed smell and impermeability.
- Very easy to open and close, frame and hatch connected by Allen screws.
- Standard hollow head screw.
- Comes complete with all the necessary accessories and clear assembly instructions.
Size:
| Reference | Interior dimensions | External dimensions |
|---|---|---|
| BVE-F90 33 | 300 x 300 mm | 435 x 435 mm |
| BVE-F90 44 | 400 x 400 mm | 535 x 535 mm |
| BVE-F90 55 | 500 x 500 mm | 635 x 635 mm |
| BVE-F90 64 | 600 x 400 mm | 735 x 535 mm |
| BVE-F90 66 | 600 x 600 mm | 735 x 735 mm |
| BVE-F90 86 | 800 x 600 mm | 935 x 735 mm |
| BVE-F90 88 | 800 x 800 mm | 935 x 935 mm |
| BVE-F90 106 | 1000 x 600 mm | 1135 x 735 mm |
| BVE-F90 108 | 1000 x 800 mm | 1135 x 935 mm |
| BVE-F90 110 | 1000 x 100 mm | 1135 x 1135 mm |
HAGO BVE-F90 33
Specific References
- EAN13
- 9145385983034
Quelles sont les déclinaisons et prix pour Stainless steel tileable lid - Fire resistant - B 125 kN - HAGO ?
| Variante | Outside dimensions | Prix HT | Prix TTC | Réference | EAN-13 | Stock* disponible |
|---|---|---|---|---|---|---|
| Stainless steel tileable lid - Fire resistant - B 125 kN | 43.5 x 43.5 cm | €1,191.75 | €1,430.10 | HAGO BVE-F90 33 | 9145385983034 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 53.5 x 53.5 cm | €1,569.75 | €1,883.70 | HAGO BVE-F90 44 | 9145385983041 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 63.5 x 63.5 cm | €1,748.25 | €2,097.90 | HAGO BVE-F90 55 | 9145385983058 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 73.5 x 53.5 cm | €1,779.75 | €2,135.70 | HAGO BVE-F90 64 | 9145385983065 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 73.5 x 73.5 cm | €2,094.75 | €2,513.70 | HAGO BVE-F90 66 | 9145385983072 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 93.5 x 73.5 cm | €2,546.25 | €3,055.50 | HAGO BVE-F90 86 | 9145385983089 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 93.5 x 93.5 cm | €2,976.75 | €3,572.10 | HAGO BVE-F90 88 | 9145385983096 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 113.5 x 73.5 cm | €3,255.00 | €3,906.00 | HAGO BVE-F90 106 | 9145385983102 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 113.5 x 93.5 cm | €3,459.75 | €4,151.70 | HAGO BVE-F90 108 | 9145385983119 | Arrivage |
| Stainless steel tileable lid - Fire resistant - B 125 kN | 113.5 x 113.5 cm | €3,858.75 | €4,630.50 | HAGO BVE-F90 110 | 9145385983126 | Arrivage |
*Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
