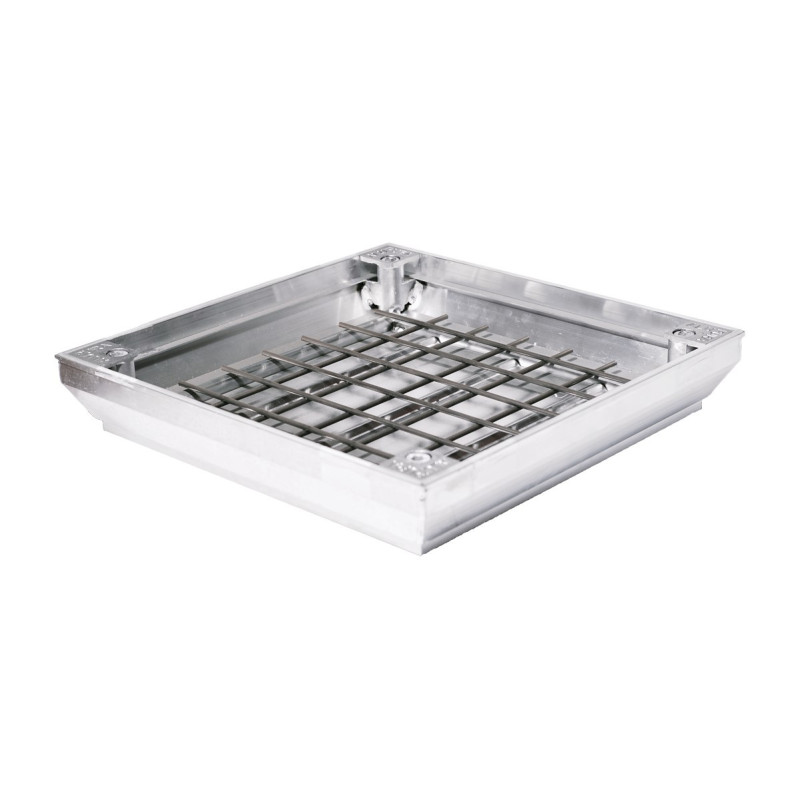

Alupura lids , made of aluminum alloy , consist of a lid and a frame.
The hollow-shaped lid is fitted with a base plate and is reinforced with a mesh frame for perfect fixing of the covering to be placed.

Supplied with a pre-mounted synthetic dustproof profile which, during installation, keeps the cover and frame equidistant and prevents the penetration of residues.
A gasket placed under the lid ensures the lid is watertight. The lid is screwed at each corner using four hex bolts and is therefore securely fastened.

Practical, the 2-in-1 hex keys allow you to screw or unscrew the bolts and also to lift or replace the cover in the frame.
The aluminum corner profiles ensure a perfect connection with the tiles and an aesthetically pleasing finish. PVC caps prevent dirt from accumulating in the hexagonal bolt slots and provide added aesthetic value.

Benefits :

• Tileable cover made of welded aluminum profiles
• With neoprene seal and mesh reinforcement
• Bolted lid, waterproof and odor-proof
• Pre-mounted dustproof profile to protect the cover during installation
• Operating and lifting keys and finishing caps included

Features :

• Strength class L 15 (The test load is L 50 for a C30/37 quality concrete infill)
• For filling concrete or tiles with a thickness of 15 mm
• The recessed height is 7.5 cm

FAQ - Frequently Asked Questions

1. Is the cover compatible with all tiles?
   Yes, you can use any type of outdoor tile, porcelain stoneware, natural stone, mosaic… provided you respect the maximum thickness recommended by ACO.
2. Can you walk on it once the cover is tiled?
   Yes, the product is designed to withstand pedestrian traffic. For heavier loads (vehicles), other suitable ACO ranges are available.
3. Is the system truly waterproof?
   Yes, the perimeter seal ensures a perfect seal, preventing water from seeping into the frame or under the tiles.
4. How do I access the drain after installation?
   The cover remains removable. Simply remove the tiled slab using the provided gripping points, without damaging the finish.
5. Can the cover be installed indoors?
   It is primarily designed for outdoor use, but can be used indoors in technical or humid areas.
6. What is the available depth for the tiling?
   The depth depends on the specific Alupura model. Generally, it allows for the installation of the tile and adhesive without overflow.
7. Is the lid frost-resistant?
   Yes, ACO materials are suitable for outdoor conditions, including frost and temperature variations.
8. Is this model suitable for a swimming pool?
   Yes, it is ideal for pool decks as it ensures discreet integration and impeccable waterproofing.
