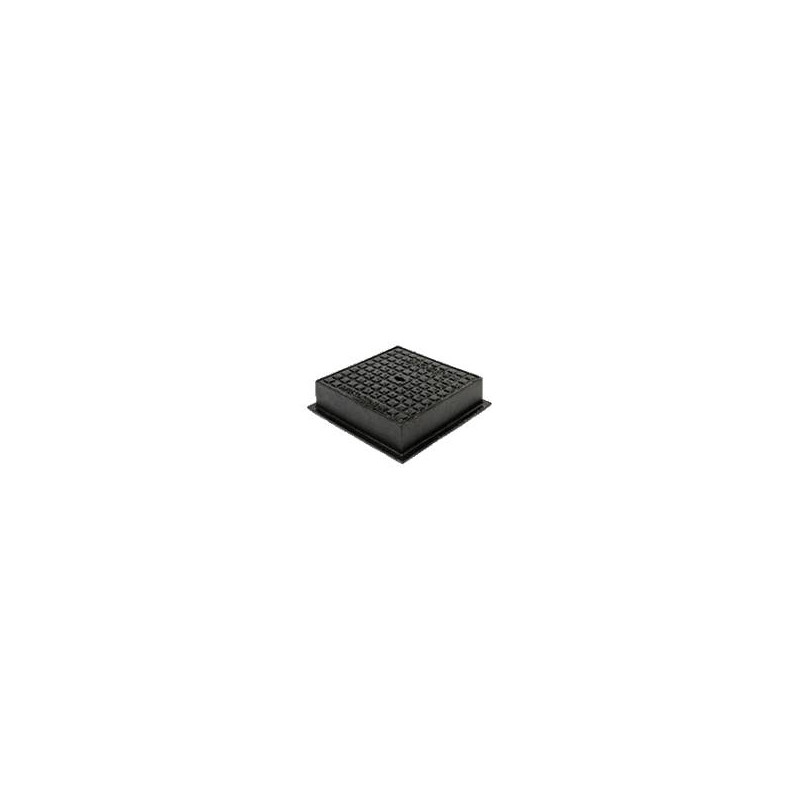

Cast iron hydraulic frame D400

Curb cover with hydraulic closure. The edge of the U-shaped frame must be filled with water or sand to obtain a seal.

Load of 400 kN during testing.

Outside dimensions:
2 Items
€355.16Tax Included
DES IJD040040
9145385970430

D400 cast iron looks and hydraulic lids

Non-slip cast iron sidewalk cover with hydraulic closure. The edge of the U-shaped frame must be filled with water or sand to obtain a seal. Ductile cast iron cover with a charge class according to EN124-D400kN.

Characteristics of ductile cast iron

there ductile cast owes its remarkable mechanical characteristics to the spheroidal form of graphite it contains:

  • traction resistance
  • shock resistance
  • high elastic limit
  • Significant lengthening

These characteristics can be further improved by mastering the chemical analysis and thermal treatment of the metal matrix.
Ductile melting, however, retains the traditional mechanical qualities of the casts, derived from their high carbon content:

  • compression resistance
  • moulding ability
  • resistance to abrasion
  • usinability
  • resistance to fatigue

400 kN load during testing.

The 2015 EN124 standard applies. It determines the technical characteristics of coronation and closure devices for traffic areas used by pedestrians and vehicles. It specifies the principles of construction, standard testing, marking and quality control.

The manufacturing quality of the cast ensures an exemplary durability of the products. In addition, the cast is indefinitely 100% recyclable. One way to reduce the environmental impact.

Table of external and interior dimensions

Ref. Article

 Frame Dimensions

 Free opening

 Heights

 loaded down

IJD040040 420x420 mm 300x300 mm 100 mm D400
IJD050050 520x520 mm 400x400 mm 100 mm D400
IJD060060 620x620 mm 500x500 mm 100 mm D400
IJD070070 720x720 mm 600x600 mm 100 mm D400
IJD080080 800x800 mm 690x690 mm 100 mm D400
IJD090090 900x900 mm 790x790 mm 100 mm D400
IJD100100 1000X1000 mm 890x890 mm 100 mm D400
IJD110110 1100X1100 mm 990x990 mm 100 mm D400
IJD120120 1200X1200 mm 1090x1090 mm 100 mm D400
Defining load resistance classes
Classe résistance A15

Places only accessible to pedestrians and cyclists.

Break load: 15 kN/m2 or 1.5 Tonnes/m2

Résistance charge B125

Sidewalks, pedestrian areas, private parking lots and multi-storey car parking. V max: 20 km/h

Break load: 125 kN/m2 or 12.5 Tonnes/m2

Résistance charge C250

Pedestrian streets and car parks. Places for cars and vans travelling at moderate speeds.

Break load: 250 kN/m2 or 25 tonnes/m2

Résistance charge D400

Traffic lanes and parking areas for all types of road vehicles. V max: 50 km/h

Break load: 400 kN/m2 or 40 Tonnes/m2

Résistance charge E600

Areas subject to high aasole loads such as ports and industrial areas. V max - 50 km/h

Break load: 600 kN/m2 or 60 tonnes/m2

Résistance charge F900

Areas subject to particularly high aaisle loads such as aircraft runways or industrial intensive passing areas.

Break load: 900 kN/m2 or 90 Tonnes/m2

Pierre et Sol
DES IJD040040
2 Items

Specific References

EAN13
9145385970430
