Curb cover with hydraulic closure C250

C250 cast iron looks and hydraulic lids

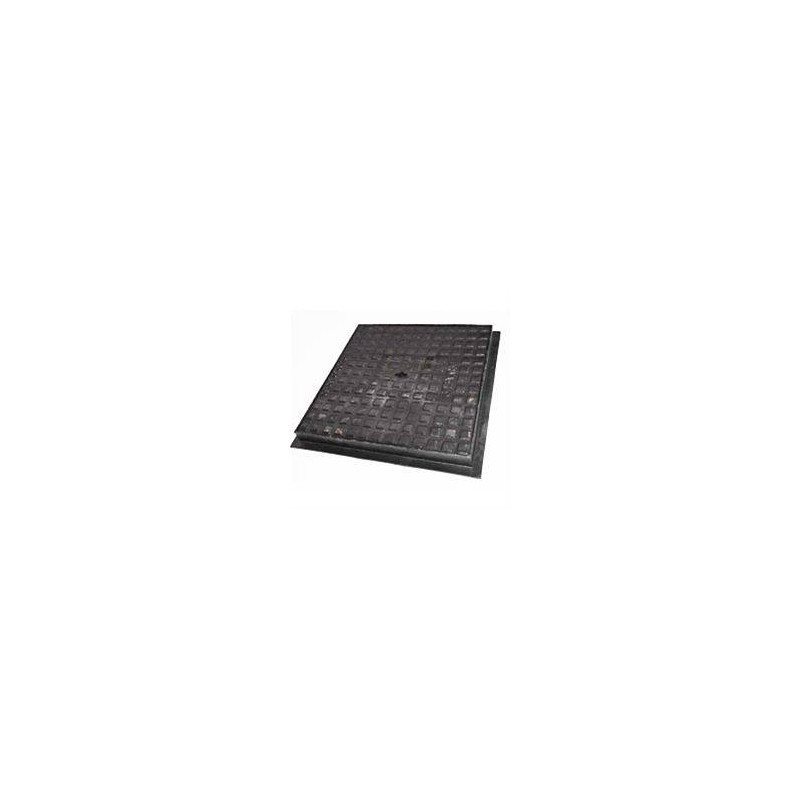

Non-slip lid with hydraulic closure. The edge of the U-shaped frame must be filled with water or sand to obtain a seal. Ductile cast iron cover with a charge class according to EN124-C250kN.

Characteristics of ductile cast iron

there ductile cast owes its remarkable mechanical characteristics to the spheroidal form of graphite it contains:

• traction resistance
• shock resistance
• high elastic limit
• Significant lengthening

These characteristics can be further improved by mastering the chemical analysis and thermal treatment of the metal matrix.
Ductile melting, however, retains the traditional mechanical qualities of the casts, derived from their high carbon content:

• compression resistance
• moulding ability
• resistance to abrasion
• usinability
• resistance to fatigue

Charge of 250 kN during testing.

The 2015 EN124 standard applies. It determines the technical characteristics of coronation and closure devices for traffic areas used by pedestrians and vehicles. It specifies the principles of construction, standard testing, marking and quality control.

The manufacturing quality of the cast ensures an exemplary durability of the products. In addition, the cast is indefinitely 100% recyclable. One way to reduce the environmental impact.

Table of external and interior dimensions

Defining load resistance classes

The class of closure devices and crowning devices suitable for use depends on the place of installation. The various places of installation have been divided into classes. Choosing the right class is the installer's responsibility. A higher class should be chosen where there is doubt about which class to use.

	Places only accessible to pedestrians and cyclists. Break load: 15 kN/m2 or 1.5 Tonnes/m2
	Sidewalks, pedestrian areas, private parking lots and multi-storey car parking. V max: 20 km/h Break load: 125 kN/m2 or 12.5 Tonnes/m2
	Pedestrian streets and car parks. Places for cars and vans travelling at moderate speeds. Break load: 250 kN/m2 or 25 tonnes/m2
	Traffic lanes and parking areas for all types of road vehicles. V max: 50 km/h Break load: 400 kN/m2 or 40 Tonnes/m2
	Areas subject to high aasole loads such as ports and industrial areas. V max - 50 km/h Break load: 600 kN/m2 or 60 tonnes/m2
	Areas subject to particularly high aaisle loads such as aircraft runways or industrial intensive passing areas. Break load: 900 kN/m2 or 90 Tonnes/m2
