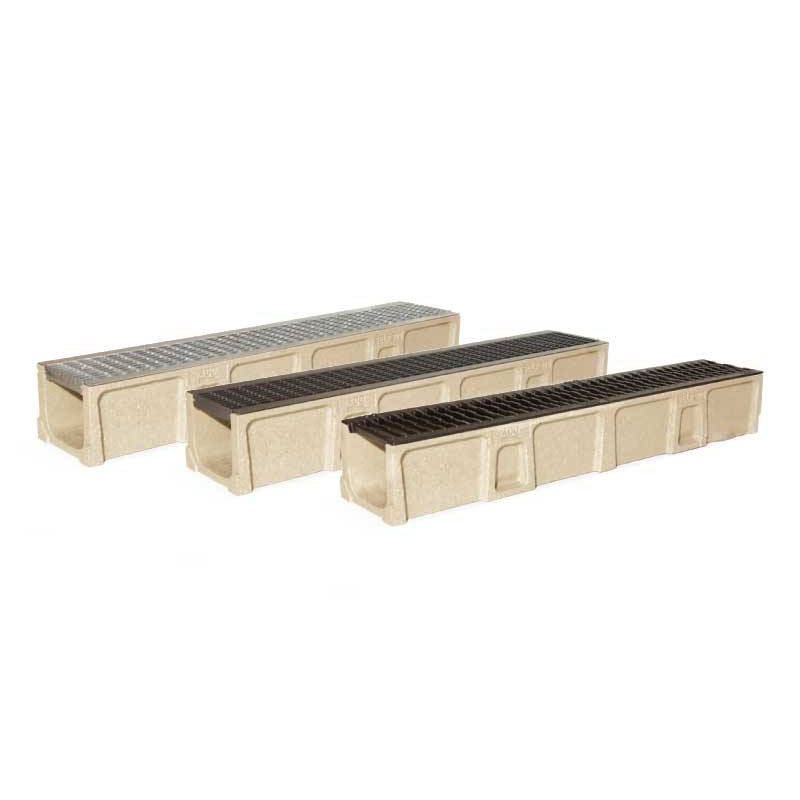

As its name suggests, the Large is wider than other ACO Self linear drainage systems. With an external width of 20 cm, this channel is designed for draining larger and steeply sloping surfaces, such as basement garage entrances. Thanks to its high collection and drainage capacity , it eliminates any chance of wastewater accumulation. This channel primarily offers functional advantages, but it is also aesthetically pleasing . The clip-on grates integrate seamlessly with any type of surface .

The Large is available with a galvanized steel grating (natural or anthracite coated) with a 28/13 mesh size for optimal drainage, or with a cast iron walkway grating . All three are standardized for resistance class B 125 kN .

Benefits :

• No risk of residual water thanks to the superimposed galvanized steel grating (a mesh width of 28/13).
• Overlapping grids that blend seamlessly with all types of flooring.
• Greater water collection and drainage capacity.

Features :

• Length: 100 cm, Sand collector: 50 cm
• Interior width: 15 cm
• Width: 20 cm
• Height: Sand trap 40.9 cm, Grating 14.9 cm, Anthracite and Cast Iron 15.2

FAQ - Frequently Asked Questions

1. What is the purpose of a larger drainage channel?
   A wide drainage channel is designed for areas where large volumes of water need to be evacuated. It allows for faster and more efficient drainage than a standard channel.
2. Is this drainage channel suitable for vehicle traffic?
   Yes, provided you choose a grate suited to the required load class (B125, C250, D400, etc.). The channel body is designed to withstand these stresses with the appropriate equipment.
3. Can it be installed by oneself?
   The installation is accessible to a good handyman, but for areas with vehicles or professional use, it is recommended to call on a professional to guarantee the conformity and durability of the work.
4. Is it compatible with grilles other than those from ACO?
   It is strongly recommended to use compatible ACO grilles to ensure a perfect fit, optimal safety and adherence to advertised performance.
5. How to maintain an ACO drainage channel?
   Simple, regular cleaning (removal of leaves, sand, and debris) is sufficient. Access to the channel allows for quick and efficient maintenance without complex dismantling.
