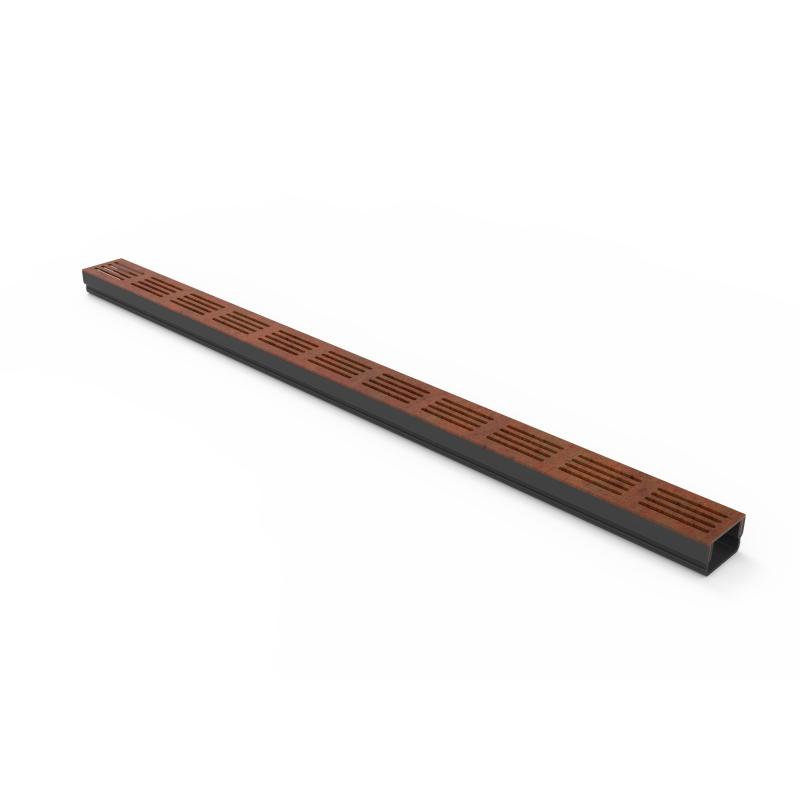

The StarDrain 3XS MINI ECO LINE is a low-height channel made of a synthetic material (PVC) channel and a designer Corten steel grate.

This gutter is installed around the house, where there is no car traffic.

You can drain water from the gutter, for example, into the sewer or an infiltration system, using a side or bottom drainage hole. By draining water into an infiltration system, you're also taking lasting action and improving the soil's water balance. Pierre et Sol offers Gully infiltration sumps and other types.

This channel has the option of a side and bottom outlet. The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.

For the lower outlet, drill a Ø75 mm hole in the bottom of the gutter using a hole saw.

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Lightweight channel element made of synthetic material.
• Easy to install.
• Easily removable grid.
• Available in three colors.
• Only 6.5 cm outside width.
• Only 3.5 cm in height.
• Resistance class A 15 (pedestrian only).

Dimensions:

Gutter:

• Length: 1 m
• External width: 6.5 cm
• Height: 3.5 cm

Corner element:

• Length: 15.9 cm
• External width: 6.5 cm
• Height: 3.5 cm

T-piece:

• Length: 18.2 cm / 15.7 cm
• External width: 6.5 cm
• Height: 3.5 cm

Colors:

• Aluminum .
• Black Aluminum .
• Corten steel.

Advice :

• If the flooring is new, we recommend stretching a wire to determine the level. In this case, always place the grid 3 mm below the wire.
• If you are placing the gutter in an existing covering, we recommend making a wooden template of the desired height for flushing.
• If the gutter is laid along a vertical wall, the edge of the junction piece must be cut on that side.

Attention :

Avoid odors by installing a trap at the sewer connection.

Accessories available separately, see on this page .
