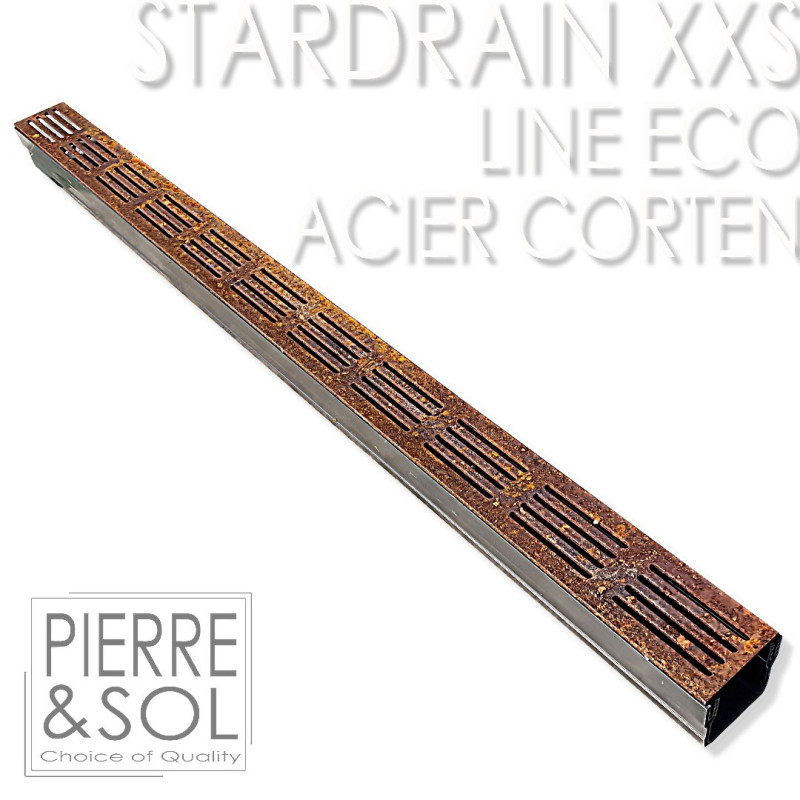

Drain XXS MINI L 6.5 cm Corten steel grid - StarDrain - LINE ECO

Drain XXS MINI L 6.5 cm Corten steel grid - StarDrain - LINE ECO

The StarDrain MINI ECO LINE is a low-height drainage channel made up of a synthetic material channel (PVC) and a designer aluminum grille.

This gutter is installed around the home, where there is no car traffic.

You can evacuate water from the gutter, for example, to the sewer or an infiltration system, using a side or bottom drain port. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. Pierre et Sol offers Gully infiltration sumps or others.

This gutter has the option of a side and bottom outlet. The side outlet is integrated into the end plate, the bottom outlet into a connection fitting.

For the lower outlet, drill a Ø45 mm hole in the bottom of the gutter using a hole saw.

Benefits :

• A discreet and elegant drainage solution for the terrace.
• Lightweight channel element made of synthetic material.
• Easy to install.
• Easily removable grill.
• Available in three colors.
• Only 6.5 cm exterior width.
• Only 6.3 cm in exterior height.
• Resistance class A 15 (pedestrian only).

Dimensions:

Gutter:

• Length: 1m
• Exterior width: 6.5 cm
• Exterior height: 6.3 cm

Corner element:

• Length: 15.9 cm
• Exterior width: 6.5 cm
• Exterior height: 6.3 cm

T-piece:

• Length: 18.2 cm / 15.7 cm
• Exterior width: 6.5 cm
• Exterior height: 6.3 cm

Colors:

• Aluminum .
• Black Aluminum .
• Corten steel.

Advice :

• If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire
• If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
• If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.

Attention :

Avoid odors by installing a siphon at the sewer connection.

Accessories available separately, see on this page .
