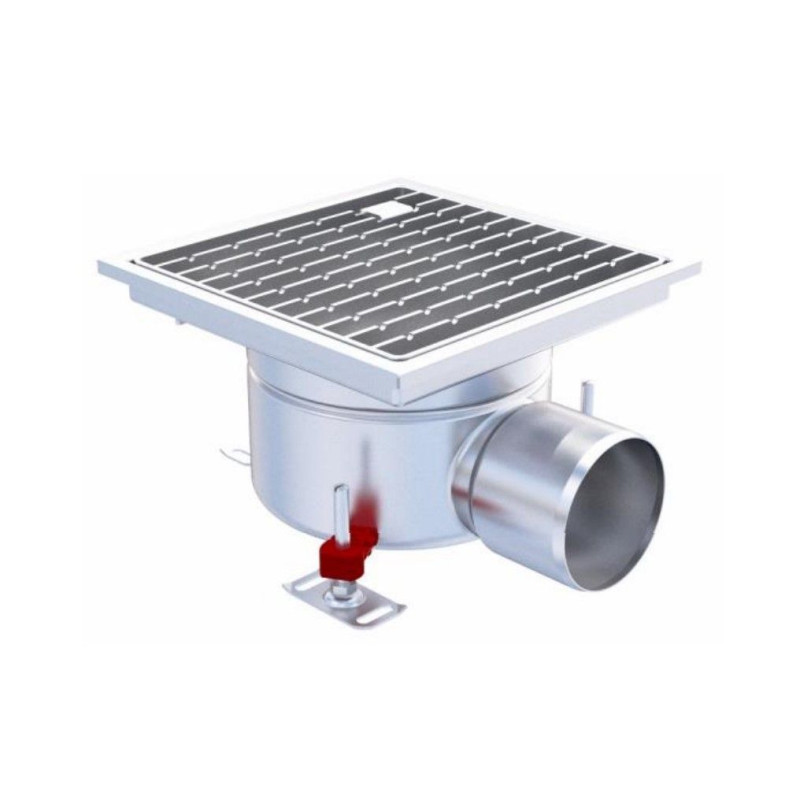

      Telescopic floor drain - Straight edge - Glued collar - ACO
      • Telescopic floor drain - Straight edge - Glued collar - ACO

      Telescopic floor drain - Straight edge - Glued collar - ACO

      Telescopic floor drain from the ACO range with straight edge and glue-on collar.

      format:
      Model:
      Grid:
      CHF542.06Tax Included
      ACO 2LET200/75H-PQ-VE
      9145385981191

      Telescopic floor drain - Straight edge - Glued collar - ACO

      Telescopic floor drain from the ACO range with straight edge and glue-on collar.

      Benefits :

      • Telescopic floor drain with horizontal outlet.
      • Hygienic design complies with EN 1672, EN ISO 14159 and EHEDG documents nrs 8, 13 and 44.
      • With straight edge.
      • Stainless steel, AISI 304 (1.4301) or AISI 316L (1.4404).
      • Stamped without welds, hygienic concept.
      • Complies with EN 1253.
      • With adhesive collar for connection of the waterproofing layer (membrane).
      • Telescopic extension, height adjustable and swivel n Upper edge of the extension with rubber bar (NBR, to absorb thermal expansion and as reinforcement).
      • Unique concept, no stagnant water in the body of the drain, only in the removable siphon; If the siphon is removed, the drain automatically empties. There is no risk or danger that the body of the incorporated drain will be damaged by corrosive or aggressive water.
      • Floor drain complete with siphon, waste basket, grate, grounding connection, adjustable feet.

      Grids:

      • Perforated - flat.
      • Grating - non-slip.
      • Bars - non-slip.
      • Peripheral slot - flat.

      Formats:

      • 200 x 200mm.
      • 300 x 300mm.

      Exits :

      • 75mm - horizontal.
      • 110 mm - horizontal.
      ACO
      ACO 2LET200/75H-PQ-VE

      Specific References

      EAN13
      9145385981191

      Quelles sont les déclinaisons et prix pour Telescopic floor drain - Straight edge - Glued collar - ACO ?

      Telescopic floor drain - Straight edge - Glued collar - ACO - Déclinaisons, dimensions, prix, références
      Variante format Model Grid Prix HT Prix TTC Réference EAN-13 Stock* disponible
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 75 mm Perforated CHF451.72 CHF542.06 ACO 2LET200/75H-PQ-VE 9145385981191 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 75 mm Caillebotis CHF451.72 CHF542.06 ACO 2LET200/75H-PQ-VE 9145385981092 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 75 mm Bars CHF469.85 CHF563.82 ACO 2LET200/75H-PQ-VE 9145385981085 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 75 mm With peripheral slot CHF552.13 CHF662.55 ACO 2LET200/75H-PQ-VE 9145385981108 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 110 mm Perforated CHF451.72 CHF542.06 ACO 2LET200/75H-PQ-VE 9145385981184 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 300 x 300 mm Horizontal output - 110 mm Perforated CHF646.10 CHF775.32 ACO 2LET300/110H-PQ-VE 9145385981115 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 110 mm Caillebotis CHF451.72 CHF542.06 ACO 2LET200/110H-MS-VE 9145385981177 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 300 x 300 mm Horizontal output - 110 mm Caillebotis CHF646.10 CHF775.32 ACO 2LET200/110H-MS-VE 9145385981122 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 110 mm Bars CHF469.85 CHF563.82 ACO 2LET200/110H-MS-VE 9145385981160 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 300 x 300 mm Horizontal output - 110 mm Bars CHF743.17 CHF891.80 ACO 2LET300/110H-SM-VE 9145385981139 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 200 x 200 mm Horizontal output - 110 mm With peripheral slot CHF552.13 CHF662.55 ACO 2LET200/110H-IS-VE 9145385981153 Arrivage
      Telescopic floor drain - Straight edge - Glued collar 300 x 300 mm Horizontal output - 110 mm With peripheral slot CHF805.42 CHF966.50 ACO 2LET200/110H-IS-VE 9145385981146 Arrivage
      *Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
