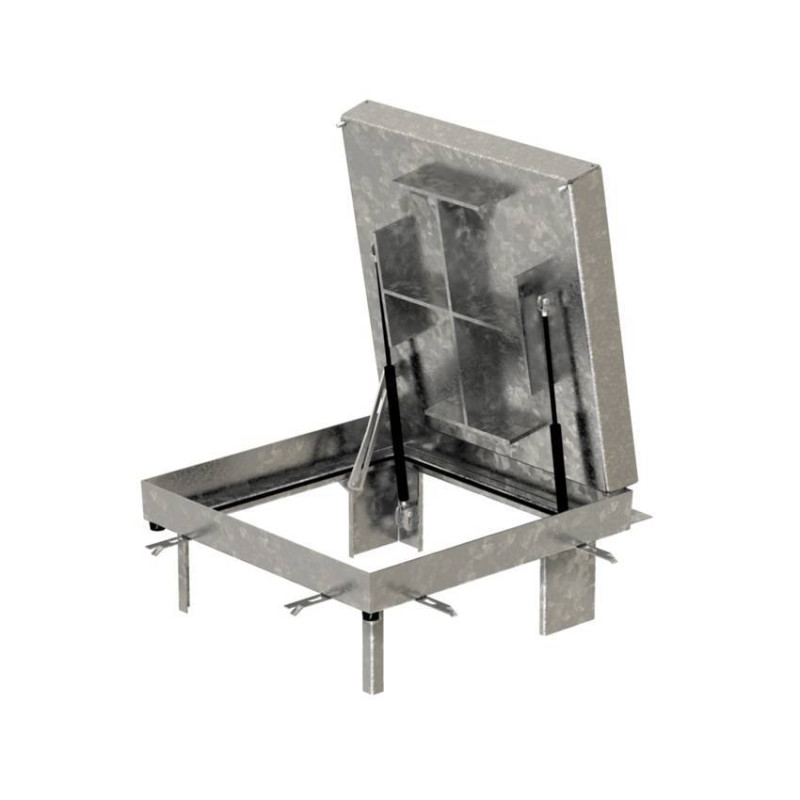

Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN - ACO
The Toptek Paving Assist GS is a hot-dip galvanized steel paving cover, hinged and assisted opening using gas cylinders , with seal. It is waterproof and odor proof and has reinforcements welded to the underside for a pedestrian resistance class. Certified class B 125 kN without additional concrete filling , according to standard EN 124.
Some variations in stock, other dimensions on order: delivery time of 3 to 6 weeks.
The gas springs are delivered separately and can only be fitted after the concrete has hardened.
ACO 414512
9145385940563
Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN - ACO
Some variations in stock, other dimensions on order: delivery time of 3 to 6 weeks.
The Toptek Paving Assist GS is a hot-dip galvanized steel paving cover, hinged and assisted opening using gas cylinders , with seal. It is waterproof and odor proof and has reinforcements welded to the underside for a pedestrian resistance class. Certified class B 125 kN without additional concrete filling , according to standard EN 124.
- Comes with lifting keys.
- Filling height: 80 mm
Features :
- Option with opening assistance
- One-man operation, hinges, gas springs (subsequently installed for safety reasons)
- Blocked by two screws
- Sealed for water and odor proofing
The gas springs are delivered separately and can only be fitted after the concrete has hardened.
| Reference | Frame dimension (mm) | Free opening (mm) | Frame height (mm) | Weight (kg) | Resistance class |
|---|---|---|---|---|---|
| 414512 | 536x760 | 400x400 | 104 | 39.1 | B125 |
| 414513 | 636x670 | 500x500 | 104 | 46.0 | B125 |
| 414514 | 736x770 | 600x600 | 104 | 54.5 | B125 |
| 414515 | 836x870 | 700x700 | 104 | 73.8 | B125 |
| 414516 | 936x970 | 800x800 | 104 | 85.1 | B125 |
| 414518 | 1136x1170 | 1000x1000 | 104 | 108.0 | B125 |
ACO 414512
Specific References
- EAN13
- 9145385940563
Customers who bought this product also bought:
Quelles sont les déclinaisons et prix pour Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN - ACO ?
| Variante | Outside dimensions | Prix HT | Prix TTC | Réference | EAN-13 |
|---|---|---|---|---|---|
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 113.6 x 117 cm | £1,384.78 | £1,661.74 | ACO 414518 | 9145385940518 |
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 93.6 x 97 cm | £1,218.94 | £1,462.73 | ACO 414516 | 9145385940525 |
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 83.6 x 87 cm | £1,007.49 | £1,208.99 | ACO 414515 | 9145385940532 |
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 73.6 x 77 cm | £887.26 | £1,064.71 | ACO 414514 | 9145385940549 |
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 63.6 x 67 cm | £729.71 | £875.65 | ACO 414513 | 9145385940556 |
| Galvanised paver cover with assisted opening - Toptek Paving Assist GS - B 125 kN | 53.6 x 76 cm | £688.25 | £825.90 | ACO 414512 | 9145385940563 |
The Toptek Paving Assist GS is a hot-dip galvanized steel paving cover, hinged and assisted opening using gas cylinders , with seal. It is waterproof and odor proof and has reinforcements welded to the underside for a pedestrian resistance class. Certified class B 125 kN without additional concrete filling , according to standard EN 124.
Some variations in stock, other dimensions on order: delivery time of 3 to 6 weeks.
The gas springs are delivered separately and can only be fitted after the concrete has hardened.
