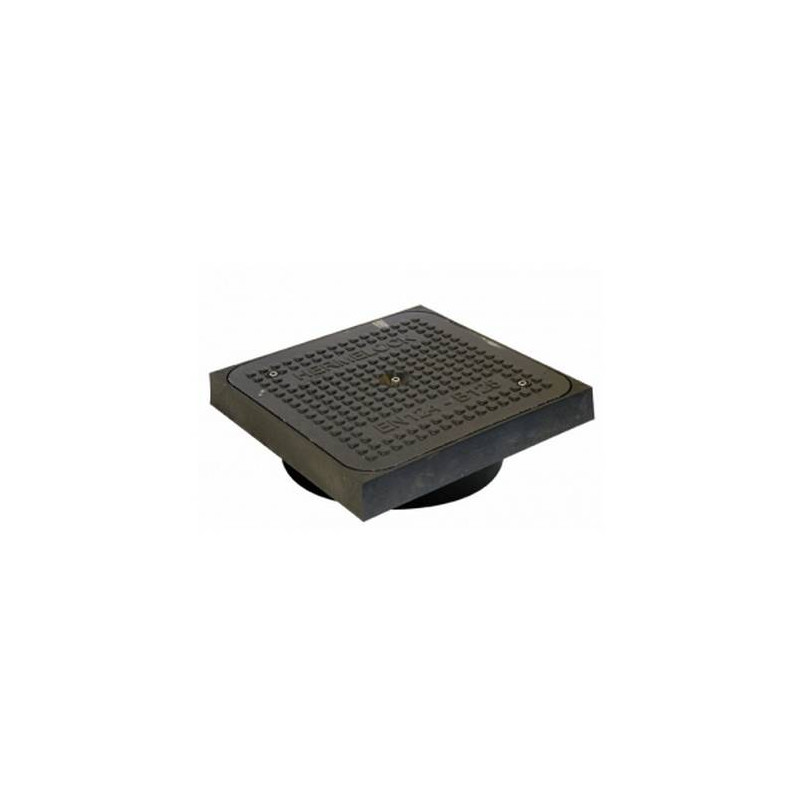

Connection look with frame B125 Hermelock

Safety manhole in B125 composite material available in 3 sizes

Lifting key available separately here .

Outside dimensions:
€284.80Tax Included
DES HE400SBR
9145385970805

Connection look with frame B125 Hermelock

Hermelock eyes consist of a lid of glass fiber reinforced polyurethane in a framework of fiberglass also reinforced polypropylene. Hermelock connection looks with frame adjustable in height (game 98 mm) ideal for installation on round rooms in PVC or HDPE plastic.

Benefits of the product:

  • Waterresistant to runoff through the double interlocking in the framework.
  • Support a charge of 125 KN according to en EN124 class B125.
  • Little noisy embossed anti-skid grounds.
  • has a double hydraulic throat.
  • 2-point locking system.
  • Color: black.

Place of installation:

Group 2, class B125 (EN124). Particularly for networks of stormwater on sidewalks, rarely driven pedestrian areas and parks.

Use of the cover:

Opening the cover

  1. Unlock the 2 bolts using a 6 mm or the KE1 key allen key by turning the screw in the opposite direction clockwise until you find a resistance and a blocking.
  2. Remove the cover using the key to lifting type KE1.

Closing the lid:

  1. Place the cover in the framework by ensuring that the gorges of the frame are clean and that the locks are properly turned in open position (opposite of the clockwise).
  2. Using a 6 mm or the KE1 key allen key, turn the screw in the direction of clockwise until resistance. Lock a then get its stop and must be slightly tight.
  3. The operation is successful and the lid is then locked.
Hermelock
DES HE400SBR

Specific References

EAN13
9145385970805
