EconoVilt HEAVY Doormat - Custom Made

HEAVY = MORE EFFICIENT

With or without a doormat frame

Please provide the external dimensions of the doormat OR the frame, we will calculate the correct measurements for everything.

CAUTION: The profiles must be installed perpendicular to the direction of travel.

If necessary, depending on the ordered depth and the width of the aluminum profiles plus the gaps (approximately 35 mm), we adjust the gap width (3, 4, 5, or 6 mm) to achieve the desired depth.

Description and composition

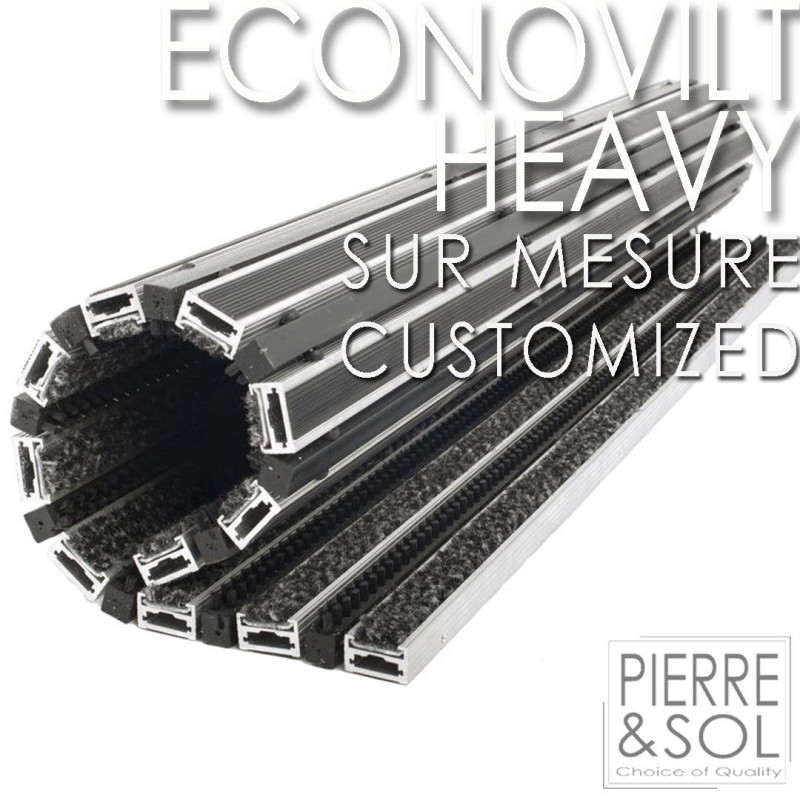

Economical and more efficient custom-made roll-up entrance mat to be recessed into a frame, composed of an aluminum support profile.

• The underside of the aluminum profile is entirely covered with sound-absorbing cellular rubber designed to prevent the doormat from slapping against the floor.
• This reinforced roll-up doormat is made of aluminium profiles containing polypropylene felt inserts.
• Black PVC spacers of 4 mm and a 2 mm stainless steel cable connect the profiles.
• The open structure ensures better absorption of moisture and dirt and allows for easy removal of dirt after rolling up the doormat.
• OPTIONAL: Colored brushes or aluminum scrapers offer better dirt retention.

This reinforced doormat is suitable for moderate to medium frequency use.

• Traffic: 1000 passages/day
• Locations: Office, shop, home
• Warranty: 2 years

The mat is custom-made and produced in a single piece, depending on the dimensions in the direction of travel. Depending on the weight, the doormat can be divided without affecting its appearance. If the width of the doormat exceeds 3 meters, the sections are laid side by side, separated by an inverted T-shaped connector.

The desired function and decor determine the design and division of the doormat.

The Economat Light has a height of 14, 19 or 23 mm and is placed in a smooth pit with a depth of 15, 20 or 25 mm respectively.

The corresponding recessed frames are made of anodized aluminum or brass.

In case the doormat needs to be placed directly on the floor, an anodized aluminum anti-scuff ramp is available.

Given the materials used, we advise against installing underfloor heating below the pit.

CHOICE OF DOORMAT COLOUR AND FABRIC

Polypropylene, Grey

Polypropylene, Anthracite Color

Polypropylene, Beige

CHOICE OF BRUSHES OR SCRAPER

For greater efficiency in retaining large dirt, mud, gravel and other residues, including on profiled soles with the aluminum scraper.

• Aluminum scraper blade, thickness xx mm
• Alternating colored nylon brush embedded in PVC strips

Scrappe Aluminum Scraper Blade

Grey nylon brush 101

Anthracite nylon brush 741

Black nylon brush 601

BROWN nylon brush 739

COCO 644 nylon brush

Green nylon brush 309

BLUE nylon brush 424

RED nylon brush 129

CHOICE OF DOORMAT FRAME

When ordering a custom-made frame, you must specify the frame's external dimensions . Our technical department will then calculate the usable dimensions of the doormat.

To compensate for the thickness of the doormat frame, it may be necessary to level the bottom of the doormat (using a leveling compound such as Egaline) or add a rubber underlay of a few millimeters; see "RUB - Rubber underlay for entrance doormats" on this page.

VER-ALU - Aluminum - Natural - Height 16 mm or 21 mm

Frames for entrance mats in aluminium colour, natural colour.

Profiles of 21 x 16 mm, 3 mm thick. Visible edge of 6 mm.

Profile height: 16 or 21 - Doormat recess height: 10 or 15.

PROMA-AN - Aluminum - Natural - Height 26 mm

Frames for entrance mats in anodized aluminum color, natural color.

Profiles of 30 x 26 mm, 3 mm thick. Visible edge of 7 mm.

Profile height: 26 mm - Doormat recess height: 22 mm.

PROMA-AR - Aluminum - Stainless steel color - Height 26 mm

Frames for entrance doormats made of aluminum in stainless steel color.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm and fixings.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-ALU - Aluminum - Natural - Height 26 mm or 31 mm

Frames for entrance mats in aluminium colour, natural colour.

Profiles of 31 x 26 mm, 3 mm thick. Visible edge of 6 mm.

Profile height: 26 or 31 mm - Doormat recess height: 20 or 25 mm.

PROMA-AZ - Aluminum - Anthracite Grey - Height 26 mm

Frames for entrance doormats in aluminum, in anthracite grey.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm and fixings.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-BLACK - Black lacquered aluminum - Height 26 or 31 mm

Frames for entrance doormats in black lacquered aluminum.

Profiles of 31/26 or 26/31 mm, with a visible upper edge of 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the frame thickness is 6 mm, you may need to use an underlay to compensate for the thickness.

PROMA-MS - Brass - Natural - Height 26 mm

Natural brass entrance mat frames.

Profiles of 30/26/3 mm, with a visible upper edge of 7 mm.

Profile height: 26 mm - Doormat recess height: 22 mm.

VER-LAI - Brass - Height 26 or 31 mm

Aluminum entry doormat frames in brass color.

Profiles of 31/26 or 26/31 mm, with a visible upper edge of 6 mm.

Profile height: 26 mm or 31 mm - Doormat recess height: 20 mm or 25 mm.

Please note, the frame thickness is 6 mm, you may need to use an underlay to compensate for the thickness.

Technical details:

Textiles:

• Textile height: 5 mm
• Textile width: 25 mm. Textile base width: 27 mm
• Drying insert material: 100% polypropylene
• Textile structure: ribbed
• Colors: anthracite, grey and beige (light)

Aluminium profiles:

• Profiles: Height 15 mm (without scraper or brushes) or 19 mm. Width 30 mm. Aluminium (min. 78% recycled). Spaced at +- 4 mm.
• Connecting parts: Black rigid PVC spacer - Crack resistant black GST66901 PE LD
• Accessories: DIN916A2 M4x8 stainless steel bolts. PVC (10 mm) or aluminum finishing plates. DIN7982 A2 C2 stainless steel screws, 9x13 H

The weight of the Economat Heavy is respectively 14 or 15 kg/m2 for the two heights.

Tests:

In collaboration with Ghent University.

• Fire test: The doormat corresponds to category Dfl (impregnated version: Cfl) in the direction of travel, in accordance with EN ISO 11925-2 and EN ISO 9239-1.
• Smoke test: The doormat corresponds to category S2 (impregnated version: S1)
• Lightfastness: Resistance to photodegradation. Produced according to ISO 105 B02(1994) with a result in category 6-7, where category 8 is the best result (2002).
• Wronz Test: Heavy wear test. The doormat achieves a value of 25,000, i.e., the equivalent of 500,000 to 1,200,000 uses. We can provide test reports 02-796C, 02-797C, and 02-798C.
• Static load test: There are no restrictions on the load caused by normal traffic, trolleys, and wheelchairs. For heavy traffic, rotating movements should be avoided; otherwise, the manufacturer always recommends using a protective panel.

Fire and smoke tests were carried out according to the EN 13501-1 (2007+A1:2009) classification. The products were not impregnated or treated with a coating; these are simply inherent characteristics of the materials used.

Ecological footprint:

1. The manufacturer is committed to reducing the environmental footprint of its product production.
2. For this reason, the products are manufactured using 100% renewable energy and locally sourced materials. Most of the materials used to produce this doormat are reusable and can be given a new life.
3. FAQ - Frequently Asked Questions
4. Is the EconoVilt Heavy doormat suitable for outdoor use?
   Yes, it is perfectly suited to covered or semi-covered entrance areas. For permanent exposure to the elements, we recommend checking the exact configuration with our advisors.
5. Can it be recessed into a floor opening?
   Yes, the custom-made model is ideal for installation in a frame or a space specifically designed for this purpose.
6. What is the difference between this and a regular doormat?
   The EconoVilt Heavy is distinguished by its aluminum structure (much more resistant), its intensive use, its custom manufacturing, and its significantly superior durability.
7. Is it non-slip?
   Yes, thanks to its weight, rigid structure and installation (freestanding or recessed), it offers excellent stability.
8. How to order custom-made items?
   Simply measure the desired width and length precisely. Indicate the dimensions when placing your order or requesting a quote. Confirm the custom manufacturing.
9. What is the manufacturing lead time?
   Custom-made products require a specific manufacturing time. This depends on the dimensions and quantities ordered.
