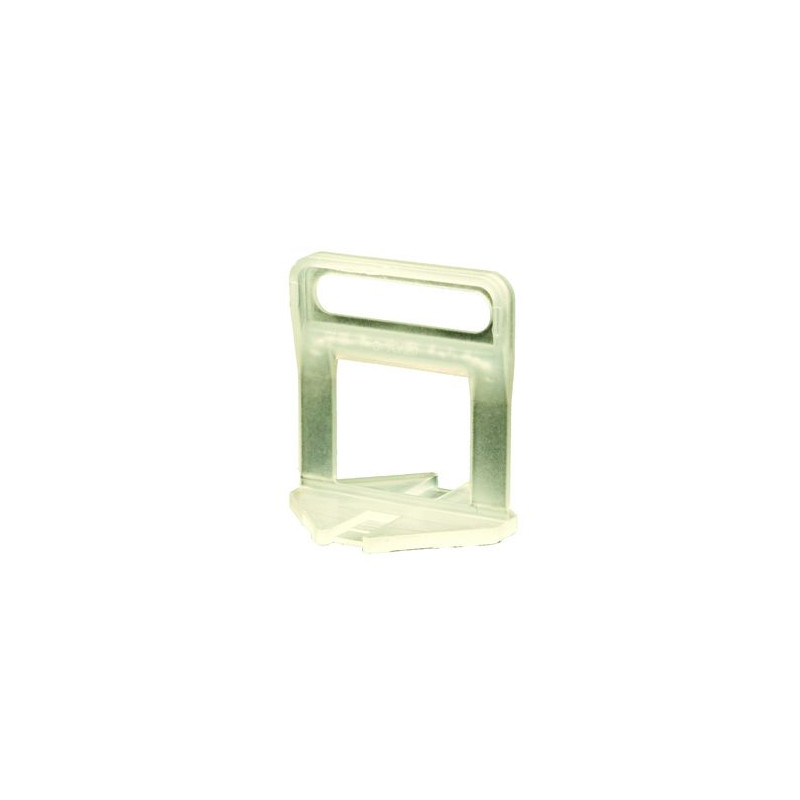

Levelit Leveling Clips 1 - 1.5 - 2 - 3 - 4 mm

Levelit Leveling Clips 1 - 1.5 - 2 - 3 - 4 mm

Professional spacer clips allow you to align all tiles and at the same time ensure perfect spacing of the joints between them.

• Clips specially designed for large format tiles
• The specific design ensures a perfect break at the foot
• The exclusive use of premium plastic granules ensures very stable quality

6-12 mm clips

Can be used for tiles with a minimum thickness of 6 mm up to a maximum of 12 mm .
For very thin tiles < 6 mm, a corner separator should be used.
This one is slipped under a wedge.

XL clips of 15-25 mm and 22-30 mm

These leveling clips with a joint thickness of 2Lmm or 4Lmm are longer, which allows them to be used for tiles with a thickness between 15 and 25 mm.
Ideal for laying patio slabs.

These leveling clips with a joint thickness of 3Lmm are longer, allowing them to be used for tiles with a thickness between 22 and 30 mm.
Ideal for laying patio slabs.

Facility :

Step 1: Slide the clips under the tiles

After the glue is applied, the clips are slid under the tile.
You place one or more clips per side depending on the tile format.
Position the tile by tapping it with a mallet.

• Place the adjacent tile after positioning the spacers.
• Depending on the dimensions of the tile, it may be necessary to use several spacers on each side.
• The use of a minimum of two spacer clips per side is recommended for tiles larger than 20 cm.

Step 2: Slide the wedges under the clips

Slide the wedge into the opening of the cross brace.
Carefully insert the wedges into the clips without exceeding the breaking point.

Step 3: Push the wedge in completely using the adjustment pliers.

Push the wedge with the pliers all the way in and tighten it to level the tile.

Step 4: Remove the clip

Allow 24 hours for drying after this application!
Once the glue is completely dry and hardened, the still visible part of the crossbars must be removed.

To do this, you need to cut the upper part of the cross braces with a mallet or with your foot by striking the cross brace with its wedge in the direction of the joint.
The caps are reusable by unscrewing them from the clips.

CAUTION, do not break the clips with the counter joint.

Usage tips

The number of clips and spacers required depends on the size of the tiles.
The quantity of Levelit depends on the size of the tile (A x B) and can be deduced by consulting the table provided.

Possible joint width:

• 1 mm
• 2 mm
• 3 mm
• 4 mm

Packaging:

100, 250, 500, 1500 and 2000 pieces

Videos and examples of installing leveling clips for tiles

__ETS_EMBED_Mg==__

FAQ - Frequently Asked Questions

1. Are Levelit spacers reusable?
   No, the clips are for single use only. They break after drying to ensure optimal leveling.
2. Is a leveling clamp absolutely necessary?
   It is highly recommended for precise and quick application, especially on large formats.
3. Can Levelit be used with thick tiles?
   Yes, the system is compatible with most standard tile thicknesses.
4. Is it suitable for wall mounting?
   Yes, absolutely. It holds the tiles in place while the adhesive sets.
5. Can it be used outdoors?
   Yes, especially for terraces and balconies, with a suitable adhesive.
