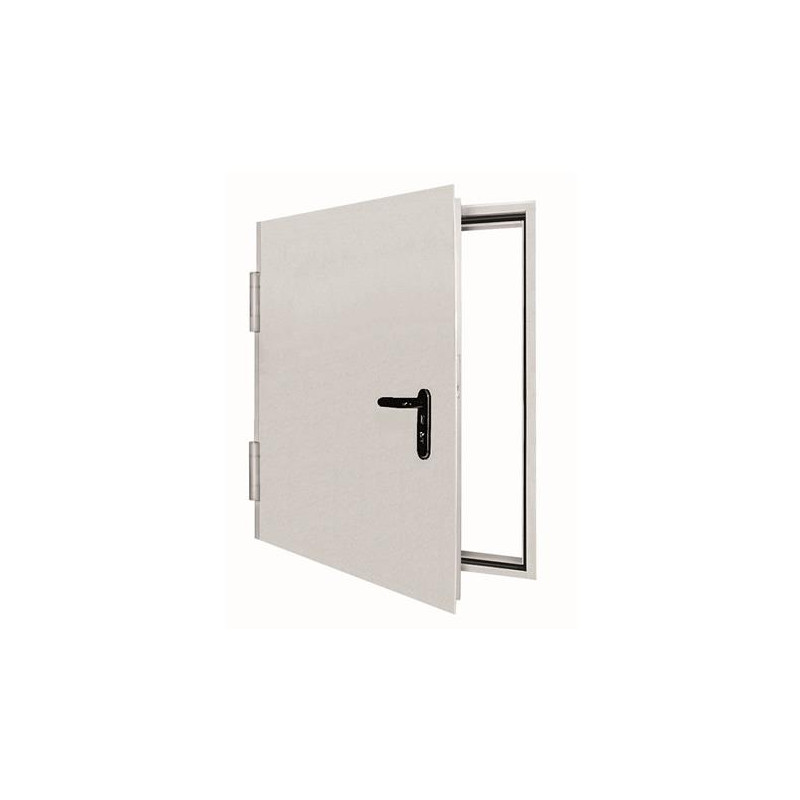

      Fire-resistant wall inspection hatch - ST - LINE ECO
      • Fire-resistant wall inspection hatch - ST - LINE ECO

      Fire-resistant wall inspection hatch - ST - LINE ECO

      Fire protection wall hatches are tested in accordance with NEN 6069 / EN 1634-1. Double-walled galvanized wall-mounted access hatch primed in RAL 9002.

      Model:
      Installation dimensions:
      Fire resistance:
      CHF1,496.05Tax Included
      LE-ST66-30-R
      9145385995341

      Fire-resistant wall inspection hatch - ST - LINE ECO

      Fire protection wall hatches are tested in accordance with NEN 6069 / EN 1634-1. Double-walled galvanized wall-mounted access hatch primed in RAL 9002.

      Fire protection wall hatches are tested in accordance with NEN 6069 / EN 1634-1.

      Features :

      • double sided
      • total thickness: 62 mm
      • sheet thickness: 1.0 mm
      • insulation: mineral wool
      • peripheral corner frame: thickness 1.5 mm
      • screw fixing
      • 1 construction hinge with ball bearing
      • 1 spring hinge
      • choice: left or right hinge
      • Mortise lock with bolt according to DIN 18250, prepared for europrofile cylinder
      • Black plastic handle and rosette assembly with cylinder and barbed key (this cylinder and barbed key are for the construction phase only and must be replaced afterwards).

      Models:

      • 30 minutes fire resistance
      • 60 minutes fire resistance
      • 120 minutes fire resistance: AVAILABLE ONLY UPON REQUEST

      Dimensions:

      Reference Interior dimensions

      Installation dimensions

      (Size of opening in wall)
      Fire resistance 30 minutes
      ST66-30 516 x 516mm 600 x 600mm
      ST68-30 516 x 716mm 600 x 800mm
      ST88-30 716 x 716mm 800 x 800mm
      ST110-30 916 x 916mm 1000 x 1000mm
      Fire resistance 60 minutes
      ST66-30 516 x 516mm 600 x 600mm
      ST68-30 516 x 716mm 600 x 800mm
      ST88-30 716 x 716mm 800 x 800mm
      ST110-30 916 x 916mm 1000 x 1000mm
      LINE ECO
      LE-ST66-30-R

      Specific References

      EAN13
      9145385995341

      Quelles sont les déclinaisons et prix pour Fire-resistant wall inspection hatch - ST - LINE ECO ?

      Fire-resistant wall inspection hatch - ST - LINE ECO - Déclinaisons, dimensions, prix, références
      Variante Model Installation dimensions Fire resistance Prix HT Prix TTC Réference EAN-13 Stock* disponible
      Fire-resistant wall inspection hatch - ST Hinge on the right 1000 x 1000 mm 60 minutes CHF1,929.69 CHF2,315.62 LE-ST110-60-R 9145385995419 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 1000 x 1000 mm 30 minutes CHF1,360.54 CHF1,632.65 LE-ST110-30-R 9145385995402 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 800 x 800 mm 60 minutes CHF1,870.06 CHF2,244.07 LE-ST88-60-R 9145385995396 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 800 x 800 mm 30 minutes CHF1,306.33 CHF1,567.60 LE-ST88-30-R 9145385995389 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 600 x 800 mm 60 minutes CHF1,842.96 CHF2,211.55 LE-ST68-60-R 9145385995372 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 600 x 800 mm 30 minutes CHF1,279.23 CHF1,535.08 LE-ST68-30-R 9145385995365 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 600 x 600 mm 60 minutes CHF1,815.86 CHF2,179.03 LE-ST66-60-R 9145385995358 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the right 600 x 600 mm 30 minutes CHF1,246.71 CHF1,496.05 LE-ST66-30-R 9145385995341 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 1000 x 1000 mm 60 minutes CHF1,929.69 CHF2,315.62 LE-ST110-60-L 9145385995495 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 1000 x 1000 mm 30 minutes CHF1,360.54 CHF1,632.65 LE-ST110-30-L 9145385995488 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 800 x 800 mm 60 minutes CHF1,870.06 CHF2,244.07 LE-ST88-60-L 9145385995471 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 800 x 800 mm 30 minutes CHF1,306.33 CHF1,567.60 LE-ST88-30-L 9145385995464 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 600 x 800 mm 60 minutes CHF1,842.96 CHF2,211.55 LE-ST68-60-L 9145385995457 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 600 x 800 mm 30 minutes CHF1,246.71 CHF1,496.05 LE-ST68-30-L 9145385995440 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 600 x 600 mm 60 minutes CHF1,815.86 CHF2,179.03 LE-ST66-60-L 9145385995433 Arrivage
      Fire-resistant wall inspection hatch - ST Hinge on the left 600 x 600 mm 30 minutes CHF1,246.71 CHF1,496.05 LE-ST66-30-L 9145385995426 Arrivage
      *Stocks disponibles, sauf erreur ou omission, en nos entrepôts de Lille (France) ou Tournai (Belgique), livraison en 24h/72h - Enlèvement gratuit - Expédition à partir de 4,99 € en France, 3,99 € en Belgique selon poids, délai et transporteur.
