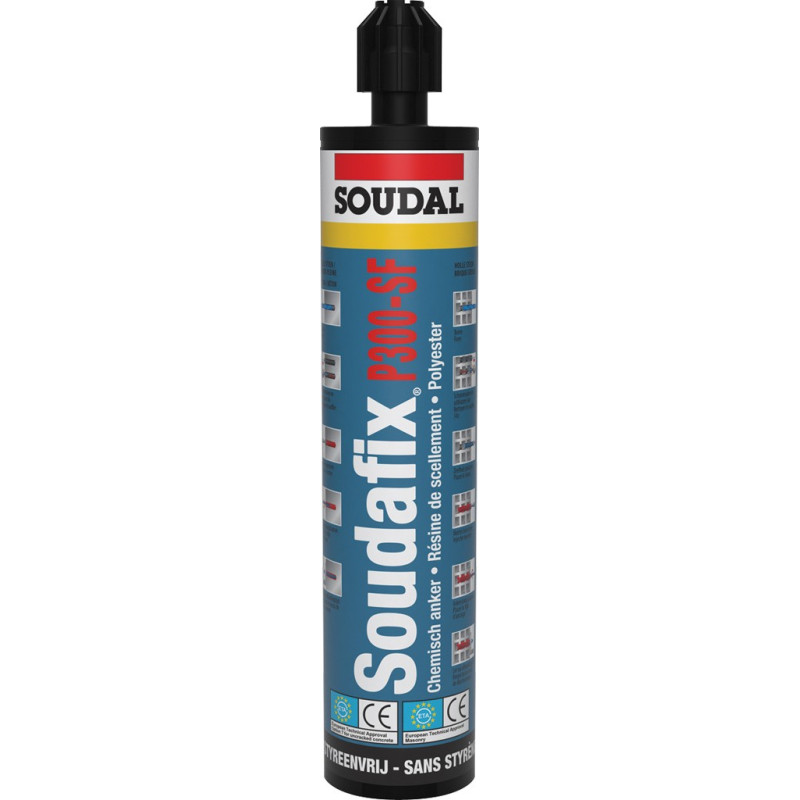

Soudafix P300-SF - Chemical anchoring - Soudal

Soudafix P300-SF - Chemical anchoring - Soudal

Soudafix P300-SF is a 2-component polyester anchoring resin. Ideal for stress-free fixing of threaded rods in solid (ETA: M8-M24) and hollow (ETA: M8-M16) substrates such as uncracked concrete, solid brick, hollow brick, aerated concrete, natural stone, and plasterboard walls. Use with a standard caulking gun.

Features :

• Easy to apply and use with a standard silicone gun.
• Fast hardening. Styrene-free (low odor).
• Wide range of application, including wet and underwater boreholes.
• Reuse of the cartridge by simply exchanging the mixing nozzle.
• Ideal for anchoring in hollow brick in combination with sieves.
• Water-resistant and waterproof fixing.
• European Technical Approval option 7 for application in uncracked concrete.
• European Technical Approval for application in masonry.

Applications:

• Anchoring heavy loads in solid building materials and medium loads in hollow materials.
• Unrestricted anchoring near edges.
• Can be used as a repair mortar

Instructions for use:

• Drill the hole according to the specifications (depth, diameter).
• Clean the hole with a brush and then blow through it.
• Screw the mixing nozzle onto the cartridge.
• Extrude the first 10 cm onto cardboard until the mixture is homogeneous (uniform dark grey color).
• Concrete or solid brick: fill the bottom borehole by slowly removing the static mixer.
• Hollow brick: insert the sieve and fill from the bottom while slowly removing the static mixer, so that the product is pressed through the holes in the sieve.
• Introduce the anchoring by a left-to-right rotation movement.
• Check that the borehole is properly filled. Observe the open time and curing time.
• Do not move the anchor during the curing time, allow the excess product to harden.
• It can be easily removed after hardening with a hammer and chisel.
• Secure the object.
• Consult the technical data sheet for more information.

Packaging:

• 280 ml cartridge

FAQ - Frequently Asked Questions

1. Can the Soudafix P300-SF be used outdoors?
   Yes, it is perfectly suitable for outdoor use after hardening, provided the surface is sound and clean.
2. Can it be used in a wet hole?
   Yes, the product tolerates moisture, but the hole must not be filled with stagnant water.
3. Is it compatible with stainless steel threaded rods?
   Yes, the Soudafix P300-SF is compatible with zinc-plated, stainless steel and galvanized steel rods.
4. Do I need a specific gun?
   No, the 300ml cartridge is compatible with a standard silicone gun.
5. What is the difference with an epoxy sealant?
   Polyester (P300-SF) is faster and more economical, ideal for general fixings. Epoxy is reserved for very heavy loads and cracked concrete.
6. Can the attachment be loaded immediately?
   No, it is imperative to respect the curing time before any load is applied.
7. Does the product have a strong odor?
   No, it is styrene-free, so much more comfortable to use indoors.
8. Is a partially used cartridge reusable?
   Yes, provided that the mixing nozzle is changed before the next use.
