Gully body - Top Showerpoint - ACO

Gully body - Top Showerpoint - ACO

The design grids of our shower gutters inspired us to give the same looks to Top Showerpoint floor siphons. The lower case is made of synthetic material, the top consists of a synthetic enhancer with a visible frame and a built-in grid in electrolysis polished stainless steel. Instead of evacuating water to a gutter line, the drain is done to a point, even though both systems can be used perfectly in the same room. Especially now that they are coordinated in terms of design.

Evacuation capacity complies with the European standard EN 1253.
3 swallowing bodies available:

• PP-H siphon body with vertical output DN 50 (50 mm)
  With a fully removable 50mm water guard, making cleaning easier
  Evacuation capacity: 1.5 l/s
  Height 167 mm
• PP-H siphon body with side exit DN 50 (50 mm)
  With a fully removable 50mm water guard, making cleaning easier
  Evacuation capacity: 1.0 l/s
  Height 102 mm

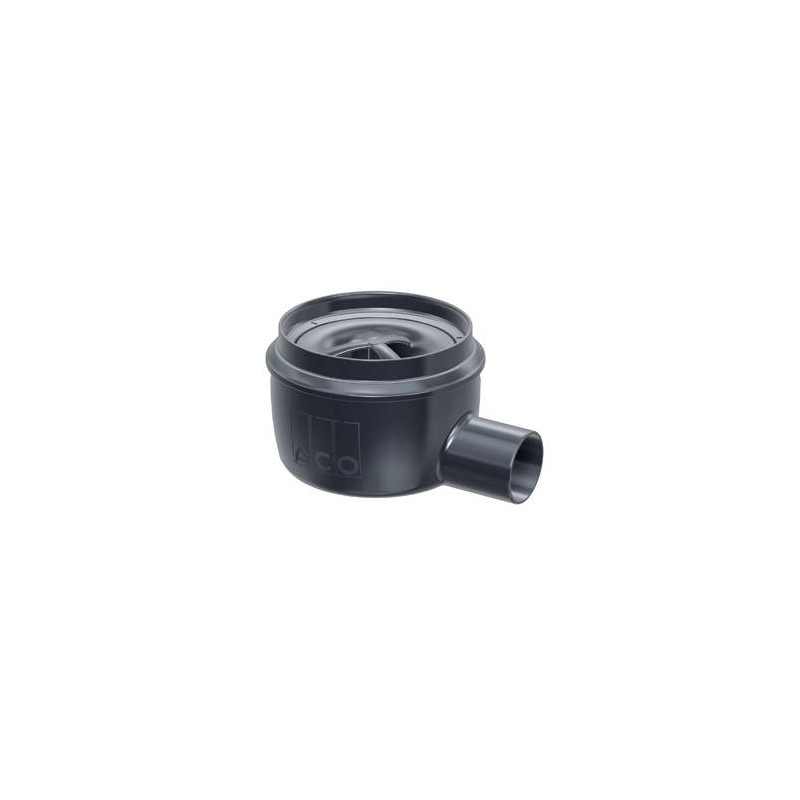

• Flatline siphon body in PP-H with side exit DN 50 (50 mm)
  With a fully removable 30mm water guard, making cleaning easier
  Evacuation capacity: 0.8 l/s
  Height 82 mm
